ECO-WORTHY 200 Watt (2pcs 100 Watt) Monocrystalline Solar Panel Complete Off-Grid RV Boat Kit with LCD Charge Controller + Solar Cable + Mounting Brackets
How to efficientive Install ?
- In an ideal home or industrail solar installation, your home would have a large, sunny, south-facing roof with a 20~30-degree pitch. Solar panels can be installed on most roofs so you can save on your electricity costs and help the environment, too.
- Quick Installation
- Save Electricity Costs
- Renewable Energy
- Backup for power outage
100W Solar Panel
High Efficient Monocrystalline
- Short circuit current (Isc)：6.67A
- Output Tolerance：±3%
- Temperate coefficient of Isc：(010+/- 0.01 ) %/℃
- Temperate coefficient of Voc：- (0.38 +/-0.01 ) %/℃
- Temperate coefficient of power Voc：-0.47%/℃
- Temperature range：-40℃to +80℃
- Frame：Heavy duty aluminum
- Kind of glass and its thickness：Low Iron, high transparency tempered glass of 3.2mm
- Size:39.8×20.1×1.4 in(1010mm*510mm*35mm)
- Weight:18.96lbs(8.6kg)

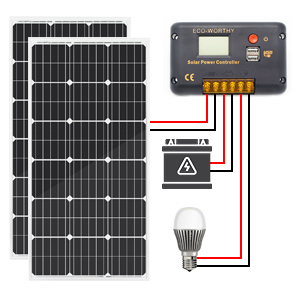

20A Solar Charge Controller
- Battery voltage :12V/24V auto
- Charge current :20A / Discharge current :20A
- Max Solar input :<50V / Charge voltage :13.7V
- Discharge stop :10.7V
- Discharge reconnect :12.6V
- USB output :5V/2A
- Self-consume : <15mA
- Operating temperature :-20~+60 ℃
- Size/Weight :138*85*30mm /150g
- Install hole size :124*50mm
| | | |
|---|---|---|

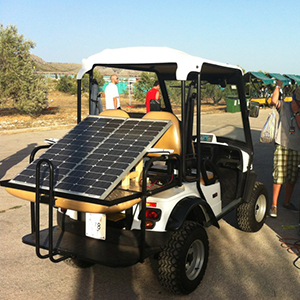

| This 100W Mono solar panel with its high power output and the robust design the right solution for a stand-alone system. Service life over 25 years. shock resistance 2400pa and wind 5400pa snow loads. | Wide application: Perfect for on-grid, off-grid solar panel system, caravan, RV, boat, Green house solar panel system. Multiple protection: 20A solar charger controller with build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection. | Easy Installation: With pre-drilled hole,can be install on the roof or on the earth by adjustable solar panel tilt mount brackets. Each solar panel comes with 90cm 12awg cable with MC4 Male/Female quick connectors.Connect order please connect 12v/24v battery with controller first, it will automatically to 12v/24v depends on battery voltage |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Daily Output | 960W | 1440W | 960W | 1440W | 480W | 2000W |
| Number of Panel | 2 pcs | 3 pcs | 2 pcs | 3 pcs | 1 pc | 1 pc |
| Controller Type | 20A | 60A | 20A | 60A | 20A |
| Dimensions: | 106 x 55.37 x 7.87 cm; 13.42 Kilograms |
| Model: | L02M100N-LCWMZ-2 |
| Manufacture: | ECO-WORTHY |
Prodotto arrivato in tempi rapidi e tutto il kit stato installato facilmente da mio marito. Eravamo un po’ titubanti sul controllore PWM e lo volevamo cambiare con uno di marca pi famosa… ma tant’, ancora li, perch funziona e ha reso completamente autonomo il camper (installato insieme ad inverter e batteria victron, pi barra di distribuzione, preso tutto su amazon). Acquistati insieme alle staffe per tetto della stessa marca. Siamo rimasti molto contenti del prodotto, infatti quest’anno abbiamo comprato altri 2 pannelli dello stesso venditore. Inoltre il venditore, contattato per un problema durante la consegna, ha risposto in tempi rapidissimi e risolto immediatamente il problema. Attenzione a controllare i pannelli quando il corriere li consegna.
I live in an area that can have loss of mains power in the winter and have to a machine on all night. This with battery and inverter is my back up plan.
Use the card that it’s delivered in to cover the panels until all is connected as I had a black towel over one and it was still producing power.
Easy to install
One of the instruction manuals is far to small reading glass needed for the print using it to provide power for garden lighting
Have replaced my 50watt panel with 2 100 watt Eco-worthy panel. Perfect in every way.
4 out of 5 for ease of fitting . 5 out of 5 for uncomplicated instructions with an easy to understand leaflet and display..All good
Easy to install, works absolutely fine, just what I needed.
These panels are great.. Bought for campervan and they were very easy to install and come with everything you need!
GOT WHAT I EXPECTED AND ON TIME, VERY HAPPY WITH BANGGOOD
Monter sur le toit de ma cabane de jardin avec un onduleur et une batterie. Super !
This system is a great starter pack for getting into solar panels systems. I purchased this system as a proof of concept to understand solar panel systems, and I still use it today. I wanted to power my shed with solar/battery power and run a few 24V LED lights in my garden throughout the night. This was a perfect setup for the price.
Granted you only get 100W solar panels, but they are a perfect size if you want to add them to the roof of an RV or the roof of a shed in my case. It is only a PWM charge controller, but for the price you pay, it is still worth it. You get all the cables needed to set the system up, all you need is a battery to store the solar panel’s energy and you are good to go (there are several other things I would recommend buying, such as a battery monitor and fuses etc., but the system being sold will get you started).
If, however, you want a solar panel battery bank system to power high voltage devices for long periods of time, you will need an inverter and this will use up your battery power very quickly so I wouldn’t recommend this size system. You would need to get a bigger system with more solar panels and a better charge controller – ECO WORTHY has other larger systems to choose from, if required.
I have my 2 x 100W solar panels connected to my charge controller in series and my charge controller connected to my 24V battery bank. My solar panels gets the sun in the morning and charges my batteries back to 100% after it has dropped to 95% over night whilst powering my 24V LED garden lights. This is all that I ask of this solar system. My other 4 x 350W solar panels are used to charge my batteries around midday when the sun moves into place, this is when I use my battery bank to power high voltage appliances via an inverter.
I would recommend this small solar setup for small low power devices or larger high voltage devices for short periods of time via an inverter as it is a great starter pack for the price.
Arrivato con1 pannello con alluminio un po’ ammaccato ma pu andare lo prover far recensione
Salve, il kit fornito senza fili da controller a batteria, il bipolare che sezione deve avere per 3 metri di lunghezza? E poi, conviene e si pu collegare a 2 batterie? Ringrazio per le dritte!
I’m using these to provide power to my man-cave (garden shed !) and they’re perfect – even in the depths of winter they’re providing enough current to keep my batteries trickle charged.
Fitting and Assembly couldn’t be easier it’s as simple plug and play.
As for my order – Everything arrived on time and as advertised, I have no complaints whatsoever.
Colis arriv impeccable sans casse. tout tait l’intrieur. Conforme mon attente. Il manque plus qu’ l’installer les panneaux.
Good cost effective way to try out solar power to an old car battery.
Best I’ve seen, is 285Watthour, cloudy day yields about 25Wh
Worth buying a watt meter to see what it is producing.
Sono arrivati con pezzi mancanti ma il rivenditore ha provveduto a mandare subito in pi mi ha sostituito una centralina che dopo un po’ non funzionava pi ottimo consigliato onesto ora funziona tutto bene i panelli riescono a caricare anche 48 ah sole forte ottimo
(Les ports USB fonctionnent bien, je pensais pouvoir les utiliser sans passer par une batterie, ce n’est pas le cas, il faut obligatoirement une batterie…)
Petit retex, le voltage affich et plutt prcis, je l’ai compar rgulirement avec 2 multimtres diffrents
Sent in two seperate packages so beware if, like me, you bought this on prime expecting to have everything within a couple of days. Solar panels arrived quickly but charge controller, cables and mounting brackets arrived a week later. Rather annyoing. The panels and cables themselves seem good and are very easy to install. The charge controller is basic and wont take an 8 gauge cable. Overall 4/5
Ottimo prodotto. Abbiamo avuto solo un problema col regolatore che ci stato sostituito in 2 gg dalla ns comunicazione. Pannelli super efficienti anche in assenza di sole. Da consigliare!!!
Articolo arrivato velocemente tutto come descrizione ben imballato…PROVER nei prossimi giorni
Had everything needed to install for caravan. Managed a weekend away and kept battery topped up
Appeared to work after installation but 2 months later battery not charging and supplier not receiving Amozon emails, awaiting to see if they monitor this.
Update 1.
Vendor has got in touch and is replacing the controller, looking good. Let’s see if it works, will keep you updated.
Prima product, en snel geleverd!
Bij levering bleek er 1 connector van het bijbehorende kabeltje afgebroken.
2 mailtjes heen en weer, en er werd keurig een nieuw setje kabels na-gestuurd! Prima service dus!
The solar panels seem fine and were producing a good flow of power to the two batteries wired in parrallel but then the controller became very hot and stopped working. Eco-worthy provided a replacement and all seems to be working fine now. Very nice system.
Facili da installare. Per i miei consumi mi danno la piena autonomia elettrica. ( in estate)
montaggio facile intuitivo, i pannelli funzionano bene mentre il regolatore carica bene ma il dispay nn funziona
Was a little concerned, as some reviews had stated items were missing. But all turn up as described and works perfectly.
Livraison rapide. Le colis est arriv complet et sans dommage. Les panneaux ne seront monts que la semaine prochaine, mais ils ont pass la primo-inspection haut la main.
I decided to install these panels myself, not a quick job but fairly easy if or are competent. Unfortunately I had some issues with the controller but I’m still giving this 5 stars as this was resolved and a new one sent ou
Very quick delivery, took two days to arrive. Looks a good piece of kit. Not fitted as yet but all checked and complete.
This is an excellent product, really good amount of power, really easy to install and is made very well.
It’s also excellent value.
Customer service is also Excellent, really nice people to deal with, always happy to help with any inquiry you may have. I have purchased several items now and all are great quality and value.
Good quality produc
The best thing I ever spent money on. One year on. Very happy.
livraison en deux fois , mais produit conforme a la description , plus qu’ poser , le vendeur rpond vite aux demandent de renseignement ce qui est super , merci je recommande
Controller is not working the rest is very good dollar brackets are useless you need to build custom ones. Controller is been replaced by selle
Tutto ben spiegato e facile da montare per non spiegato quale inverter abbinare.??
The panel mounting brackets need to be better for shed Roofs. Not good for more than one panel.
Unfortunately the y pieces needed to join the 2 panels where missing and I had to buy elsewhere. The seller has promised to reimburse me the cost of the missing parts. The kit itself seems good quality, it comes with stainless steel bolts for the panels. Will be trying it out over the weekend.
*Update* The seller made good on their oversight and sent out the missing parts without issue. Changed from a 1 star review to a 4 star. Only missing the last star due to not receiving everything the day I expected it which is the whole reason I pay for my Prime subscription. As for the setup itself, very easy installation, surprisingly good instructions manual that was clearly written by someone with excellent English and a very good understanding of solar systems that came with it too. Very impressed with that alone. As others have said, the panels really do provide power in even the bleakest of conditions and I have absolutely no regrets about my purchase. The only change I plan on making is replacing the solar charge controller as this PWM one has no customisation options and only has an output of a maximum of 13.8V. I need 14.4V to properly fill and maintain my batteries. Still, worth every penny and then some.
Finalement le rgulateur est arriv et a fonctionne trs bie
Perfect not to little not to much.
Irish summer 24 hours power on the boat.
Am totally surprised.
More than expected.
