iozon Monitor and Laptop Mount, 2-in-1 Adjustable Dual Monitor Arm Desk Stand, Single Gas Spring Arm with Laptop Tray for 12-17″ Laptop. Single Arm Stand/Holder for 17-32″ Computer Monitor(3L ProS)
Specifications:
Normal arm:
•Arm length: First arm: 22.6cm/8.9” , second arm: 25cm/9.8”
•Adjust the maximum distance horizontally: 52cm/20.5”
•Height range: 19-42cm/7.5-16.5″
Gas spring arm:
•Arm length: First arm: 22.6cm/8.9” , second arm: 33cm/13”
•Height range: 7.6-58cm/3-22.8″
Apply to:
1. 17″ to 32″ Monitor (VESA : 75x75mm, 100x100mm)
•Bracket: Rotates 360°, Tilts -55°~ +90°
•Weight Capacity: 9kg/19.8lbs
2. 12″ to 17″ Laptop
•Bracket: Rotates 360° , Tilts 45°
HIGHLY COMPATIBILITY WITH C CLAMP
1.The thickness range of the table using the standard c clamp mounting method is 1.5-6cm/0.6 “-2.36”.
2.If your desktop is thicker than 6cm/2.36 “, you can modify the hole position of the clip , the maximum MATCH desktop thickness under 7cm/2.76 ”
3.The desk edge should be larger than 8cm/3.15″ from inside clamp to outside clamp.
Two installation methods
Multi-range clip-on type: requires a desk with a standard thickness of (0.6″-2.36″)1.5cm-6cm
if you want to match more thicker desktop, You can modify the clip hole position to reach 2.76”

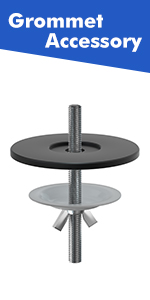

Hole type: requires a hole diameter ≥ 2.76″ (7cm). Please check installation video at video block for more details.
| | | |
|---|---|---|

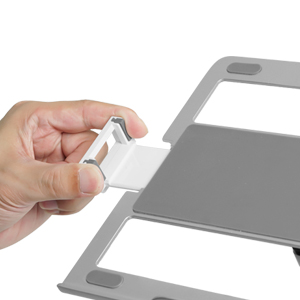

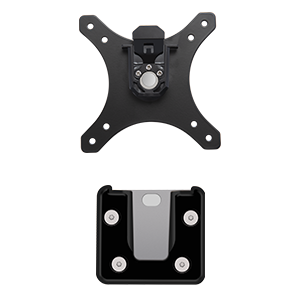

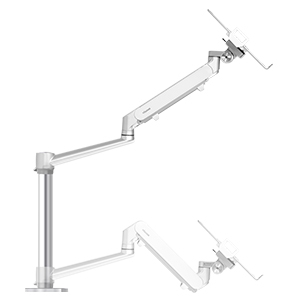

Height AdjustableHigh quality gas spring arm supports to switch standing & sitting mode, provide a new working experience for you. Height range: 7.6-58cm/3-22.8″. If you find it’s slightly shaking when using standing mode, please move arm’s joint on main pole to a lower position. | Quick VESAQuick Release VESA plate makes monitor installation and removal fast and easy. | High-quality laptop plateOur laptop plate design is all about fashion and modernity The overall notebook board is the best aluminum alloy material in the world Flexible adjustable laptop holder are great for grabbing your laptop. |
 |  |  |  |  | |
|---|---|---|---|---|---|
| Compatible Monitor | 17-32″ | 17-32″ | 17-32″ | ||
| Compatible Laptop | 12-17″ | 12-17″ | 12-17″ | 12-17″ | |
| Desk Thickness(C-Clamp) | 1.5cm-6cm | 1.5cm-6cm | 1.5cm-6cm | ||
| Hole Diameter(Hole Type) | 7cm | 7cm | 7cm | ||
| Arm Capacity | 8.5kg | 8.5kg | 8.5kg | Suitable with Viozon Desktop Series Only | Suitable with Viozon Series Only |
| Dimensions: | 43 x 32 x 12 cm; 1 Kilograms |
| Manufacture: | viozon |
| Origin: | China |
| Reference: | UK-3L ProS |
Let me start by saying its a fantastic product, this is my third desk arm, this by far takes the win.
I would like to speak to the product owners, there is a slight issue with the laptop arm, its not level, and this is especially annoying when you are at the standing mode. Is there any solution?
I use a ultrawide Samsung monitor and a Dell XPS 15.
Perfect!
This is excellent just one problem it suggest that you can move the arms up and down. Now you can but you have to unscrew and and screw back in to move rather then being on a pivot arm. But good motion side to side
