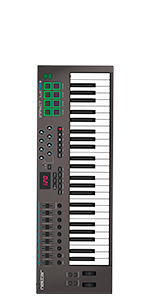

Nektar Impact LX49+ USB MIDI Keyboard Controller with Nektar DAW Integratio

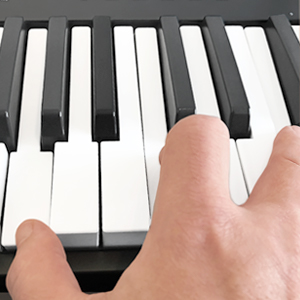

KEYBOARD

The Impact LX+ has a 49 note, full-size velocity sensitive keyboard and lets you choose between 4 velocity curves that cater for different playing styles including a soft and hard touch. Dynamic and expressive, it is calibrated for all styles of music.

Dedicated buttons for octave and transpose buttons as well as pitch bend & modulation wheels are within reach, so you can quickly shift the keyboard or apply additional articulation as needed. Better still, the 4 buttons can be assigned to control additional functions such as Global MIDI channel, MIDI program or LX+ user preset select.

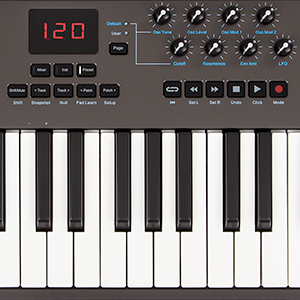

POWERFUL CONTROL CENTER

Impact LX49+ features 26 programmable real-time controls: 9x 30mm faders, 9x MIDI buttons and 8x potentiometers. Each control is fully programmable to send unique MIDI messages and can be stored in any of the 5 user presets. So you can control up to 5 different devices and switch between them seamlessly, in addition to DAW integration. If you switch “Null” on, any parameter values are stored when you change presets so you avoid parameter jumping.

Used with Nektar DAW integration, the control options increase substantially, providing flexible pre-mapped DAW control giving you the best of both worlds.

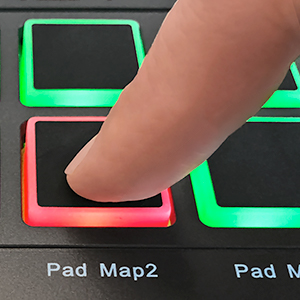

PADS FOR BEATS & GROOVES

The 8 pads are great to play. Dynamic and sensitive, they are ideally suited for finger drumming. Assign sounds or MIDI notes to the pads is quick and easy with Impact’s unique “Pad Learn“ feature: Activate, just hit a pad to select, and press a key on the keyboard to assign the MIDI note. Done!

You can save your setups in 4 Pad Maps for recall at any time. With Nektar DAW Integration active, the pads are automatically mapped in Reason or Bitwig for instance and provide a true drum machine feeling, including visual feedback using the pads’ colors.

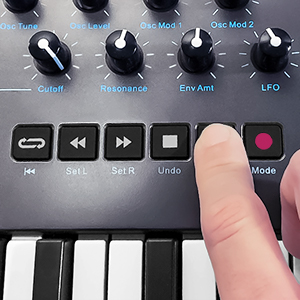

TRANSPORT & NAVIGATION

Navigate your projects: The 6 dedicated transport buttons are always within reach and mapped to control Cycle, Rewind, Forward, Stop, Play and Record.

Dedicated Track up/down and Patch up/down buttons are located below the display.

Press “Shift” to get access to alternate functions such as Goto L, Set L, Set R, Undo, Click and Mode (implementation details depend on the DAW).

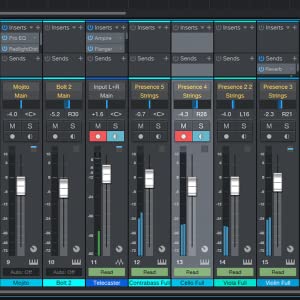

MIXER CONTROL

Press “Mixer” and the first 8 Impact LX+ faders are assigned to control 8 DAW mixer channels. The alternate Bank up/down function moves assignments to the next or previous group of 8 channels.

Channel mute and solo can be controlled from the buttons under the faders. Pan for the selected group of 8 channels is handled by the 8 pots. Fader 9 adjusts volume for the currently selected mixer channel as well as master volume.

There are even shortcuts to open and close your DAW’s mixer window from Impact LX+, so you can make the most out of your screen real estate and instantly see what’s going on.

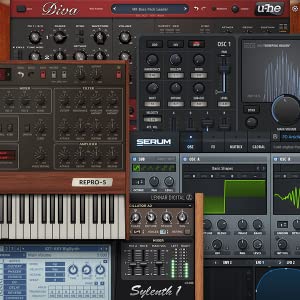

INSTRUMENT CONTROL

In “Instrument” mode, you can control virtual instruments directly from the hardware. Nektar mapping takes care of assignments automatically. Many DAW devices and plugins are pre-mapped to match the screened blue control labels, so you can start tweaking right away. The knobs are assigned to typical oscillator and filter parameters, and the faders let you tweak amp and filter ADSR envelopes. In many DAWs, the Page button gives access to a second page of knob assignments.

Nektar “Grab” lets you assign parameters to controls instantly: Simply hold “Shift” while moving the instrument parameters you want to control, followed by moving the knob, button or fader you want them assigned to. Done! Some DAWs even support saving grabbed parameters to a Nektar map for future use.
