TOPENS AT602 Automatic Gate Opener Kit Medium Duty Electric Dual Gate Operator for Dual Swing Gates Up to 5.5 Meter or 300 kg, Driveway Gate Motor AC Powered, with Blinker and Photocell Beam
ABOUT US – TOPENS
As a leading constructor and manufacturer in gate automation industry, TOPENS is keeping on delivering safe, reliable & high-quality automatic gate openers to our customers, developing new generation products and offering professional support.
TOPENS AT602 Swing Gate Opener – Highlights
| | | | |
|---|---|---|---|
Durable & Reliable Dual Gate OpenerTOPENS AT602 Automatic Gate Opener features two DC 24V motors with higher efficiency, lower power consumption, and greater safety. It is designed as the best value performance kit for Medium Duty dual swing gates up to a maximum of 5.5 m long or maximum of weight of 300 kg per gate leaf. The extendable and durable aluminum swing arms bring a superior performance and longer operating life. | AC Electricity Powered, Solar CapableBuilt-in transformer, AT602 is powered by AC 220-240V electricity directly. The additional 24V Automotive / Marine type battery (Battery is NOT included) and the extra 20W 24V solar panel charging kit (Not included) are also allowed to use as back-up power source. 2 pcs 12V batteries connected in series for 24V. | Multiple Applications, Easy DIY InstallationSuitable for all types of dual swing gates, and perfect for driveway gates made by steel, wood, vinyl, and shaped as panel, tube, and chain-link. Typical application includes residential, courtyard, pasture, farm & ranch. The step-by-step instruction manual makes installing the opener fool-proof. The whole installation takes just a few hours. | Professional SupportMore than a gate opener, our complimentary TopensCare+ Plan provides you comprehensive system solutions. Search TOPENS for online support, and instruction manual downloading. Getting one-stop support from TOPENS professional who knows your products well. Backed by a 12-month TOPENS Guarntee. |
AT602 Features & Benefits
TOPENS AT602 Automatic Gate Opener is designed for Medium Duty dual swing gates up to a maximum of 5.5 m long or 300 kg in weight.
- Two installation modes, Pull-to-Open or Push-to-Open, allows gate open inwards or outwards.
- Equipped with manual release key in case of power outage or when you lose your remote.
- Advanced TOPENS microchip rolling code technology for remote controls. To improve your gate safety, only TOPENS authorized remote controls and wireless accessories are allowed to operate TOPENS Gate Opener.
- Soft start and soft stop ensure a long-lasting performance. The soft start & stop period is adjustable.
- Stop in case of obstruction during gate opening. With the TC102 photocell beam (included), reverse in case of obstruction during gate closing.
- The 24V Blinker Warning Light (included) notifies guests that the gate swings to open/close.
- Reliable electromagnetism limit switch for easy adjustment.
- Digital display indicates the running situation and setting menu.
- Built-in adjustable auto-close time (0-99 seconds) and adjustable obstruction sensitivity / stall force.
- Built-in adjustable max. Motor Running Time (MRT 1-50 seconds) for multiple safety protection.
- Adjustable open/close interval (0-9 seconds) between master and slave gate.
- Dual/Single gate running mode selectable.
- Easy to install, and minimum maintenance requirement.
- 12 Month TOPENS Guarntee.
AT602 Technical Diagram
How to Power This Gate Opener?
NOTE: The tiny CR2025 3V button cell batteries that come with the package are ONLY for the remote control.
Power Mode 1 – Use only the AC 220V-240V electricity to power the system
- Recommended where AC electricity is accessible and stable.
- The power supply cord is NOT included.
- The power supply cord should be at least 2×0.75mm2 (2C×18AWG). Connect the live wire and neutral wire to the “L” (#1) and “N” (#3) terminal respectively.
- Release the clutch and open the gate manually in case of power outage.
Power Mode 2– by AC 220V-240V electricity and back-up batteries, use ONLY solar panel & solar charge controller to charge the batteries
- Recommended where AC electricity is accessible, but not stable.
- Requires additional 24V 12Ah Automotive / Marine type battery (Battery is NOT included). 2 pcs 12V batteries connected in series for 24V.
- The 20-Watt 24V solar panel charging kit is sold separately.
AT602 Specifications & Package Contents
Package
Package Size
- Package Dimension: 91.5 x 45 x 20 cm (36 x 17.7 x 7.9”)
- Gross Weight: 19.6 kg (43.2 lbs)

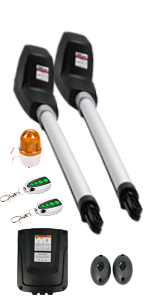

What’s in the Box
- 2 x Gate Opener Actuator (Arm), with a 1.5 m 5-Conductor Cable per Arm
- 1 x Waterproof Control Box
- 1x JD24VY 24V Warning Light
- 1x TC102 Photo Eye Beam Sensor
- 2 x M12 Remote Control Transmitter
- 2 x Emergency Release Key
- 2 x Post Pivot Bracket (Used in Pull-to-Open Installation Mode for Opening Inwards)
- 2 x PSO Part Bracket (Used in Push-to-Open Installation Mode for Opening Outwards)
- 1 x Full Set of Required Installation Hardware
- 4 x Warning Sign, 1 x Detailed Installation Manual
Specifications
- Product Model: AT602 Gate Opener
- Motor Voltage: DC 24V
- Motor Power: 50W
- Rated Current: 2A
- Actuator Speed: 16 mm/s (0.63 in/s)
- Max. Actuator Travel: 385 mm (15.2”)
- Gate Opening/Closing Time: approx. 15 seconds
- Max. Opening Angle: 90° – 110° depends on the installation mode
- Operation Range for the Remote Transmitter: 20 m (65’)
- Frequency: 433.92MHz, unique code per gate opener
- Max. # of Remote Control Supported: 8 pcs on its own, up to 250 pcs with the TOPENS ERM12 External Receiver that is sold separately
- Working Temperature: -20℃~ +50℃ (-4°F to 122°F)
- Sound Level: < 50 dB
- Protection Class: IP44 – Waterproof and Dustproof
- Dimension of the Arm (Actuator): 829 x 124 x 208 mm (32.6 x 4.9 x 8.2”)
- Dimension of the Control Box: 276 x 214 x 87 mm (10.9 x 8.4 x 3.4”)
A wide range of optional accessories compatible, they are available online at TOPENS Store.
| | | | |
|---|---|---|---|
Access & Control
| Safe & Security
| Cables
| Replacement Parts
|
 |  |  |  | |
|---|---|---|---|---|

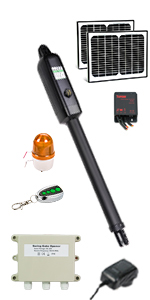

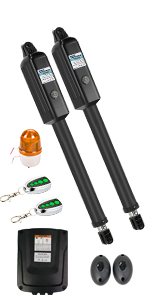

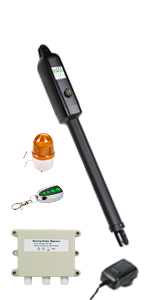

| Performance | Medium Duty – Best Value Performance Kit | Medium Duty – Best Value Performance Kit | Light Duty -Cost Effective Kit | Medium Duty – Best Value Performance Kit |
| Accessory Included | 24V Warning Light | 24V Warning Light, Solar Kit | 24V Warning Light, TC102 Photo Eye Beam Sensor | 24V Warning Light, TC102 Photo Eye Beam Sensor |
| Gate Capabilities | 5 Meters or 250 kg | 5 Meters or 250 kg | 3.6 Meters or 140 kg Each Gate | 5.5 Meters or 300 kg Each Gate |
| Arm Dimension | 855 x 84 x 104 mm | 855 x 84 x 104 mm | 855 x 84 x 104 mm | 829 x 124 x 208 mm |
| Motor Voltage & Power | DC 24V & 50W | DC 24V & 50W | DC 24V & 30W | DC 24V & 50W |
| Default Power Supply Mode | 2 x 12 V Battery (not included) | 2 x 12 V Battery (not included) | AC 220-240V Electricity | AC 220-240V Electricity |
| Battery as Power Source | Main Power Source | Main Power Source | ONLY Used as Back-up Power Source | ONLY Used as Back-up Power Source |
| Solar Compatible & Solar Kit Included | Solar Compatible,Not Incl. | Solar Compatible,Incl. | Solar Compatible, Not Incl. | Solar Compatible, Not Incl. |
| # of Remote Controls Included | 1 | 1 | 2 | 2 |
| Compatible Accessories | All the TOPENS Accessories | All the TOPENS Accessories | NOT Compatible with Electric Gate Lock or Vehicle Sensor Exit Wand | NOT Compatible with Electric Gate Lock or Vehicle Sensor Exit Wand |
| Weight: | 17.4 kg |
| Dimensions: | 91 x 45.7 x 21.6 cm; 17.42 Kilograms |
| Batteries Required: | Yes |
| Batteries Included: | Lithium Metal |
| Manufacture: | TOPENS |
