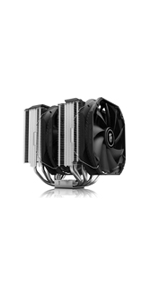

DEEP COOL Assassin III Air CPU Cooler, 7 Heatpipes, Dual 140mm Fans, 54mm RAM, 280W TDP

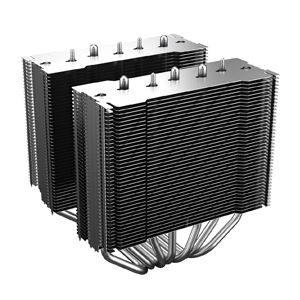

The frame is narrow in the middle but wide around outer rim. Hence the airflow gains higher pressure passing through the frame.
The noise canceling teeth are distributed unevenly to avoid sympathetic vibration and thereby keeping the operation inaudible.

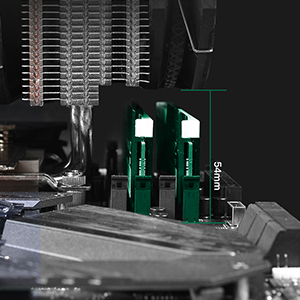

RAM COMPATIBLE & ADAPTABLE
54mm clearance for RAM.

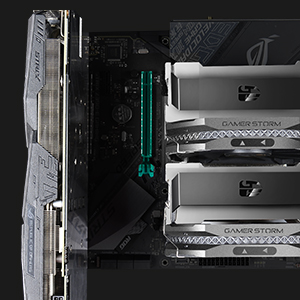

COMPATIBLE & ADAPTABLE
138mm wide so it doesn’t interfere with the GPU on mainstream ATX, M-ATX and even ITX motherboards.
165mm tall so it fits in all mid or full tower cases.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Intel CPU Socket | LGA2066/2011-v3/2011/1200/1151/1150/1155 | LGA2066/2011-v3/2011/1200/1151/1150/1155 | LGA2066/2011-v3/2011/1200/1151/1150/1155 | LGA2066/2011-v3/2011/1700/1200/1151/1150/1155 | LGA2066/2011-v3/2011/1200/1151/1150/1155 | LGA2066/2011-v3/2011/1151/1150/1155/1366 |
| AMD CPU Socket | AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 | AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 | AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 | AM4 | AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 | AM4/AM3+/AM3/AM2+/AM2/FM2+/FM2/FM1 |
| Dimensions (LxWxH) | 5.6″x 3.9″x 6.5″(142×98×164mm) | 5.6″x 4″x 6.5″(142×102×164mm) | 5.6″x 4″x 6.5″(142×102×164mm) | 5.1″x 5.4″x 6.3″(129×138×160mm) | 5.1″x 5.4″x 6.3″(129×138×160mm) | 6.3″x 5.5″x 6.5″ (161x140x165mm) |
| Heatsink | 5 heatpipes | 5 heatpipes | 5 heatpipes | 6 heatpipes | 6 heatpipes | 7 heatpipes |
| LED/RGB | ARGB | ARGB | ARGB | |||
| LED Connector | 3-pin(+5V-D-G) | 3-pin(+5V-D-G) | 3-pin(+5V-D-G) | |||
| Fan Speed | PWM: 500-1200 RPM±10% | PWM: 500-1200 RPM±10% | PWM: 500-1200 RPM±10% | PWM: 500-1850 RPM±10% | PWM: 500-1850 RPM±10% | PWM: 400-1400 RPM |
| Fan Noise Level | ≤29.2dB(A) | ≤29.2dB(A) | ≤29.2dB(A) | ≤28 dB(A) | ≤28 dB(A) | ≤29.5 dB(A) |
| Weight: | 1.46 kg |
| Dimensions: | 16.1 x 14 x 16.5 cm; 1.46 Kilograms |
| Brand: | DEEP COOL |
| Model: | DEEPCOOl Assassin III |
| Batteries Included: | No |
Ok, some assembly required. That said, what really made this a worthy purchase, for me, was that they include a long, magnetic-tip P2 driver and if you’re above a grade 1 education, you’ll be able to follow the install instructions.
Now, I have all my own tools for any project that I care to take on, and I’ve been building my own gaming rigs since the mid 90’s (my first had a 28.8 modem), but the fact that I didn’t have to get up and go get a screwdriver just really kinda made my day. And honestly, that’s why I’m writing this review.
Also, be prepared for how massive this thing is. I did not know CPU coolers came in sizes like this when I bought it, and I guess I didn’t pay that much attention to the dimensions when i clicked buy now. Thankfully, with my new case, it fits and so far is performing wonderfully, but if I hadn’t ordered a new case (with filters, yay) the same day, I’d have been hosed and it would have been entirely my fault.
Seriously, guys. It’s huge. I can’t post the pics for some reason, but your box better be deep, with no side-panel fans in the upper-ish area.
Pros:
-Quality materials
-Required tools provided
-Easy instructions
-Silent. Not quiet, silent. That’s dual 140mm fans, completely silent. I’m dumbfounded.
-Size. It’s huge.
Cons:
-Size, if you do not have a deep case (like my old one).
-Size, if you have tall heatsinks on your ram.
Does the job but the included 2nd 140mm fan would not clear the ram so I used a 120mm fan and added a 3rd 120mm fan to back with the included extra fan clips. You will need a full size case like a Enthoo Pro case to fit this monster of a fan inside the case… Or run it in the open. The center section allows at least one full size 140mm fan to be installed so only lost some perfamance but I hope the extra 120mm fan made up for it.
sopra i 70 80 no, si prende l’originale, quello di marca.
se lo trovate a 65 risparmiate qualche decina di euro per la build
Dispongo de un I7 10700K y al pasar Cinebench enseguida llegaba a 100 grados, con este disipador no pasa de 79 a plena potencia y en IDLE est por debajo de 30 grados. Han mejorado mis temperaturas de una manera brutal y jugando se mantiene fresco.
Creo que hay otros que son mejores pero enfria bien la cpu
Make sure you measure the case and make sure it’ll fit over the top of your RAM slots, this fan/heat-sink combo is really large. Dropped one star on installation and mounting system, as the clips used to mount the fans to the heat-sink are cumbersome (at first). To the folks in product design, “C’mon man…” There has to be a better way. Still, that said. This thing runs so quiet and even at full load from gaming, it barely gets warm. I have zero regrets, really. I would recommend and would buy again.
The cooler box had all the parts I needed plus more for other mounts. The fans are massive and take a moment to clip on to the radiators. While it claims it’s cut out for memory modules heights it was still not high enough. I had to replace one of the 140mm fan with a 120mm fan but so far it’s working well.
passt vielleicht nicht in jedes Gehuse wegen der Gre weil es sehr gro ist dafr extrem gute preis Leistung und Performance zudem auch noch sch
To be fair I run my system 24/7 365 @ 100% and I am running a AMD Ryzen 9 3950x.
So all 16 cores (32 Threads 100%.) at 4.1ghz.
when the system is Idle, temps are around 40c, however under that loading that is normal for me temps approach 79c and the fans are at 100% the spec sheet says that the vans are <= 34db... HAHAHAHHAHA Their fans at full speed are easily twice as loud as my bequiet fans which have a max of 56cfm, though their purported airflow is 90.37cfm. you know what other fan has a purported airflow of 90 cfm, my xigmatek fans. and at full speed (they only run at one speed.) they re quieter than the BeQuiet fans, which would make them about 3 times quieter than the DeepCool fans. Xigmatek - <16db BeQuiet - 15.5db Deepcool - <=29.5db from my experience the bequiet is a bit louder than they advertise, the Xigmatek is spot on and the DeepCool is much louder than advertised. So my recommendation is if you get this cooler be prepared to replace the fans on day 1 if you are running anything over a 8c/16t processor. now as to the cooler, it has a wider fin spacing than the BeQuiet, Noctua, and even the Cryorig cooler so you don't have to worry about the static pressure output of your fans. So pretty much any fan producing over 60cfm will work. I have mine configured with 3 fans, a rear 140 in pull configuration a central 140 in push/pull configuration and a 120mm in push configuration. and all fans are at roughly 62cfm at max output. I'm using all BeQuiet fans even though they are not the quietest I don't want the LED nonsense of the Xigmatek fans in this configuration it keeps my cpu at 79c under full load, 24/7/365. when this happens the fans that the cooler ships with are just plain loud. I don't know what the youtubers were on when they said the fans were quiet. Yeah quiet compared to a jet engine. So be prepared to toss the factory fans for something else.
Hace su funcin mejor que ningno, probablemente el mejor disipador por aire que existe.. lo nico a tener en cuenta en espacio de la caja y las ram.
I feel really bad for having to return this, because it’s a really good product.
It comes with a lot of accessories (including a screwdriver) and provides everything you could wish for.
Solid quality and one of the best coolers I`ve ever had…
Unfortunately I wanted to use it for my server rack which is 4U high but it does not fit 🙁
Used to build two AMD Ryzen rigs very impressed very quite and keeps temps low 30s high 20s even when overclocked. Very easy to install and instructions are spot on. The fact I brought a second and have done a review is a very high accolade.
veng de un disipador nh-d15 chromax black y de una refrigeracin lquida msi liquid cooler 360 r ninguno pudo refrigerar bien mi amd ryzen 9 5900x.
l nico disipador que podido bajar bien las temperaturas ha sido el DeepCool Assassin III con temperaturas de 60 grados en juegos.
Using this in a Phanteks Enthoo Pro case with the stock case fans. Processor is an AMD 5900X, not overclocked.
Ran the Cinebench test for 15 minutes- continuous repeat. All individual processors were running at 100% for 15 minutes. The temperatures peaked at 63 Deg C after 2-3 minutes and stayed there the rest of the time.
Montato su una GA-X58-UD5, e purtroppo le ventole un p si sentono, chi sta parecchie ore al pc con vecchi sistemi consiglio di allontanare dalla scrivania il pc
I installed in an older core i7 workhorse used for rendering work to replace a blown liquid cooling system.
Cooler installed really easily and also included a generous syringe of heat paste plus some cleaning swabs to get old paste off.
Loads of mount options to suit lots of different processors including AMD.
After install system was quiet and remained very cool even under load.
Will be ordering another one to keep in stock!
oggetto molto grande, attenzione ai case piccoli, ma riesce a dissipare anche i processori pi caldi.
Excellent product. Equal in performance with my older Thermaltake 360mm ARGB AIO.
It’s important to know that the 140mm fan is big enough, that if you have tall RAM, you will have to mount the fan above the RAM higher. But, in my case, I decided to use my Thermaltake ARGB and Deepcool RGB 120mm fans. To my surprise, the screw holes of these fans are at the exact same positions as the screw holes on the original 140mm fans that came with this cooler, so my 120mm fans attach to the heat sink perfectly.
My results with my 9900k (1.25V, stock at 4.7 GHz, with Hyperthreading on) so far, at 80F ambient:
100% CPU usage using 7Zip: around 70C
Prime95 v26.6 (non AVX): 85C
Prime95 with AVX: 100C, and throttles my CPU a bit.
Gaming: gaming temperatures are excellent, at around mid 50s to low 60s in most game. When playing Call of a Duty Warzone (which is very CPU heavy), the temperature is between mid 60s to low 70s.
The temperature results are good, especially when gaming. These results are from using my 120mm ARGB and RGB (non original fans) that have around 47 CFM of airflow. My ARGB and RGB fans are weaker than the original ones coming from the cooler itself. The original fans are 140mm with around 90 CFM of airflow, so I’m sure my results would be better if I use the original fans.
I’m very happy with the product, and would recommend this to everyone. I definitely prefer this over my old AIO liquid cooler. And what’s best is that this cooler can’t leak (because it’s air), and you can upgrade the fans yourself, in case the original 140mm fans are not good enough.
My only complaint about this would be I wish it was alittle taller. The heat sink on my mother board won’t allow the fan to be mounted so it 100% covers the heat sink on side and the RAM affects it on the other. Also, for some reason it came with a Phips screw driver. Not sure why, because if you don’t already have one how did you get to point of installing the CPU cooler? So keep it and maybe knock a few dollars off the price.
Ram clearance: Large heatsinks can be a problem in this regard, the heatsink is cut in to allow clearance and the front fan can be raised to maintain clearance however this does require enough cpu cooler clearance in your case. In my build this came to 176mm. If this is an issue an alternative would be to use a pull configuration.
Build Quality: Doesn’t feel quite as solid as a Be Quiet or Noctua cooler which is noticeable when installing or removing fan clips and there are signs that it lacks the same level of quality control but I couldn’t find any real issues in the cooler I recieved and the mounting system holds solid.
Noise: Like any fan setup it can get noisy at high load but even on Total War warhammer 2 which is CPU intensive the GPU fan was generating the majority of noise in my pc so unless you are doing something that puts a particularly high load on your CPU it shouldn’t be an issue for most people.
Cooling: The cooling is good for gaming, my testing on games has managed to peak the temperature at 72c, compared to the Dark Rock Pro 4 which hit 76c in similar use on the same hardware.
There are a couple of false advertising claims here, they don’t have any special heatpipe technology they are regular heatpipes and the “spoilers” thats the plastic fins make no noticeable difference whether they are on or off.
Installation: It was simple to install with clear instruction, the fins of the heatsink were a little flimsy and some had burrs making the fan installation fiddly.
If a Noctua NH-D15 is within your budget I would recommend that but if you are trying to squeeze a high performance cooler within budget the Assassin 3 does have very good cooling performance and in my testing has slightly outperformed Be Quiet’s Dark Rock Pro 4.
I would have given it 5 stars but the only thing that concerns me are the heatsink fins showing signs that quality control isn’t to the level you would expect for a high end cooler so for that reason I’m going to drop it to 4 stars..
Cooling performance is very good just what I needed for the i9 9900k.
You will need a big case for this as the cooler is quiet high and will require uptoo 190mm clearence.
I have the asus gt501 case which worked well with this.
Over all very happy with this product. No pains so far.
Aussi efficace qu’un AIO et moins chere. La difference sonore entre un system AIO et ce radiateur est minime. Certe, celui l prends beaucoup de place et ne laisse pas entre voir les led des barrettes memoires et les leds de la carte mere. Mais j’en suis tres satisfait. Son prix est imbattable.
Ho montato questo Assassin III su Aorus X570 con Ryzen 9 3900x per uso modellazione e Rendering 3D, scegliendo un doppia torre ad aria propio per l’uso prolungato di ore con sessioni di lavoro a pieno carico al 100% con TDP da 145watt con tutti i Core al massimo di potenza erogata. Il dissipatore dopo 10 mesi di lavoro si comporta In modo eccellente! Mantenendo la temperatura massima a 75c per tutto il periodo di stress in ambiente con 29c in estate! In inverno la CPU naturalmente scende sotto i 65c sempre con carico al 100%. Invece ”In Idle” senza carico si mantiene 35c/40c in qualsiasi stagione. Comunque i salti di temperatura sono molto veloci dopo il carico di lavoro al 100% in poschissimi attimi ritorna alla temperatura base In Idle 35c/40c! Prima di acquistare il dissipatore controllate se il vostro Case PC sia compatibile con l’altezza del dissipatore che diventa anche di 18cm in base al profilo della vostra ram, sotto la prima ventola!! La rumorosit molto bassa…dipende anche come settate le ventole dai bios in base alla curva da voi disegnata ”numero giri e gradi c” da regolare facendo dei test semplici con Cinebench23. Naturalmente in estate cambiate il profilo delle ventole. In conclusione lo reputo migliore rispetto a un dissipatore a liquido in kit gi pronto se utilizzate la macchina solo per sessioni di lavoro con carico al 100% prolungato, stiamo parlando di molte ore o giorni consecutivi! Se invece utilizzate la macchina come una DAW per produzione musicali, CAD, fotoritocco, o per videogiocare, il mio consiglio ricade su un dissipatore a liquido che schiaccia eventuali picchi di temperatura senza problemi con silenziosit e minore ingombro. 😉
Dimenticavo… preso a euro 79,99 nuovo.
The DEEPCOOL Assassin III Air CPU Cooler works well. I get CPU temperatures from 33c to 60c depending on load. When my Ryzan 7 5800 CPU and an MSI MEG X570 Unity Motherboard. The fans however are an installation issue. You can put one fan in the middle of the Large Heat Sink but hold it in with a wire brace. Only one wire brace could I install. Fortunately, it appears to hold firmly in the middle of the heat sink with just one wire brace. What happened to screws or something that is more solid? Second, the other fan is too large and will not fit on either side of the heatsink. It gets in the way of the Motherboard cables or it gets on top of the memory. Neither is a workable solution. So, I had to use one fan in the middle. I had a full-size
Rosewill THOR V2-W White Edition Gaming ATX Full Tower Computer Case White LED and good fortune, the second fan fit like a glove at the bottom of the box. An optional place on my full-size box for a fan is desired. So, the second fan wasn’t wasted. I add to this post weeks later. The Cooler works well and is quiet even at full speed. The Ryzen 7 5800 is overclocked at 4275 MHZ and is stable at an acceptable temperature at all stress levels. I recommend this cooler for those who have a box that it fits.
Je l’ai achet il y a plus d’un an et c’est le meilleur ventilateur que j’ai pu acheter.
Il est autant voir plus performant que les meilleurs watercooling, tout en restant extremement silencieux. J’ai t bluff par ses performances.
J’ai eu en comparaison un N3XT Kraken Z53 et un MSI Mag 360R, deux systmes de watercooling qui avaient des performances semblables voir infrieures tout en faisant un bruit d’aspirateur, je suis donc revenu sur mon Deepcool.
Il m’a permis d’overclocker mon 10700k 5.4GHz, et avec des sessions de jeu + streaming o il tait sollicit environ 90% de moyenne restait stable et toujours en dessous de 65 degrs ce qui est impressionnant.
Je recommande videmment.
Die Anleitung besteht nur aus Bildern und erklrt jeden Montageschritt fr die verschiedenen Mainboardtypen. Es ist alles dabei, was man bentigt… sogar ein Schraubendreher.
Die Hhe bietet unten gengend Platz fr RAM Riegel etc. aber nach oben raus kann es eng werden. Unbedingt vorher das Gehuse messen. Mein Silverstone RV05 geht gerade noch zu.
Ist der Khler einmal erfolgreich eingebaut, ist er flsterleise. Unter Last wird es etwas “windiger” bei sehr guter Khlleistung.
Die beiden Lfter knnen einzeln mit dem Mainboard / der Lftersteuerung verbunden werden, wenn ein sogenannter CPU_OPT header vorhanden ist, der der Drehzahl des Hauptlfters folgt. Ansonsten verwendet man das beiliegende Y-Kabel.
Wenn man wirklich einen guten Khler sucht, und nicht einen blinkenden Poser-Wrfel – “Hubraum statt Spoiler” – dann ist man hier genau richtig, denn Beleuchtung hat er keine, aber er ist ja auch keine Lampe sondern ein Khler 😉
Es silencioso y su TDP es, quizs, el mejor del mercado en aire forzado.
Ojo! Necesita una caja que deje espacio para su montaje y en la que fluya caudal de aire suficiente
Es algo pesado y es recomendable anclaje para compensar su peso
Montato su una Ryzen 7 5800x e va da dio.
Adirittura sto lavorando ad una ventola sola.
Nel pacchetto c’ davvero tutto cio che serve.
Assolutamente consigliato.
Il dissipatore veramente notevole e tiene il mio i7 10700k a 30, arrivando a scendere anche a 28. Occhio che parecchio ingombrante e vi serve un case bello capiente. Ho scoperto dopo che esiste una lista di case compatibili. Il mio non lo (phantek p400a) e ora non riesco a chiudere il lato con il vetro
Es la primera vez que compro algo de esta marca,y bien cierro que no fue hasta ultima hora mi eleccin para coger un disipador,nada me hara cambiar ahora.
Obviamente yo no le voy a meter mucha caa con un ryzen 5 3600,pero supongo que est pensado para cualquier tipo y quera en este caso lo mejor para olvidarme en muchos aos del disipador.
Nivel de ruido apenas apreciable.
La instalacin es de lo ms fcil y con poco que te gues por el manual en unos minutos se instala y se adapta a cualquier ram,siempre que tengamos en cuenta el ancho de la caja.
Unfortunately I have to give it one star. One of the screws that attaches the cooler to motherboard bracket was defective and kept spinning in place, or maybe it is the defective bracket. Whatever It was, it was a pain to remove it, to say the least.
Das Teil hat Khlleistung ohne Ende und stellt die meisten AIO’s in den Schatten. Leicht zu montieren, wenn man denn genug Platz im Gehuse hat. Unter Last auf meinem 8700K (1,325V 5.1Ghz ~ 170W Volllast) schafft er das ganze bei 80C zu bndigen whrend eine AIO mit 280er Radiator hier bei knapp 85C lag und deutlich mehr Lrm gemacht hat.
War sehr schnell vom Versand. Und es berzeugt auf in vollen Mae. Hlt meine Ryzen 7 3800x im idl auf 33 Grad und unter last auf 61 Grad. Daumen hoch
Muy minimalista, bonita y grande, tened cuidado por si no entra en vuestra caja.
Preso per tenere a bada un Ryzen 7 3700X, ho settato le due ventole dal BIOS a circa 450 rpm per ottenere temperature in ilde a 28/29 fino ad arrivare ai 75 nei lavori pi gravosi (ad esempio nella conversione di un file video di 9GB). A questo regime le ventole non si sentono, ai massimi regimi si sentono abbastanza, pi delle Noctua del NH-D15 (che ho testato), ma la differenza si spiega anche per il maggior numero di rpm massimo del Deep Cool (1400) contro quello del Nosctua (1200), 200 rpm sono tanti anche in termini di rumorosit! Se si smanetta un p con il BIOS si riesce ad ottenere a parit di rumorosit con il Noctua NH-D15 un risultato migliore in termine di raffreddamento. Consigliato solo a patto che il PC sia dotato di un case abbastanza ampio, la ventola sopra le ram (le mie sono delle Corsair Vengeance LPX) deve essere messa un p sfalsata e ha lasciato solo circa 1 centimetro del mio case che pur largo 23 cm!
Keeps my Ryzen 7 5800x nice and cool, and does so quietly. Temps never get close to the danger zone even when the machine is under heavy load. I’ve never built a PC before this and was debating liquid vs air cooling, but I’m glad I went with the Deepcool Assassin 3. I had trouble putting on the fan clips for a minute because I’m a bit of an idiot and have sausage fingers, but once I figured out how they fit on it was a breeze. I love my deepcool assassin!
Ottimo prodotto, montato su una scheda madre MSI B550 Tomahawk e raffredda alla perfezione un Ryzen 5800x, attenzione all’altezza delle Ram, io con le mie Crucial Ballistix non ho avuto alcun problema ma con altri modelli occhio. Solo un difetto se cosi si pu chiamare, pur settando da Bios gli rpm delle ventole, quando il carico di lavoro della CPU alto e di conseguenza le temperatura, il dissipatore fa molto rumore rispetto ad un Noctua NHD15. Estetica accativamente, materiali ottimi.
Il dissipatore funziona molto bene, il rumore per me accettabile visto che tengo sempre messe le cuffie, anche se tecnicamente potrebbe essere pi silenzioso con gli adattatori gi inclusi nella scatola.
Il problema che nonostante sia dichiarato che entra in case che in grado di contenere un dissipatore di 165 mm, non vero che entra se la scheda madre una ATX con RAM dual channel: nonostante le RAM siano corsair vengeance lpx, che sono fra le pi low profile in commercio, la ventola in PUSH troppo grande e tocca la seconda stick di RAM, ci crea una situazione dove il vetro temperato non in grado di chiudersi perch la ventola sta pi in alto del dissipatore stesso.
Insomma sono un po’ deluso dall’acquisto, ma finch mi tiene la cpu fresca, va bene lo stesso :/
Tengo un Ryzen 7 5800X overclockeado a 4hz y mantiene la temperatura estable a 45C sin inmutarse, muy buena compra.
Lo malo es el tamao pero es lo que hay si quieres olvidarte de los mantenimientos de la regrigeracin lquida.
– Cools my i9 10900k effectively
-fairly easy to install
-comes with everything you need (screwdriver and thermal paste)
Cons
-fans can be a little loud compared to other brands like cooler master or noctua
– It is very large so the fan doesn’t fit perfectly on one side and is too large for my case to close
– bracket blocks the cpu lever to to remove the cpu you have to remove everything
-so large where if you have to access most components it will be in the way and will have to be removed
tips for installation
-plug in everything first except for gpu. this includes the cpu cooler fans, cpu power cables, case fans, ram, and potentially m.2 ssd. I’d check to see if anything else needs to be plugged in as well that might be blocked once the heat sink is installed.
– put the cpu in place before adding the brackets
– do not follow the thermal paste instructions. Just put a pea sized drop in the middle of the cpu
– 52 gradi su uno xeon e5 2678 v3 con turbo boost
-63 gradi su un 3600 con pbo
-73 gradi con un 1790 a 4.1 GHz 1.43 vcore
Non ho altri dati precisi, ma posso dirvi che regge quasi tutte le cpu consumer in comercio, ma ovviamente va messo con un hardware di fascia alta: infatti su una cpu del calibro del 3600 questo dissipatore inutile, pertanto ne basta uno da 20 euro, per poi spendere la differenza di prezzo in un altro componente importante, come ssd, ram,gpu, psu.
Montaggio semplicissimo, quattro viti dietro la mobo e siete a posto. Estetica da paura, veramente bellissimo nella sua imponenza.
Problema non da poco da segnalare, lo vendono come compatibile con RAM da 54mm, ed verissimo. Peccato che non dicano che x farci stare moduli pi alti di 31mm bisogna spostare verso l’alto la ventola, quindi gli ingombri cambiano eccome! Io ad esempio ho delle TeamGroup Dark Z alpha che sono alte 46mm e ho dovuto spostare la prima ventola verso l’alto di oltre 15mm x farcele stare. Fortunatamente il mio case (ASUS TUF 501) non ha avuto problemi ad ospitare i quasi 190mm di dissipatore, per penso che molti altri case facciano fatica ad ospitare questo tipo di dissipatore, soprattutto se si deve spostare la ventola x fare posto alle Ram.
Seconda cosa, NON sono soddisfattissimo delle temperature. Il mio 5800X arriva a toccare e superare gli 80 gradi, secondo me sono veramente troppi per un dissipatore di queste dimensioni e di questo prezzo.
In definitiva non lo consiglio, sono soddisfatto solo parzialmente perch la qualit c’ e si vede ma mancano le prestazioni e soprattutto credo che nel 95% dei case questo bestione non possa entrare.
Non proprio facile da montare, bisogna un p capire e smanettare, ma con un p di pazienza si pu fare molto facilmente. Il dissipatore ottimo, non fa rumore ed ha delle performance bellissime (mi tiene tranquillamente un 3700x in OC). Consigliato
Tengo el procesador con OC, y me da unas temperaturas muy buenas.
Funziona perfettamente, davvero silenzioso, controllate bene l’altezza del del vostro case perch bello grande!!
Istruzioni semplici, completo di tutto il necessario per il montaggio. La differenza con il dissipatore stock di ben 15 nel mio caso. Ovviamente molto imponente, quindi verificare bene che ci stia nel case.
This is pretty amazing. I used to have a H115i Pro AIO and was hitting 100’C trying to get my i9-9900k to 5.0 GHz on all cores. Just now I tried out going to “air” and picked this model based on Tom’s Hardware. AMAZING. My temps do not get past the mid-80’Cs with all cores at 5.0GHz/AVX offset =0 using Cinebench 20 or AIDA64. I’m a believer. I’m done with AIO’s. This is also extremely quiet.
Great product and great results. NOTE: I have a Corsair 570x case and the top of this almost touches the side of the case.
Renov placa base y micro viniendo de una gigabyte z170 y un i7 6700k a una Aorus b550 junto con un ryzen 7 3800XT. En el anterior setup tena una refrigeracin lquida Enermax de 120mm y me promet que sera la ltima al no obtener buenas temperaturas en mi micro. Este disipador es una absoluta pasada. 35 grados en escritorio y 62 en juegos demandantes. Hablamos de una diferencia de 13 grados respecto a la refrigeracin lquida y el i7 6700k teniendo el ryzen 15W ms de TDP (!!!).
Como contra… Ninguno, ya que lo que tiene que hacer lo hace de miedo, pero vigila que tu caja tenga espacio suficiente ya que en mi nox hummer no cabe… Tendr que mirar una Phanteks 🙂
Preso in sostituzione di un AIO Gammax 240 RGB per raffreddare un Ryzen 9 3900X
Packaging eccellente, nella confezione oltre alle due ventole e alla torre, troverete la pasta termica con una scheda per spalmarla (spalmandola, chicco di riso o 5 punti non fa alcuna differenza a livello prestazionale), cacciavite lungo per il fissaggio della torre alle staffe, ben 6 mollette per fissare le ventole (2 in pi di quelle necessarie) adesivi vari e un simpatico portachiavi….
Installazione abbastanza facile (attenzione ovviamente alle dimensioni notevoli, non per tutti i case)
Prestazioni MOSTRUOSE, le temperature sono quelle in foto, con settaggi del BIOS standard tiene il 3900x a temperature glaciali come da foto e video allegati…
Ventole sempre silenziose anche a regimi di rotazione pi alti, personalmente le tengo in un range tra gli 800 e i 1100 RPM e con tutto ci le temperature sono incredibilmente basse per la cpu in questione
Fa la sua bella figura esteticamente e non crea alcun problema anche con memorie RAM pi alte in quanto oltre allo scalino sotto le lamelle del dissipatore, le ventole possibile regolarle a vostro piacimento sul blocco dissipatore
Che dire… Un best buy probabilmente il miglior dissipatore ad aria in commercio attualmente
Le produit correspond parfaitement sa description et pour le moment il fonctionne merveille. Par contre, la pte thermique qui tait fournie tait compltement dessche et colmate, j’tait oblig d’aller en acheter une autre au magasin..
it’s really very good .maximum degree when I use ryzen 7 3700x full load 61c
Pros are it’s well made and easy to install
The only things I didn’t like was the paste that is like putty so went with mx4
I also needed to raise one fan higher due to ram lucky I could just about shut the case
Using a case that holds 165mm should work fine however if you need to raise one fan and you likely will then its 170mm
Come prestazioni da quel che ho visto in giro al pari di un Noctua NH-D15, come prezzo per costa un po’ di meno (pagato 80 euro). Nelle 2 settimane che l’ho usato riesce a tenere a bada tranquillamente il mio i9 10850K in overclock (automatico, niente di super pesante, parlo di 5 Ghz su tutti e 10 i core), poi le ventole nere secondo me sono davvero molto belle. Fate solo attenzione al fatto che un dissipatore mastodontico e che vi serve un case abbastanza grande per farlo stare dentro (io ho un Corsair Carbide 275R). Un altra cosa della quale sono rimasto sorpreso in senso positivo che nella scatola ci sono davvero un sacco di accessori (pasta termica, un cacciavite grande che ha anche la punta magnetica, cos le viti non si perdono in giro) e altre cosette che vi renderanno il montaggio pi semplice. Consigliatissimo per chi cerca un dissipatore ad aria molto performante e che cerca un alternativa valida al Noctua.
Tiene il processore a temperature bassissime, peccato solo la grandezza non riesco a mettere 4 banchi ram.
perfetto per scopo. Gi montato, Corrisponde perfettamente a quanto richiesto.
So I made the mistake of giving a CLC cooler a try. Never again. I had weird problems with it from the start. It seemed to have air bubbles in it because if the PC was ever shut off and powered back on temps would be horrible unless the radiator (the part where the hoses connect) was given a slight smack. Then temps would fall back down (usually, sometimes required a few smacks, or rocking case back and forth). So I never shut my PC down.
Temps were never impressive with the Corsair H100iV2. I have a 8700K at 4.8 Ghz all core @ 1.230v. When I ran the AIDIA system stability test CPU temps (according to HWinfo64) would hit 80-82c). Well one day the pump in the Corsair H100i V2 just died completely. Leading to 100c CPU temps in BIOS. So I decided no more CLC’s. I went with this air cooler after much debate. I thought about the famous Noctua NH-D15, and be quiet! Dark Rock Pro 4. I ended up going with the DeepCool Assassin III mainly because I thought it would fit inside my Corsair Obsidian 450D with the side panel. But I must have mis calculated (my fault). My memory (G-Skill 3200 Mhz 16 GB kit, 8GB x 2) with a height of 42 mm causes one of the fans on the cooler to sit a bit higher where the side panel cannot be on. I just popped out the plastic “window” part of side panel for now. Plan to cut a small hole for the fan to go through. It dose not block any of my memory slots though, I put 2 more DIMMS in no problem if/when I want.
Anyways on to the performance. This cooler is fantastic. Installation was extremely easy. They include a nice high quality, long Philips screwdriver for install. The mounting mechanism is extremely easy to install. Took ~15 mins. Used Artic Silver 5 thermal paste (been using that stuff for many years). Anyways, after getting it installed (heads up connect the fan together then connect the fan header to your mobo’s CPU fan header before mounting the cooler, luckily my GF has small enough hands she got it connected). I set my MSI Z370 SLI-PLUS CPU cooler header to auto mode and it’s default fan/temp curve. Ran AIDIA64 system stability test (stress CPU, FPU, cache, system memory all checked) for ~15 mins. CPU package temp never went above 76c, and not one of the 6 cores went above 76c. The cooler remained virtually silent as well. I love this thing. Thinking I could easily bump my OC to 4.9 Ghz no problem with this thing. But already thrilled with how much better it works that that Corsair H100I V2 CLC. And I no I don’t have to worry about a pump going dead on this thing.
It’s a great CPU cooler. Very quiet and efficient. Would buy again.
Installation was a breeze with the included brackets. They are labeled AMD or Intel, so there will be no confusion. The only ish was the damn sticker badge for the cooler I placed it a little off. I wish Deep Cool would pre install it.
Cooler is bulky so make sure your case has clearance for the extra height when mounted. Using it on a Ryzen 3900X .. temps were a bit rough had to tweak some BIOS settings as my Asus Tuf was overvolting my cpu. Now its idling around 36 to 41 degrees with my ambient temps around 26 degrees Celsius. Load temps are around 66 to 70 degrees using BOINC WCG to fold as this runs 24 7 need a solid cooler for this alone and the Deep Cool so far been good. Cleared my G skill sticks no problem, but does block some of the rgb bling.
Eso s, es bastante grande, si tienes Mdulos de ram de perfil alto no te va a entrar a no ser que tengas una torre enorme. Yo lo instal en una MSI Vampiric con RAM de perfil bajo y sin problemas, entra justa justa, pero mejor asegurarse mirando las especificaciones de tu torre.
La instalacin es muy sencilla y queda bien asegurado a la caja. Se agradece muchsimo que incluyan un destornillador y una buena jeringa de pasta trmica, an as esta ltima no la he probado, ya que pongo la de Artic y me va maravillas.
En cuanto a ruidos, los ventiladores no son los ms silenciosos, si quieres un PC calladito mejor gstate un poco ms y ve a por el Noctua. Pero no es MUY ruidoso, a mi al menos no me molesta.
I’m not going to knock any stars for my lack of attention. I tried to fit this in an NZXT H510 with some Trident Z RGB RAM modules and well … this awesome looking cooler towers over the modules covering them completely on my Gigabyte x570 Aorus Master Mobo. The heatsinks on the RAM did not allow the right fan to sit low enough for the side panel to close. Make sure you either have a full tower or some low-profile memory modules.
My only knock I’d say was the thermal paste included with the unit I got was garbage, not pasty at all. Came out like silly putty.
Again, I wanted this to work, but I am attached to the small size of the H510 case and I’m not going to give it up, I’ll just have to stick with the all-in-one coolers.
As far as fitment… It’s a big chunky cooler, so I know other people will have the same questions I had… Does it fit with X configuration… So I’ll post my configuration and go into some details. It doesn’t seem to interfere on the ASUS B-450F with the top graphics card slot or the top PCI-E 1x slot, but it does hang over my ram. I have 64GB (4 sticks) of Crucial Ballistix DDR4-3200 (BL2K16G32C16U4B), so it will fit over that for those of you looking for that info. It also JUST barely fits into my Corsair Carbide 200R case… I think the “spoiler” (The silly plastic thing on top that goes level with the tops of the fans) may be may be in contact with the side cover on my case, but the case still closes fine without effort, so it may not be touching. So I will warn anyone with a 200R, this is the cooler to use, not the slightly taller Noctua (The noctua is 2mm taller according to their specs)… Which was my concern and why I bought this and not that.
Installation was pretty straight forward, the directions were well written, well drawn, and easy to follow. Everything you need to install it was included in the box, including plenty of thermal paste (More than enough for one application), a wipe to get the old thermal paste off, and a card to spread it (Which you may or may not choose to do). It was also nice that the screws included tension springs, which helps prevent over tightening (If you’re truly determined you could probably overtighten it, so don’t be the hulk here). The installation hardware seemed pretty well machined, and it all just fit together with no fiddling around with anything. One thing I’ll mention, it’s a big chonker, so it may interfere with your ability to get to your fan headers easily so I would plug in any fans BEFORE installing it (Not mentioned in the directions, but you should know). Although it doesn’t hang over my fan headers, based on other fan placement in my case and where they are in my board it cuts down on clearance significantly.
The included long #2 philips magnetic screw driver was a nice touch, I would assume plenty of people don’t have a long enough one to reach down between the fins and tighten those screws… So good on them. It wouldn’t be the first screw driver I’d reach for, but it’s very nice for a freebie.
Dropped cpu max temp by 10 deg. You need a really deep case for this heat sinc
PROS
Comes with are the thermal paste spreader, PWM 1 to 2 fan header adapter, 2x PWM fan header extensions. Very well packaged though it does come in the manufacturer’s box so people can see what it is. Easy to understand and concise manual.
CONS
The brackets are very big so make sure they can fit!
Although it was unnecessary, it came with a screwdriver.
Excelente producto! Es muy grande y pesado por lo que tendrs que verificar si entra en la caja.
Ich habe mich fr den Lfter entschieden da ich leider Wasserkhlungen nicht vertraue, mein alter PC mit seinen Lftern hatte in manchen fllen 70-80 grad. Seitdem ich den Khler installiert habe, habe ich im Leerlauf 25 grad und im vollen Betrieb 50 grad, ein Riesenunterschied noch hlt er was er verspricht deswegen 5 Sterne.
Super quiet at 100% fan speed, just as capable as the Noctua Dh15, and prettier. Highly recommend.
mieux un qu’ AIO watercooling rapport qualit prix performance le maitre en la matire
So as much as I love this cooler lets talk about that chrome finish… it loves finger prints. Performance wise this cooler is top notch. I purchased it for my 3900x and it does a beautiful job. It was relatively easy to install and works very well. Im using corsair vengeance DDR4 ram and it is in my opinion some of the lowest profile ram Ive ever seen and fitting this cooler in a standard atx nzxt case was close. Any heat spreaders at all will impact your ability to fit this cooler in a case. Highest temps ive seen with this cooler is 64c while streaming and open world game with medium preset CPU encoding @900p, so it is very capable and I would guess fine for overclocking. The screwdriver included was magnetic and built the system i bought it with. They included paste and clear instructions as well as a cool case badge and not one of those cheap stickers most companies give you. overall very happy and would purchase again. Its a great buy.
Kit comes with:
All hardware neccessary
4 mounting brackets
1 rear support bracket
6 fan clips
2 fans
2 fan speed reducing cables
1 4-pin splitter wire
1 massive hear sync
Instructions
3.5 oz. Thermal paste
Alchohol cleaning pad
Philips screw driver.
L’unico “ma” per il fatto che veramente grande e soprattutto le ventole sporgono in basso andando a scontrarsi con le RAM pi alte.
Si possono cambiare di posizione ma allora si scontrano con il gruppo di uscite della MB, andando ad interferire ad esempio con gli I/O.
In pratica in certe configurazioni come la mia con G.Skill Trident Z ho potuto installare una sola ventola, sufficiente comunque per gli usi normali.
Per il resto bellissimo.
One of the Best wind cooler, bought for 3900x while keep it around 65C 149F when 100% use
93C to 94.5C you can see that in the pictures.. I also have videos… the DEEP COOL Assassin III ranges from 60C to 75C… My guess is after a couple days it will preform even better… there is also some pictures of the space it took in the Case… I have a AZZO Solano 1000 case (Modded by putting the Fan on the outside) and I am using the MSI Gamer Carbon Pro… And 64G of GSkill Flare X Model F4-3200C16Q-64GFX .. As to RAM CLEARENCE..No need to move the Fan on the Assassin III UP Plenty of clearance see the Picture… You can also see the space between the SYBA SI-PEX40097 PCIE card and the Assassin III My OS is on my Corsair Force MP510 M.2 2280 960GB F960GBMP510
Now finally I can use it for what I intended without Crazy High Temps…
PS: I put the Badges on after I took the Pictures…
Cons… None.. except I had to figure out how to apply the badges…
Feb 3 2020.. I updated the Power Plan to Ryzen Balance and my numbers now running Handbrake is 49C I am AMAZED
Ich habe den Assassin 3 Luftkhler seit 1/4 Jahr. Lieferung als auch die Verpackung und Montage ging schnell, einfach und zuverlssig ich setzte letztlich meine eigene Flssig metall paste zum Einsatz. Optisch sieht es sehr gut aus und pass sehr gut rein im Case. Auch beim RAM geachtet. Das Ding ist so gro und effizient das es nicht ntig ist die Lfter schnell drehen zu lassen und gleichzeitig ein Sylent draus zu machen. Statt 1x 120mm habe ich jetzt 2x 140mm Lfter fr den Ryzen 7 3700x in OC bei 4,3 GHz. Beim Zocken nie mehr als 69 Grad Celsius auch im normal Betrieb in mein groen Case zwischen 28 bis 50 Grad Celsius. Schraubendreher, und andere Aufstze plus Anleitung und W Paste dazu. Das alles, habe ich gerade fr 89 in Angebot bekommen im Nov. 2019 und viel gnstiger als ne Wasserkhlung, kein Wasser, Pumpe, nachfllen, Lautstrke und dennoch einiges gnstiger.
Double check all the clearances (height of RAM and space between back of GPU and the cooler itself). It was really quick and easy to mount this cooler. Has a real nice gloss black and chrome look to it.
I personally don’t like AIO cause I’m terrified that something catastrophic will happen that’s why I went with Deepcool cause it handles my 9900k 5GHz with no problem it’s only a few celcius behind the premium AIOs out there
I’ve built a few PCs over the last 20 years. Some for me, some for friends. This is the simplest install of a cooler I’ve seen. This was the part that scared me before building, the CPU and cooling. I’m comfortable with it now and this made it even easier. It’s almost fool proof.
On the cooling end, I have an i9 9900k which runs pretty hot. I usually go all in one water cooling but decided to try this, this time. It really holds its own. Did a stress test on the CPU and it topped out at 70 degrees. That leaves a little room for overclocking if I feel so inclined someday (maybe I’ll update this with those results).
It is large however, but if you have or are willing to buy a case big enough to fit it, I wouldn’t hesitate. Even if you’re new to building a PC, I have a hard time picturing someone messing this up.
