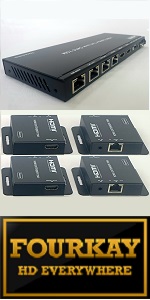

FOURKAY 1×4 1080p 70m HDMI Splitter over Cat5e/6/7 Extender with 4 PoC Receivers, HDMI Loop Out and Infra Red control of TV source from each remote display
Distribute 1 HDMI source with a resolution of up to 1080p to any 4 remote display devices over Cat5e/6/7 Ethernet cable and to 1 local display via HDMI cable connected to the HDMI loop out port. The system has a transmission range of up to 70m for HD resolutions up to 1080p when using CAT6 or above.
The remote receivers are powered over cable (PoC) from the transmitter which means that no additional power source is required at the display end. The PoC feature is one way – the transmitter can not be powered from the receiver end. This system supports one way IR control signal pass-through which allows the user to control the TV source from in front of any of the remote displays. The required IR receiver and emitter cables are all included.

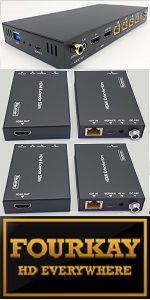

The system is HDCP1.4 and HDMI 1.4 compliant and will transmit Sky, Virgin, Freeview, Freesat and other HD sources. If you intend to distribute 4K UHD content such as SkyQ UHD, Virgin UHD or other 4K channels you will need a 4K system like the FOURKAY 1×4 4K@60Hz Splitter Extender (Amazon ASIN B08DYGNZBJ)
- HD video up to 1080p resolution can be transmitted to a distance of 70 meters
- HDMI 1.4 and HDCP 1.4 compliant
- Power over Cable receivers
- Infra Red pass back
Features
Connect up to 5 Displays
Split an HD signal to four remote displays using the UTP receivers and to one additional display via the HDMI loop out port.
One Way Infra Red Remote Control
Control your TV source (eg Sky box) from from in front of the remote TVs using the supplied IR cables.
Power over Cable
The receivers are powered by over the Ethernet cable which means no extra power sockets are required at the remote TVs.
WHAT’S IN THE BOX?
- 1×4 HDMI over CAT Splitter
- 4x UTP Receivers
- 12V/2.5A DC PSU
- 4x Infra Red receivers
- 1x Infra Red emitter
- Wall mount ears
- User Manual
TECHNICAL SPECIFICATIONS
| Transmission Distance | 1080p@60Hz up to 70m |
| Supported Video Resolutions | 480i~1080p @ 50/60Hz |
| Supported Audio | LPCM 7.1CH, Dolby True HD, DTS-HD Master Audio |
| Compliance | HDMI 1.4 & HDCP 1.4 |
| Video Bandwidth | 297MHz / 10.2Gbps |
| Colour Depth | 8-bit, 10-bit, 12-bit |
| Colour Space | RGB, YCbCr_4:4:4/4:4:2 , YUV_4:2:0 |
| Splitter Dimensions | 210mm x 83mm x 18mm Weight – 448g |
| Receiver Dimensions | 79.5mm x 69mm x 16.5mm Weight 130g |
| Power Supply | 12V / 2.5A DC Power Supply |
 |  |  |  | |
|---|---|---|---|---|

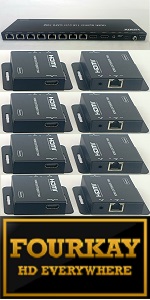

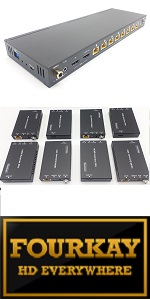

| Max Resolution | 1080p | 1080p | 4K@60Hz | 4K@60Hz |
| HDMI Loop Out | ✓ | ✓ | ✓ | ✓ |
| Audio Extraction | no | no | ✓ | ✓ |
| Included Receivers | 4 | 8 | 4 | 8 |
| Range at 4K | n/a | n/a | 35m | 35m |
| Range at 1080p | 70m | 70m | 60m | 60m |
| IR Remote Pass Back | ✓ | ✓ | ✓ | ✓ |
| Dimensions: | 26.5 x 20.2 x 9.3 cm; 1.5 Kilograms |
| Manufacture: | FOURKAY |
| Origin: | China |
Well built units and is driving 3 TV’s, one of which has always been a problem in getting a stable signal. We have tried using individual sender units to resolve this, but have never found anything that could, until replacing all 3 units with this one and replacing the receivers with the ones provided with the unit. Now have a perfect picture on all 3 screens
I’m absolutely thrilled with the performance of the FOURKAY 1×4 1080p 70m HDMI Splitter over Cat5e/6/7 Extender with 4 PoC Receivers. It has proven to be an outstanding solution for our business needs, particularly in splitting the output from our CCTV NVR over four different monitors. This product has exceeded our expectations.
Moreover, when we encountered a minor issue, I reached out to the business owner for assistance. As it turns out, the problem wasn’t with the product supplied, but rather with our CCTV NVR. Nevertheless, the business owner provided a swift and effective response to address our concerns, leaving us thoroughly impressed with their customer service.
I am more than pleased with this purchase and the exceptional support we received. I wholeheartedly endorse this small business and look forward to supporting them again in the future. Thank you for a fantastic product and exceptional service.
Daniel
BS Honey Bees Ltd
I had never used this technology before, but had the need to have multiple TVs in perfect sync around my pub for the Rugby.
Next day delivery and couldn’t have been easier. Simply plugged in, connected the LAN cable, turned on and boom. Great product, fantastic solution. Couldn’t be happie
Great for sending a HDMI signal over cat5/6 to upto 8 TVs / monitors
I used it to send CCTV output to 6 TVs
I’m a professional TV and digital services engineer, and can say that this is one of the best HD splitters that I have used, and I have used many,, The easy of connection is first class with the transmitter powering the receivers, so no need for a separate power supply at each TV, I used it in a night club, with the average cable lengths being 25 meters, but I’m sure it would do the listed distance as documented, the dip switches allows for switching 1080i 1080p etc, depending on the output source.
Definitely recommend this product, especially at the price, as pro grade equivalents are 3 times the price, and work exactly the same way.
