Hakko FX8804-02 Hot Tweezers
For over 60 years, Hakko Corporation has been producing superior quality soldering and de-soldering tools, hot air rework stations, smoke and fume extraction systems and a wide assortment of accessories and related equipment for the electronics, industrial and hobby industries.
Designed and manufactured in Japan, Hakko tools are precision engineered for quality and reliability, you can trust the Hakko brand to go the extra mile.
Always ensure your purchase is a genuine Hakko product.

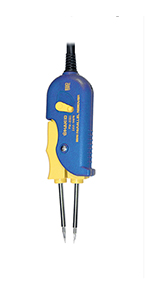

FX-8804 Hot Tweezers for Rework
Rework tool for Hakko soldering stations
The Hakko FX8804 hot tweezers are designed for the easy removal of surface mount components by directly heating both ends/sides of the device without damaging any surrounding components. It easily removes SMD chip components and Dual In-Line devices up to 25mm long. Compatible for use with Hakko Stations FX-888D, FX-889, FR-701 and FR-702.
The FX8804 includes the standard A1378 (2mm) Tips, however a wide range of tip sizes are available to purchase separately.
- Hot Tweezers for SMD rework 65W AC 26V
- High quality Japanese Design
- Compatible with the FX-888D, FX-889, FR-701 and FR-702
- Light Weight, ergonomic design
- 200ºC to 400ºC Temperature range
- Tweezers and A1378 (2mm) Tips Included
- 15 Tip variations available to purchase separately
| | | | |
|---|---|---|---|
Directly Heats Components for RemovalThe tweezer mechanism allows heat to be applied directly to the SMD component which is to be removed. | Prevents Damage to Nearby ComponentsIdeal for densely populated boards, the FX8804 prevents damage to nearby components as you might find by using traditional soldering irons for rework. | Select the Right SizeSelecting the most accurate size of tip will significantly improve performance and reduce costs. There are numerous benefits to getting the right-sized tip. Most importantly, heat will be more efficiently transferred to the work piece, which offers easy wetting by the solder. | Easy Tip Change MechanismThe FX8804 features an easy change mechanism for swapping out different size tips. An in-built clip ensures that the tips always remain aligned even after changes. |
 |  |  |  |  | |
|---|---|---|---|---|---|

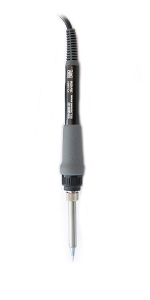

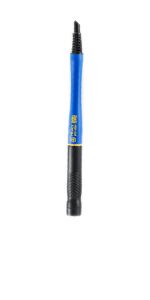

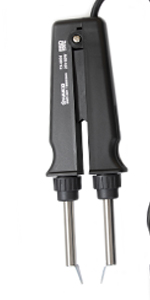

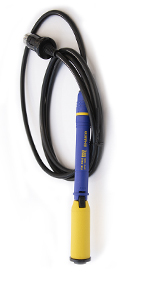

| FX8801 | FX8804 | FM2028 | FM2032 | FM2022 | |
| Main Purpose: | Soldering | SMD ReWork | Soldering | Micro Soldering | SMD ReWork |
| Tip Shape Required | T18 | See Product Page | T15 | T30 | T16 |
| Suitable for FX-888D / FX-889 | ✓ | ✓ | |||
| Suitable for FX951 / FX-952 | ✓ | ✓ | |||
| Suitable for FM203 / FM-206 | ✓ | ✓ | ✓ | ||
| Suitable for FR-701 / FR-702 | ✓ | ✓ | |||
| Suitable for FM-204 | ✓ |
| Weight: | 202 g |
| Dimensions: | 24.7 x 6.6 x 4.1 cm; 202 Grams |
| Model: | FX8804-02 |
| Part: | FX8804-02 |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Manufacture: | Hakko |
| Quantity: | 1 |
This listing seems like it should be a knockoff, but as far as I can tell it’s genuine. Haven’t played with it much, but it does work. Mine came with an assortment of other hakko tips that do not go with this hand piece. Some are for a regular fx888d some are for another iron that i am not familiar with….
These are indeed accurate if you know the job you’re doing and choose the correct tips. It’s not a case of one tip does all, this isn’t the iron for that. You need to dish out 30+ quid on each other size oftips. That’s the reason why I’ve marked it down on ‘value for money’ as the tips are quite expensive and if you’re serious about electronic repair/manufacturing, you’ll need more than one size !
