Hopopular 6000N/1320LB Linear Actuator 12 Inch Linear Actuator Stroke 300MM DC 12V Electric Motor Stroke Heavy Duty Linear Actuator with Mounting Brackets (12V 12″) XXZXQ6000NXC300MM
Key Features
| | | |
|---|---|---|

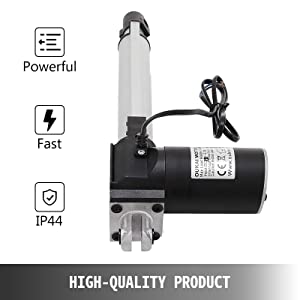

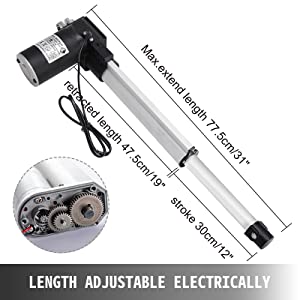

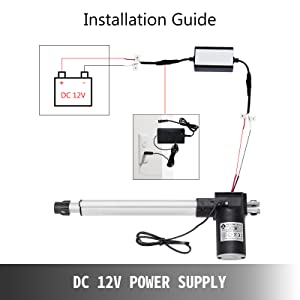

High-Quality ProductDC 12V electric actuator can run stably and has an excellent performance. Quicker than most products and has IP44 level protection. | Length Adjustable ElectricallyThis actuator supports both the retraction and extension movement of the electric device. 6″ stroke length, 18.7″ retracted length, and 30.5″ extended length. | DC 12 V Power SupplyThis actuator should be connected to DC 12V power supply to protect the motor and central parts of the electronic device. |
| | | |
|---|---|---|

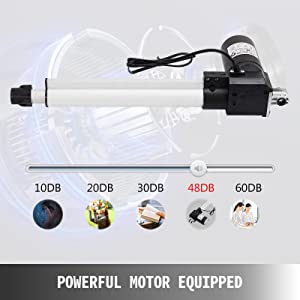

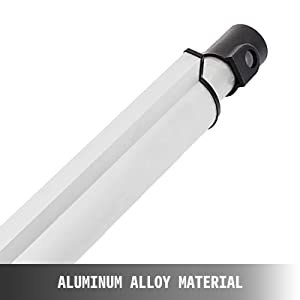

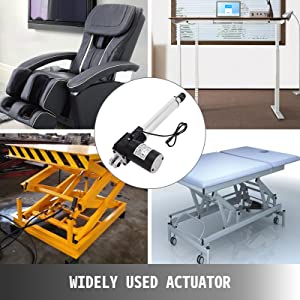

Powerful Motor EquippedWe deploy a heavy-duty 6000 N motor for lifting or down. It travels at 5 mm/s speed, while silent on working. | Aluminum Alloy MaterialThis product adopts the excellent aluminum alloy case, which is thick, sturdy, and powder-coated on the surface for anti-rust. | Wide Application PlacesIt can be used for some heavy works in different fields like home furniture, hospital & health care, industry, etc. |
Specifications
- Stroke Length: 300 mm/12″
- Max. Pushing Force: 6000 N
- Max. Pulling Force: 4000 N
- Travel Speed: 5 mm/s
- Input Voltage: DC 12 V
- Min. Retract Length: 475 mm/18.7″
- Max. Extend Length: 775 mm/30.5″
- Material: Aluminum Alloy
Package Content
- 1 x Linear Actuator
- 2 x Mounting Brackets
- 1 x Bolt Set
6000 N Heavy-Duty Actuator
DC 12V linear actuator is used to get the purpose of moving things in a straight line(up and down, or side to side). Our 12″ product is a robust and reliable actuator with 6000 N power. It has built-in limit switches and designed with IP44 level protection. It is suitable for a massage sofa, recliner, TV lifter, lifting table, electric window opener, etc. Quite a practical device for heavy-duty works.
- Premium Quality
- Retract & Extend
- Powerful Motor Run
- Quick & Easy Assembly
| Dimensions: | 52 x 17 x 11 cm; 2.58 Kilograms |
| Model: | XXZXQ6000NXC300MM |
| Manufacture: | Hopopular |
| Origin: | China |
