LENVII R777 Portable Barcode Scanner with LCD Wearable Mini Bluetooth 2.4G Wireless Wired Barcode Reader Support 1D 2D QR-code for Logistics, warehousing, supermarkets, mobile scanning(Black)
LENVII Wireless Color Screen Portable 2D Bluetooth Barcode Scanner
Designed to be easy and fun to use. A perfect tablet scanning companion. That’s the LENVII R777 wireless area-imaging pocket barcode scanner.
Quickly pair the scanner with your iOS, Android or Windows Mobile device, or a standard PC or laptop equipped with Bluetooth wireless technology.
QR code scanner virtually all 1D and 2D barcodes , pocket scanner is ideal for a variety of tablet-based applications, including: Fixed point-of-sale Mobile point-of-sale Inventory management Backroom/stockroom In-store customer engagement Non-retail scanning applications.
| | | |
|---|---|---|

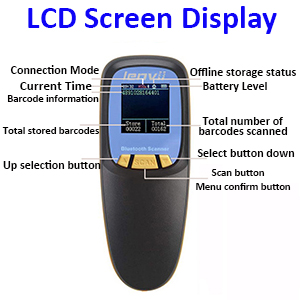

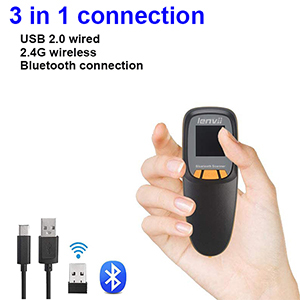

3 in 1 ConnectionWorks with Bluetooth Wireless 2.4G Connection USB 2.0 Wired Transmission and Charging | LCD Screen Display ContentConnection mode. Battery level Current time Barcode information Total stored barcodes | Support Barcode Type1D Barcodes:UPC, EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5，MSI, GS1, Codabar 2D Barcodes:PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code etc. |
| | | |
|---|---|---|

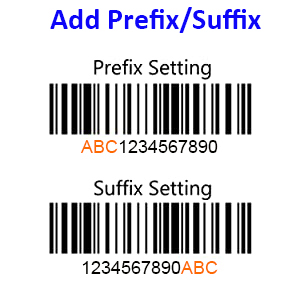

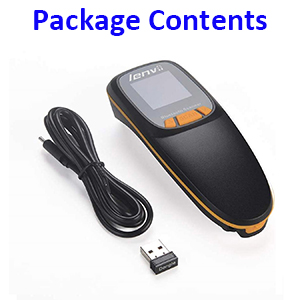

1500mAh Battery1500mAh rechargeable battery, the scanner has a 10 hours of continuous scanning. It can work about two weeks in daily used after full charge. It takes 5 to 7 hours to full charge the scanner. | Add custom prefixes/ suffixesAdd custom prefixes/ suffixes, delete characters. * Add keyboard keys/ combinations (terminator TAB, CR&LF, Home etc.) * Enable or disable the barcode type as you want. * Turn on/off the beep， change the capital/lower case | Package Contents*1 x Mini Barcode Scanner *1 x USB/Type-C Cable *1 x User Manual *1 x Bluetooth/Wireless Receiver *1 x Lanyard |
Suitable for various environments
This barcode scanner could be used in library, file management, inventory tracking, POS(point of sale), etc.
LENVII Mini Wireless 2D Barcode Scanner Portable QR Barcode Reader, Compatible with Bluetooth and 2.4G Wireless
Operating parameters
Image (pixels) 640 pixels (horizontal) * 480 pixels (vertical)
Light source aiming: 617 nm LED; Illumination: 4000K LED
Image sensor CMOS
Scanning speed 30fps/s
Filling depth 40-200mm @ UPC / EAN13mil PCS = 90%; 20-250mm @ QR 20mil PCS = 100%
Scanning angle elevation angle 65°/tilt angle 30°/deflection angle 55°
Field of view horizontal 34°, vertical 28°
Reading resolution exceeds 5 million
Print contrast exceeds 25%
Visual indicator blue LED light, red charging light and buzzer
Communication mode 2.4G, blue BLE4.0 and TypeC
Communication distance 2.4G: 100 meters (open air), Bluetooth: 40 meters (open air)
Memory capacity up to 512000 bits (35000 EAN 13 codes)
Physical characteristics
Size: 135mm * 51mm * 40mm (length * width * height)
Weight: 104 grams
Packing box size: 175mm * 105mm * 46.5mm (L * W * H)
Material ABS + PC
Cable: TypeC cable
Power parameters
Input voltage: 5VDC±10%
Working current: 400mA
Battery: Rechargeable lithium battery 1500mAh
Charging model: C-type cable charging
Drop durability design, can withstand a drop of 2 meters
Support barcode type
1 D: UPC/EAN/JAN.UPC-A and UPC-E, EAN-8 and EAN-13, JAN-8 and JAN-13, ISBN/ISSN, code 39 (with full ASCII), Codabar (NW7), Code 128 & EAN 128, code 93, interleaved 2 of 5 (ITF), appendix 2 of 5 IATA code, MSI/Plessy, Chinese postal code, code 32 (Italian Pharmacopoeia), RSS 14, RSS Limited, RSS extension.
2D: QR code, data matrix, PDF417, Aztec, Maxicode, GS1 DataBar stack.
| Dimensions: | 13.5 x 5.2 x 4 cm; 190 Grams |
| Model: | R777 |
| Batteries Included: | 1 Lithium ion batteries required. (included) |
| Manufacture: | LENVII |
| Origin: | China |
