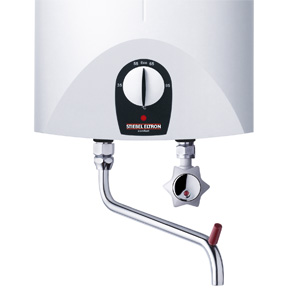

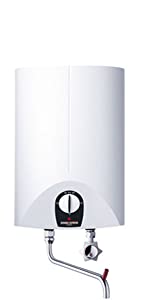

Stiebel Eltron 222192 SN SL GB Small Electric Water Heater, with Opella Tap + Outlet spout, 10 litres, pressurised Appliance, oversink, 2000 W [Energy Class A]
SN SL GB
German Engineering
As an experienced innovator, we rely on our own expertise at every stage of development – from the initial design right through to the manufacture of the finished appliance.
COST-EFFICIENCY MEETS CONVENIENCE
Small water heater
SN SL appliances are suitable for supplying individual draw-off points, e.g. to supply a sink in the utility room or in the kitchen. Oversink installation.
Open outlet (vented) water heater to supply one draw-off point, only use non-pressurised taps. Unit must be fitted with the vented taps provided.
Any constant temperature can be selected from 35 °C to 82 °C or 85 °C for hot water available at all times.
- Extensive range of taps available as accessories
- Appliance versions with 5, 10 or 15 litre capacity
- Power cable for permanent connection, approx. 1 m
- Heating output 2.0 kW or 3.3 kW (depending on model)
- Non-pressurised appliance for rapid DHW availability without delay
Specials
- Low standby energy consumption
- Robust copper tubular heater with low surface load for a long service life
- High-grade thermal insulation with the lowest heat losses
- Active protection circuit for safety-first installation
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Rated capacity [l][l] | 5 – 10 – 15 | 10 | 5 | 5 – 10 | 15 | 10 – 15 |
| Installation | oversink | undersink | undersink | undersink | oversink | undersink |
| Rated output [kW] | 2.0 – 2.0 – 3.3 | 2.0 | 2.0 | 2.0 | 2.0 | 2.0 |
| Rated voltage [V] | 1/N/PE~230 50 Hz | 1/N/PE~230 50 Hz | 1/N/PE~230 50 Hz | 1/N/PE~230 50 Hz | 1/N/PE~230 50 Hz | 1/N/PE~230 50 Hz |
| Anti-drip function | – | – | ✓ | – | – | – |
| Thermostop function | – | ✓ | ✓ | – | – | – |
| Fuse [A] | 10 – 10 – 16 | 10 | 10 | 10 | 10 – 10 | 10 – 16 |
| Height/Width/Depth [mm] | 421/263/230 – 503/295/275 – 601/316/295 | 503/295/275 | 421/263/230 | 421/263/230 – 503/295/275 | 601/316/295 | 430/280/270 – 452/320/318 |
| Vented / unvented | vented | vented | vented | unvented | unvented | unvented |
| IP-Rating | IP 24 D | IP 24 D | IP 24 D | IP 24 | IP 24 D | IP 24 D |
| Weight: | 6.12 kg |
| Size: | 10 litre |
| Dimensions: | 27.5 x 29.5 x 50.3 cm; 6.12 Kilograms |
| Model: | 222192 |
| Part: | SN 10 SL GB |
| Colour: | Oversink |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | Stiebel Eltron Gmbh |
| Colour: | Oversink |
| Quantity: | 1 |
| Size: | 10 litre |
| Volume: | 10 litres |
