Airflow iCON60 Circular Extractor Fan for Large Bathroom, Utility Room or Kitche
Airflow Developments
Pioneers in Ventilation since 1955.
For over 60 years, Airflow has been forging a path of leading innovation in the design and manufacture of ventilation systems and air measuring instruments.
iCON Range
Stylish ventilation for the home
For a sleek and stylish addition to any home, why not choose an extractor fan from the iCON range? iCON’s unique design ensures effective ventilation, which is quiet and uses minimal energy, for various applications.
The design includes iCON’s plug-in module concept, which allows you to create a fan to suit your specific needs.

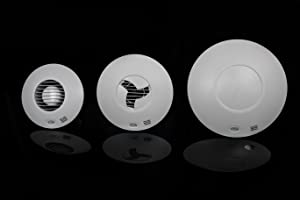

iCON’s round design means fitting on the wall or ceiling is simple, and with three versions, this provides a suitable fan to install in any room, large or small.
- Up to 32 l/sec flow rate
- 12V Safety Extra Low Voltage (SELV) versions available to provide extra safety and peace of mind at home.
- The unique iCON iris shutter opens and closes silently whilst helping to prevent backdraughts from outside.
- Why we need to Ventilate:
- AIRTIGHT HOMES: Modern dwellings are designed with increasingly reduced air infiltration rates and higher levels of insulation making them almost completely sealed.
- MOULD: Unchecked levels of moisture and relative humidity will lead to mould growth and Inhaling these spores can trigger health issues, so extracting moist air is important.
- CONDENSATION: Dampness is a huge problem in the U.K. Damaging to both humans, and to the fabric of buildings, condensation leads to streaming windows and walls and ultimately to mould.
Adding stylish ventilation to your home is as easy as 1, 2, 3
| | | |
|---|---|---|
1 – Select your fanUse the chart below to find a suitable iCON fan for your needs
| 2 – Select your control moduleThe unique iCON module concept gives you the option to determine how you wish to control your fan.

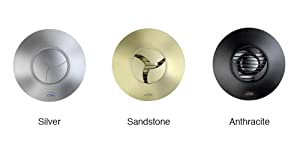

| 3 РSelect your coloured coverTo complement the d̩cor of your home, we also offer the flexibility to upgrade the standard white cover.
|
 |  |  |  |  | |
|---|---|---|---|---|---|
| Model | iCON 15 – 72683501 | iCON 30 – 72591601 | iCON 60 – 72591701 | iCON15s – 72683701 | iCON 30s – 72683801 |
| Toilet Ventilation | ✓ | – | – | ✓ | – |
| Bathroom Ventilation | ✓ | ✓ | – | ✓ | ✓ |
| Utility Room Ventilation | – | ✓ | – | – | ✓ |
| Kitchen Ventilation | – | – | ✓ | – | – |
| Flow Rate (l/sec) | 19 | 32 | 78 | 21 | 37 |
| Sound Level | 28.8 | 33.3 | 41.6 | 32.4 | 36.2 |
| Power (W) | 9.4 | 15.5 | 66.3 | 6.1 | 12.2 |
| IP Rating | IPX4 | IPX4 | IPX4 | IPX4 | IPX4 |
| Dimensions (mm) | 197x197x108.5 | 225 x 225 x 144 | 280 x 280 x 165 | 197 x 197 x 108.5 | 225 x 225 x 144 |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

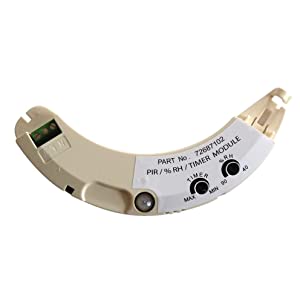

| Module Name | Pull Cord – 725736022 | Timer – 72612601 | Humidity Timer & Pull Cord – 72687103 | Motion Sensor Timer – 72687104 | Pull Cord & Timer SELV – 72574204 | Humidity Timer & Pull Cord SELV – 72574202 |
| Pull Cord | ✓ | – | ✓ | – | ✓ | ✓ |
| Adjustable Timer | – | ✓ | ✓ | ✓ | ✓ | ✓ |
| Adjustable Humidity | – | – | ✓ | – | – | ✓ |
| Motion Sensor | – | – | – | ✓ | – | – |
| iCON Fan Model | iCON 15, iCON 30, ICON 60 | iCON 15, iCON 30, ICON 60 | iCON 15, iCON 30, ICON 60 | iCON 15, iCON 30, ICON 60 | SELV iCON 15s and iCON 30S | SELV iCON 15s and iCON 30S |
iCON Frequently Asked Questions
Who can install my iCON fan?
All electrical installation must be carried out by a qualified electrician in accordance with Approved Document Part P of the U.K. Building Regulations and to the latest IET standards, or the appropriate regulations in the country of installation. All fans must be installed in line with the manufacturer’s installation instructions provided to ensure the fan has been installed correctly, allowing for performance of the fan.
How do I clean my iCON fan?
SAFETY FIRST: ALWAYS ISOLATE THE FAN UNIT FROM THE POWER SUPPLY BEFORE DOING ANY WORK ON THE FAN/MODULE.
The fan and ducting should be inspected and cleaned on a regular basis to keep fan performance at an optimum level. The external housing of the fan can be wiped clean with a damp cloth. Do not use household cleaners containing abrasives. Cleaning of internal parts such as the impeller should be carried out by using a soft brush. Never clean any parts of the fan assembly by immersing in water or using a dishwasher.
Which type of ducting is suitable to use with the iCON?
Both Rigid and Flexible ducting can be used with the iCON fans. When installing ducting, it must not be damaged or blocked. Where flexible ducting is used it must be pulled taught to avoid system pressure build up and noise.
How does the iCON iris/shutter open and close?
The iris/shutter opens by activation of a wax brown actuator mechanism. Upon switching the fan on, the actuator is heated and pushes onto a white plastic clip, which in turn opens the fan iris/shutter.
After installing the fan, ensure to power off and allow the actuator to fully retract for approx. 2 minutes, before attempting to fit the cover, this will permit the iris/shutter to function correctly.
| Weight: | 2.62 kg |
| Dimensions: | 28 x 28 x 16.5 cm; 2.62 Kilograms |
| Model: | 72591701 |
| Part: | ICON 60 |
| Colour: | White |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | Airflow |
| Colour: | White |
| Quantity: | 1 |
