Bosch Professional 0601063L00 Laser Level GLL 2-10 (Red laser, Working Range: Up to 10 m, 3 x Batteries AA, Pouch)
-
Many applications in a short working range

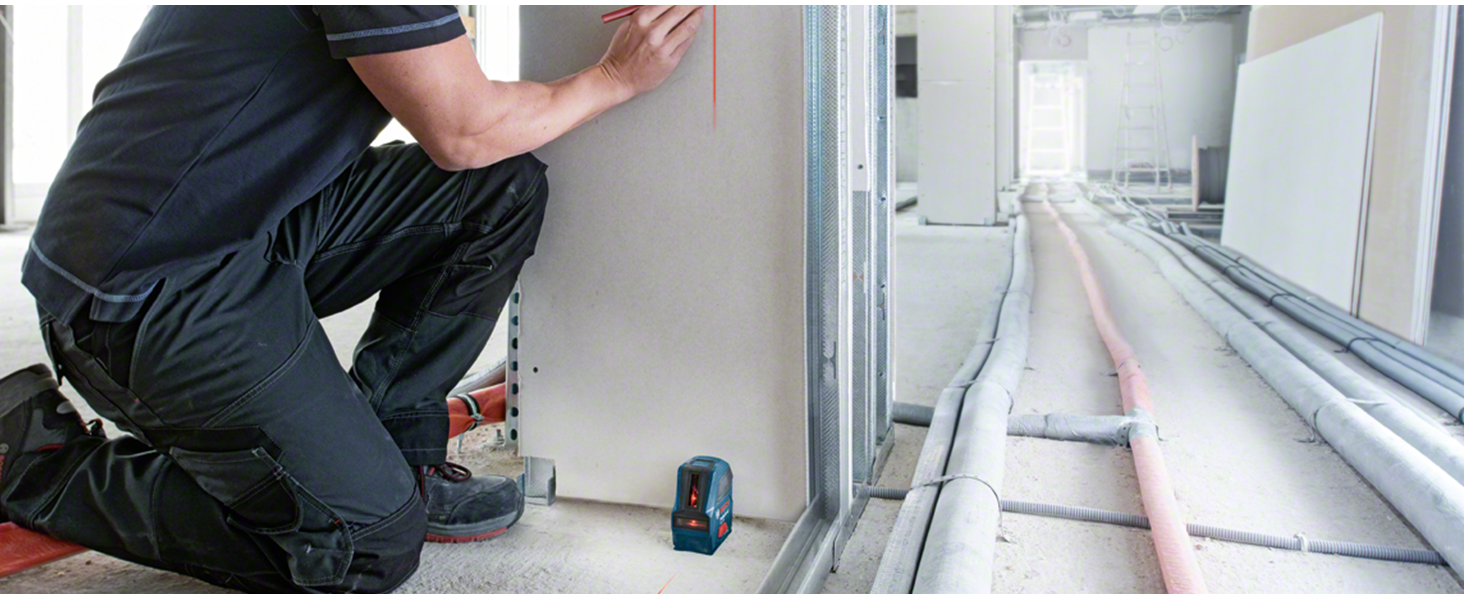

The device is highly flexible thanks to one vertical and one horizontal line. It is ideal for installing handrails or cabinets, laying tiles and aligning pipes or light switches.
-

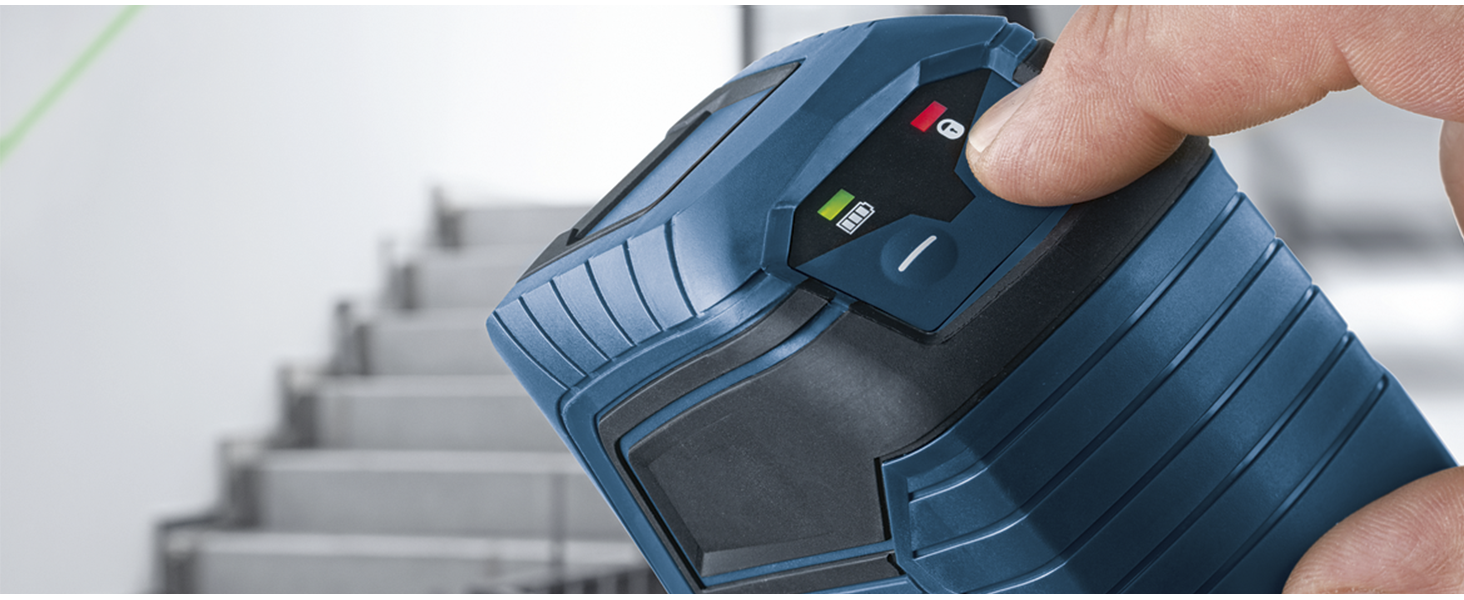

Easy-to-Use
The GLL 2-10 has a switch and easy-to-use two-button keypad to switch through laser configurations. A LED light shows battery indications and lock mode.
Two Tripod Threads
The device contains two separate tripod threads, a ¼“ and 5/8“ for use with a range of tripods and other accessories.
Precise Results
This measuring tool delivers precise results with an accuracy of ± 0.3 mm/m*.
*plus use-dependent deviation
Self-Levelling
To reduce the need for manual adjustments, the device can self-level on non-level surfaces up to ± 4°
Power Source
The device can be operated with 3 x AA Alkaline batteries.
GLL 2-10
| | Horizontal Line | |
| | Vertical Line | |
Plumb Function | ||
Red | Laser Colour | Green |
Up to 10m | Working Range | Up to 10m |
IP54 | IP Protection | IP54 |
| | Horizontal Line | |
| | Vertical Line | |
Plumb Function | ||
Red | Laser Colour | Green |
Up to 10m | Working Range | Up to 15m |
IP54 | IP Protection | IP64 |
| | Horizontal Line | |
| | Vertical Line | |
Plumb Function | | |
Red | Laser Colour | Red |
Up to 10m | Working Range | Up to 15m |
IP54 | IP Protection | IP54 |

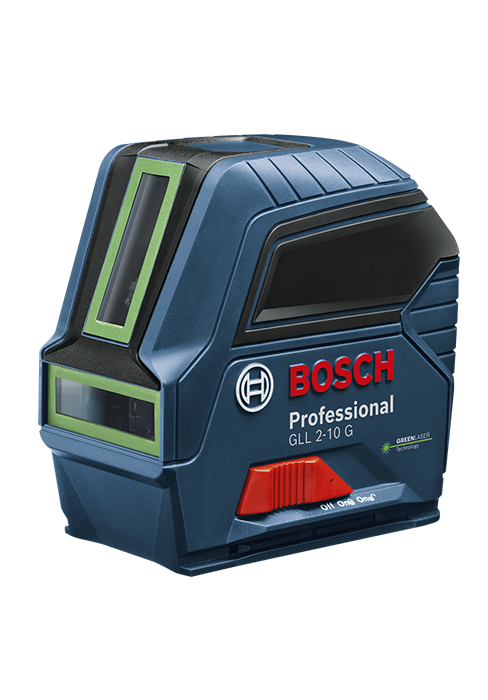

- GLL 2-10 G

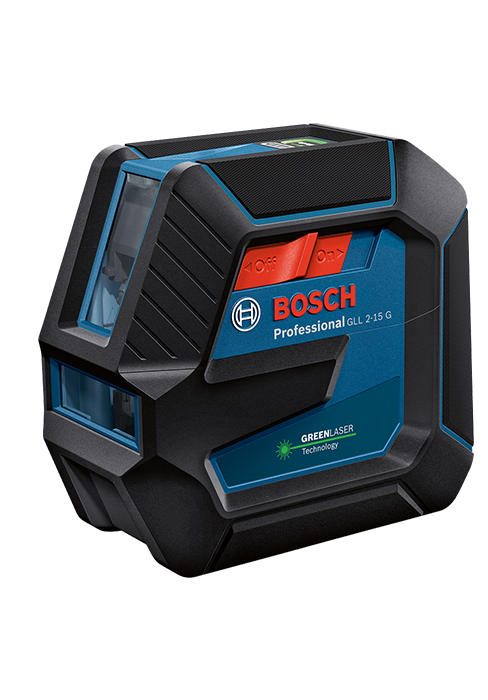

- GLL 2-15 G

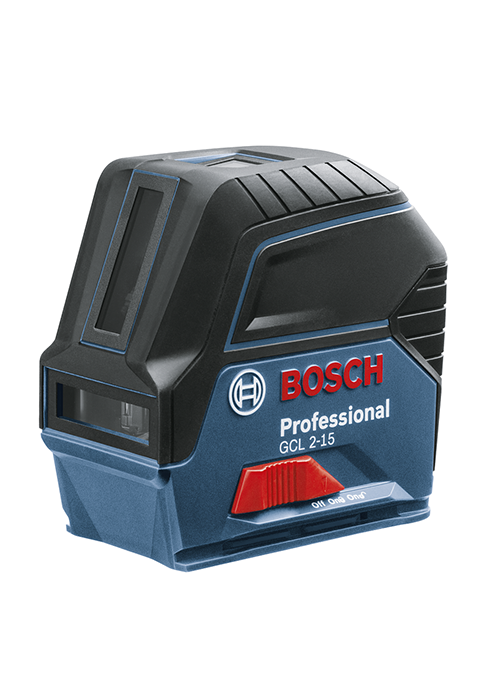

- GCL 2-15
Does the GLL 2-10 project a cross on the ground or ceiling?
The laser projects a cross only on the opposite wall.
How does the slope mode work?
In order to use the slope mode, the tool needs to have the switch in the “on pendulum lock” position. From that moment, the laser lines will blink slowly for the user to know that the tool is not self-levelling.
Does the GLL 2-10 work with a receiver?
This unit does not work with a receiver as it does not have a pulse receiver mode feature, and it is thought for short distances up to 10 m.
Does the device have a pendulum lock?
Yes, the device has pendulum lock for safe transport (when the tool is turned off) and it enables the slope mode function (when the tool is on).
Can the laser be mounted on a tripod without additional accessories?
Yes, the line laser can be mounted on a wide range of tripods. There is a 1/4’’ and a 5/8’’ thread at the bottom of the GLL 2-10
| Weight: | 490 g |
| Dimensions: | 11.2 x 5.5 x 10.6 cm; 490 Grams |
| Model: | 0601063L00 |
| Manufacture: | Bosch Professional |
