Huepar Laser Level 5011G, Green Line Laser with Pulse Mode, USB Rechargeable, Cross Line Self Leveling Line Laser Level with Large Fan Angle, Portable Laser Level with 360Â° Magnetic Rotating Base

WHY HUEPAR — We Continue To Commit ACTION

Adopt the latest technology to take the product quality to the next level
Consistently provide on-time services to our customers
Train and develop talented people with strong work ethics to deliver effective performance
Improve and enhance engineering designs to ensure product performance
Optimize management systems and increase productivity
Never forget our customer needs

Laser Beam: Green Beam
Projection: 2 Green Laser Lines (Line switching function is not applicable)
Laser Class: Class 2 (IEC/EN60825-1/2014), <1mW power output
Laser Wavelength: 505-520nm
Horizontal / Vertical Accuracy: Â±3mm/10m
Leveling / Compensation Range: 3.5Â° Â± 0.5Â°
Leveling Time: 3s
Working Distance: 25m (100 LUX), 50m with Huepar Laser Detector LR-5RG / LR-6RG
Operating Time & Power Source: 10 hours with built-in Li-ion battery 3.7V / 1500mAh
Mount Size: 1/4″-20
IP Rating: IP54, waterproof, dustproof and shockproof, reliability and robustness
Operating Temperature: Between -10â„ƒ and +50â„ƒ
Storage temperature: Between -20â„ƒ and +70â„ƒ
WARNING: Do not point the laser beam directly into the eyes. The device is a laser class 2 laser product according to IEC / EN60825-1 / 2014. It is allowed to use the device without any further safety precautions. The eye protection is usually secured by aversion reactions and blink reflex.

Self-leveling mode:

When the laser tool is switched to the unlocked position, the self-leveling mode is enabled.
The laser beam will flash when the tool is beyond self-leveling range 3.5Â° Â± 0.5Â°.

Manual mode:

When the pendulum lock is in the locked position, you can place the laser tool at any angle to project non-level straight lines.
The laser beam will blink every 3-5 seconds to remind you that it’s not self-leveling now.

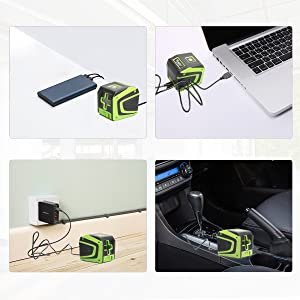

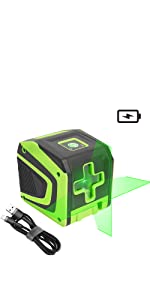

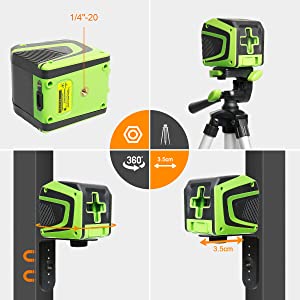

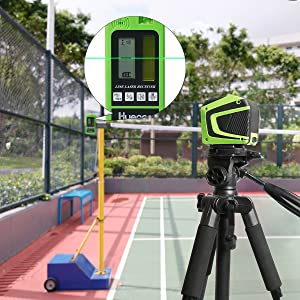

Built-in Rechargeable Lithium Battery: 3.7V / 1500mAh Li-ion Battery: Provides up to 10 hours of continuous power uptime when fully charged. Type-C Charging Port: The laser level can be charged by laptop, power bank, car charger, etc. With the power protection function, you can use your Android phone’s charging cable and adapter to charge the laser tool. It is recommended to charge for more than 4 hours before using.	Outdoor Power-saving Pulse Mode: When switch to pulse mode, the brightness of the laser line will be reduced to extend the working time and relieve eye strain. Extends the laser range up to 50m with Huepar Line Laser Detector (ASIN: B07L59G72J) in bright-light or outdoor conditions. It is compatible with Huepar LR-6RG/LR-5RG Line Laser Detector only.	Easy to Use: 1/4″ threaded mount: The cross line laser comes with 1/4″ female thread, allowing it to be attached to tripod or other mounting bases for positioning. Magnetic pivoting base: With a metal L-shaped pivoting base that can be adsorbed onto metal, providing 360Â° free rotation and adjustments front and back within 3.5cm to fit different angles required.

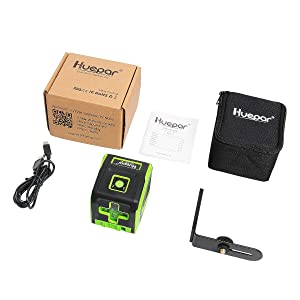

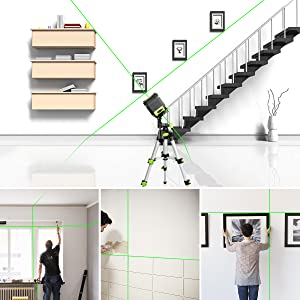

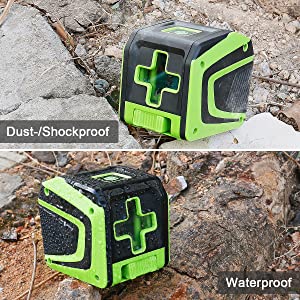

It will be your helper in daily work: Laying tiles, hanging pictures, hanging chandeliers, installing cabinets, Christmas and other holiday decorations, etc. Power saving mode and built-in lithium battery save users from frequent battery replacement.	Compact & Durable: Huepar laser level is compact and portable that weighs only 360 grams, can be placed in your toolbox or kit. IP54 water/dust-proof ensures you work well under hazardous working conditions.	Package Contents: 1 x Green Laser Level 5011G 1 x Type-C Charging Cable 1 x L-shape Magnetic Pivoting Base 1 x Carry Pouch 1 x Multilingual User Manual

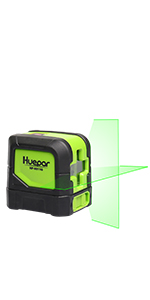

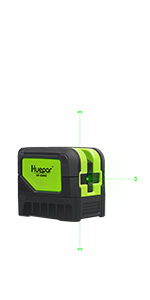

Projection	3 Points	2 Lines + 2 Points	2 Lines	2 Lines	2 Lines	2 Lines
Fan angle	–	H110Â°/ V180Â°	H110Â°/ V110Â°	H105Â°/ V105Â°	H130Â°/ V150Â°	H130Â°/ V150Â°
Accuracy	3mm/10m	H/V :Â±3mm/10m, Up point:2mm/10m, Down point:3mm/10m	Â±3mm/10m	Â±3mm/10m	Â±2mm/10m	Â±2mm/10m
Self-leveling Range	4Â°Â±1Â°	4Â°Â±1Â°	4Â°Â±1Â°	3,5Â°Â±0,5Â°	4Â°Â±1Â°	4Â°Â±1Â°
Line Switchable	–	–	–	–	âœ“	âœ“
Pulse Mode	–	–	–	âœ“	âœ“	âœ“
Reference Working Range	60m	Lines: 25m (100LUX), Points: 60m	30m (100LUX)	25m (100LUX), 50 with Laser Detector	45m (100LUX), 50-60m with Laser Detector	30m (100LUX), 40-50m with Laser Detector
Power Supply	2xAA Batterie	2xAA Battery	2xAA Battery	USB-C / Type-C Charging Port, Built-in Li-ion battery 3.7V / 1500mAh	4xAA Battery	4xAA Battery
Reference Working Time (all laser beams on)	8 hrs	6 hrs	6 hrs	10 hrs	4.5 hrs	11 hrs
Mount Size	1/4″ & 5/8″	1/4″ & 5/8″	1/4″-20	1/4″-20	1/4″-20	1/4″-20
