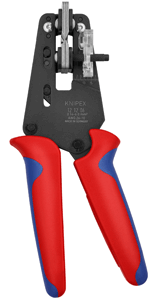

KNIPEX Precision Insulation Stripper with adapted blades (195 mm) 12 12 06
Precision-wire strippers for special insulation materials
Two pairs of blades: division of labour for the desired result
The Knipex 12 12 06 wire strippers have been specially developed for very tough and hard insulation materials which need to almost be cut through entirely so that they can be pulled off. Two pairs of blades cut into the entire circumference of the cable insulation. The blades have been shaped and ground so that the cut gets very close to the conductor. After scoring, one of the pairs of blades remains still and secures the insulation that has been cut into. The other pair of blades strips the insulation to be removed from the cable.
Knipex 12 12 06 precision wire strippers for demanding insulation materials

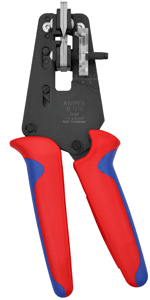

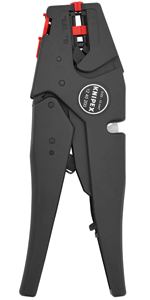

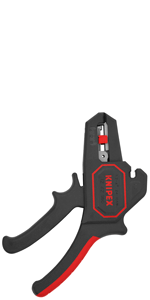

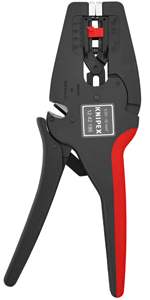

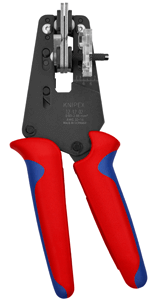

‘Insulation made of materials such as PTFE, silicone, Radox, Kapton and rubber must withstand a great deal, including being heat-resistant and tough. Separating such insulation from single conductors during wire stripping is equally demanding. It is difficult or frequently impossible to achieve clean results using conventional wire stripping tools in such circumstances. With the Knipex 12 12 06 wire strippers, even stripping difficult to remove insulation is achieved accurately and reliably – in one time-saving operation. You can find other Knipex wire strippers from this series for tough, hard, multilayer and fibre-reinforced insulation materials in the table below.’
Insert cable, press pliers closed – cable is stripped
The work saved by these wire strippers is immense. After inserting the cable, the entire wire stripping process takes place as if by itself with one press of the hand. Even insulation materials that are difficult to process are reliably removed with precise and, thanks to the length stop, accurate repeat measurements: an advantage for fitters, e.g. in the areas of energy technology, plant and automotive engineering.
Short overview
- Two pairs of blades cut parallel into the insulation, and remove it with a separating movement
- Wire stripping capacities 0.14-0.25 / 0.75 / 1.5 / 2.5 / 4.0 / 6.0 mm²
- Handles with multi-component Grips
- Length stop easily set by pressing together and sliding for accurately repeated wire stripping
- Spare set of blade available
- Net weight 445 g
Knipex precision wire strippers with adapted blades
They offer good everyday benefits, even with non-everyday insulation materials that are difficult to strip. Precision wire strippers from Knipex protect the conductor in the cable during stripping and, due to their ergonomics and range of functions, make work easier for the user.
The great benefits of the tools and their safe, comfortable use are the results of decades of experience making pliers, continuous development and Knipex’s commitment to high quality standards.
Pliers from Knipex are built for many years of use in a professional environment.
| | | | |
|---|---|---|---|
Spare blade for Knipex 12 12 06They offer good everyday benefits, even with non-everyday insulation materials that are difficult to strip. | Four-blade principle: step 1Two pairs of blades cut into the entire circumference of the hard, tough insulation with a circular cut. | Four-blade principle: step 2One pair of blades (in the left-hand picture) holds the remaining part of the insulation tight, while the second removes the part to be stripped. | Circular cut for tough, hard insulation materialsTwo blades cut right round the PTFE, silicone, Radox, Kapton and rubber insulation for ideal results. |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Length (mm) | 195 | 195 | 195 | 195 | 200 | 180 |
| Opening spring | yes | yes | yes | yes | yes | yes |
| Stripping capacities (mm²) | 0.14 – 6.00 | 0.03 – 2.08 | 1.5 – 6.0 | 0.03 – 10 | 0.03 – 10 | 0.2 – 6 |
| AWG | 26 – 10 | 32 – 14 | 15 – 10 | 32 – 7 | 32 – 7 | 24 – 10 |
| Weight (g) | 445 | 447 | 449 | 136 | 202 | 151 |
| Weight: | 49.9 g |
| Dimensions: | 19.99 x 7.29 x 1.91 cm; 49.9 Grams |
| Model: | 12 12 06 |
| Manufacture: | Knipex |
Molte volte mi ritrovo a gestire cavi con isolante molto duro, come ad esempio il teflon e similari ,praticamente impossibile fare una spelatura con le tradizionali pinze, se non si vogliono distruggerle dopo poco ,per questo motivo ho scelto questa pinza che offre un taglio preciso e netto praticamente perfetto . Risulta ottima con tutti i tipi di cavi indipendentemente dal tipo di isolante ,ovviamente non pratica come quelle ad inserimento frontale che incidono l’isolante soltanto sulla parte superiore ed inferiore ,per cui quest’ultimo viene praticamente strappato e non tagliato con la conseguenza di trovarsi una spelatura non proprio ideale.
Cette pince KNIPEX 12 12 03 remplit parfaitement son rle pour les sections de fil ncessaires la maison 1.5 et 2.5 mm2.
These are probably the nicest wire strippers I’ve ever owned. Excellent action, and so far faultless stripping on pvc, silicon and trs. I could imagine the depth stop breaking if you chuck them about but that’s barely an issue. They are definitely right handed, using them in your left hand will reduce accuracy.
