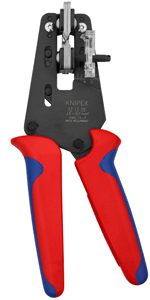

KNIPEX Precision Insulation Stripper with adapted blades (195 mm) 12 12 10

Precision-wire strippers for special insulation materials

Two pairs of blades: division of labour for the desired result

The Knipex 12 12 10 wire strippers have been specially developed for very tough and hard insulation materials which need to almost be cut through entirely so that they can be pulled off. Two pairs of blades cut into the entire circumference of the cable insulation. The blades have been shaped and ground so that the cut gets very close to the conductor. After scoring, one of the pairs of blades remains still and secures the insulation that has been cut into. The other pair of blades strips the insulation from the cable.

Length stop for reproducible stripping results

The precision wire strippers have a length stop for consistent wire stripping results, which can be easily pushed together with your fingers to slide and adjust it. This enables wire stripping results to be achieved even in the case of demanding insulation materials, meeting high requirements in terms of consistent quality.

Insert cable, press pliers closed – cable is stripped

The work saved by these wire strippers is immense. After inserting the cable, the entire wire stripping process takes place as if by itself with one press of the hand. Even insulation materials that are difficult to process are reliably removed with precise and, thanks to the length stop, accurate repeat measurements: an advantage for fitters, e.g. in the areas of energy technology, plant and automotive engineering.

Short overview

Spare blade for Knipex 12 12 10 They offer good everyday benefits, even with non-everyday insulation materials that are difficult to strip.	Four-blade principle: step 1 Two pairs of blades cut into the entire circumference of the hard, tough insulation with a circular cut.	Four-blade principle: step 2 One pair of blades (in the left-hand picture) holds the remaining part of the insulation tight, while the second removes the part to be stripped.	Circular cut for tough, hard insulation materials Two blades cut right round the PTFE, silicone, Radox, Kapton and rubber insulation for ideal results.
