Laptop Docking Station Dual HDMI Monitor Adapter USB-C Docking Station Triple Display USB C Hub to Dual HDMI,VGA,Ethernet,3USB3.1,2 USB2.0,PD, Audio for Dell XPS,Lenovo,HP,Surface Dock Type C Dongle
The incompatible laptop will not be able to use the HDMI and VGA ports of the hub! Please Check The Compatible List Before Purchase!
Compatible List (Not full list）
Hp Laptops: HP Spectre Laptop 13-af001TU/ Spectre x360 13t/ Spectre folio (13t-ak000cto)/ Spectre 360 laptop/ Specter x369; Elitebook 840 G5 series/ Elitebook X2/ Elitebook x360 1030 G3/ Elitebook 745 G6/ Elitebook 830 G6/ 2018 HP Elite 800 G4; Envy Geforce mx250/ Envy x360 Laptop (15z-ds100); Z book 15u G3/ Zbook 17 G4
Dell Laptops: Dell XPS 9380/ XPS 13 9365/ XPS 15 2018/ XPS 13 9300/ New XPS 15 with i7 dedicated video card 64GB of ram and 2TB SSD; Latitute 7280/ Latitude 5310 2-in-1; Precision 7730/ Precision 7750; Laptop 5590
Lenovo Laptops: Lenovo Yoga 720-13IKB/ Yoga 730/ Yoga 900-13ISK/ Yoga 910/ Yoga 920/ Yoga 930/ Yoga 940-14IIL; 3rd generation Thinkpad Yoga; Yoga15 Thinkpad Ultrabook Pro; Thinkpad E590/ Thinkpad P72/ Thinkpad T470/ Thinkpad X1 Carbon (2019 model); Flex 14 IML (81XG)/ Flex 5; Legion Y530; Lenovo C930/ T480s/ X390/ 81N8
Surface Laptops: Microsoft Surface Book 2/ Surface Go/ Surface Laptop 3; Surface Pro 7
OTHER Laptops: Huawei Macbook Mate10/ Mate10 pro/ Mate20/ Mate20 pro / Mate30/ Mate30Pro; Google Slate (2019); Chromebook C340-15; SanDisk Cruise Glide; Razer Blade 2017 (gtx 1060); Pixel book go 2019/2020
Incompatible List: All HP Pavillion Laptop; HP Elitebook x360 1030 G2,HP ENVY model U110nr,HP Elitebook 840 G3 / 745 G4 / 820 G3 / 828 G4 / HP Probook 650 G2 / 455 G4 / 430 G5 ; Lenovo IdeaPad 330S / S340, Lenovo Yoga Flex 5,lenovo legion y540,Lenovo Tab 4; ll MSI Laptop; Nintendo Switch; Dell Chromebook 5190,Dell Latitude 3390 / 5510; Google pixel book 2, Huawei matebook D15; Acer nitro 5,Acer chromebook model CB515-1HT-C2AE,Acer Aspire E15; ASUS 202C Chromebook / nitro 5 /Aspire E15 / fx571gt/A509JA
- If you are not sure or can’t find your laptop in the list , please feel free to let us know, we are happy to help you check if this docking station is compatible for your device.
- Only applicable to laptops with built-in usb c port, this usbc hub can’t be used with usb to usb c converter.
Max resolution when Dual HDMI Display for Windows Laptop
For laptop on DP1.4 Mirror Mode(The Screen of 2 monitors and Laptop are same): A (host) to A (monitor 1) + A (monitor 2)
- PC + HDMI 1+ HDMI 2,Three screen resolutions are the same as the host.
For laptop on DP1.4 Extend Mode(The Screen of 2 monitors and Laptop are different）:A (host) to B (monitor 1) + C (monitor 2)
- DP1.4 AMD CPU:PC + HDMI 1(4K@30Hz)+ HDMI 2(1080P@60Hz)
- DP1.4 Intel/I7 CPU/GeFore RTX:PC + HDMI 1(4K@30Hz)+ HDMI 2(4K@30Hz)
Tips——When single HDMI working：For DP1.4 laptop, the resolution of HDMI 1 is up to 4K@60Hz, and the resolution of HDMI 2 is up to 4K@30Hz;for DP1.2 laptop,HDMI1 and HDMI 2 both are up to 4K @30Hz . When dual HDMI working at the same time:For laptop on DP1.4 Intel/I7 CPU/GeFore RTX, the maximum resolution of HDMI 1 and HDMI 2 both can be 4K @30Hz; for other laptops, HDMI 1 is up to 4K@30Hz, and HDMI 2 is only up to 1080P.
Max resolution when Triple Display with HDMI & VGA for Windows Laptop
- Mirror Mode(A-A+A):The Screen of 2 monitors and Laptop are same,and the resolution is also the same.
- Extend Mode(A-B+C):3 screen are different,resolution are respectively:
- For DP1.4 AMD CPU Laptop,maximum resolution are:HDMI 1/HDMI 2(2K@60Hz) + VGA(1080P@60Hz);
- For DP1.4 Intel/I7 CPU/GeFore RTX Laptop,both resolution can be up to 1080P@60Hz.
Note:This universal USB C laptop docking station support SST(Single-Stream Transport)&MST(Multi-Stream Transport) for windows.Mac OS does not support MST display.For MacBook of M1 chip only can extend or mirror 1 monitor.
Multiple Display Accessories With Dual HDMI & VGA for Windows Laptop
- Mirror Mode : PC + HDMI 1+ HDMI 2 + VGA (A-A+A+A)
- Extend Mode: PC + HDMI 1 + HDMI 2 + VGA(A-B+C+D) ,all resolutions are up to 1920×1080@60Hz
Notice:
- For Windows Laptop on DP 1.2,due to its limited bandwidth,1 or 2 of the screens resolution will be lower than 1080 P when connect 2-3 monitors simultaneously, and the final resolution depend on different laptop configurations and connected monitors.
- For Intel Graphics laptop, only supports three display data stream outputs at the same timeï¼›HDMI resolution will be 1080P @60Hz when Dual or Triple display with VGA displayport.
Multiple Super High-Speed USB 3.1&2.0 Data Transmission Ports
- This USB C hub docking station type c dongle has 3 USB 3.1 ports,data transfer speed are up to 10 Gbps,ensuring quick syncing and file sharing.You can connect hard drive, printer, mouse and more USB devices across the dock to your laptop; all of USB devices can work simultaneously.
- You can also connect ABIWAZY USB Hub 2 USB 2.0 ports to your keyboard or mouse,transferring data between laptop and other connected devices.Enjoy multiple possibilities of connectivity effortlessly and superior data-storing versatility.
Note: For this USB C dongle,only 1 HDD/SSD can be connected at the same time.Please supply power for your laptop by PD3.0 charging port before connect with high-power external device.
| | | |
|---|---|---|

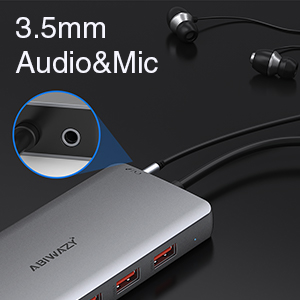

Enjoy Music With Audio&Mic Jack

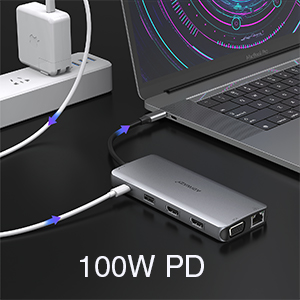

| Fast Pass-through Charging Port

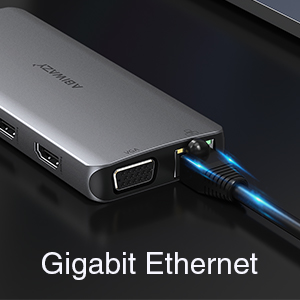

| USB C to Gigabit Ethernet Connector
|
 |  |  |  |  | |
|---|---|---|---|---|---|

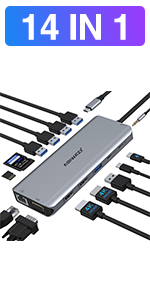

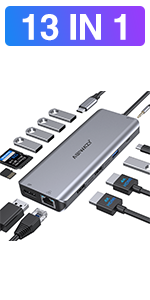

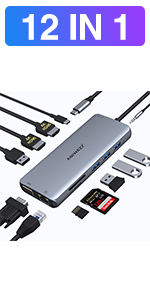

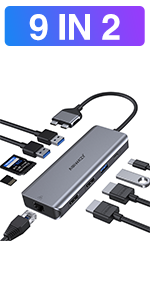

| Feature | 14 IN 1 Dock | 13 IN 1 Dock | 12 IN 1 Dock | 9 IN 2 Dongle | 8 IN 2 Dongle |
| Video Output Port | 2* 4K HDMI+1* 1080P VGA | 2* 4K HDMI+1* 4K DP | 2* 4K HDMI+1* 1080P VGA | 2* 4K HDMI | 2* 4K HDMI |
| Network port | 1*Gigabit Ethernet | 1*Gigabit Ethernet | 1*Gigabit Ethernet | 1*Gigabit Ethernet | |
| Data Transfer Port | 3 *USB3.0 & 2*USB 2.0 | 3 *USB3.0 & 2*USB 2.0 | 3 *USB3.0 & 2*USB 2.0 | 2 *USB3.0 & 1* USB2.0 | 3 *USB3.0 |
| USB C Port | 1*100w PD charge+1*5Gbp/s Data Transfer Port | 100w PD charge | 100w PD charge | 100w PD charge | 100w PD charge |
| Card Readers | SD/TF Card Slot(104Mb/s) | SD/TF Card Slot(104Mb/s) | SD/TF Card Slot(104Mb/s) | SD/TF Card Slot(104Mb/s) | SD/TF Card Slot(104Mb/s) |
| Headphone Jack | 1*3.5mm Audio & Microphone | 1*3.5mm Audio & Microphone | 1*3.5mm Audio & Microphone |
| Dimensions: | 13.5 x 6.5 x 1.5 cm; 140 Grams |
| Model: | AB3310 |
| Manufacture: | ABIWAZY |
| Origin: | China |
Very easy to use ! Will be buying more later on . Thks
This review is exclusively on the after sales support. The team proactively resolved the issue I had, making me very happy at the end.
I have used this for about 2 weeks now, and I have had no issues. I currently have a monitor and 3 other devices connected and it works without any signs of slowness. I am using a dell xps 13 with this product.
The docking station worked great until this morning, I bought it 4 months ago and now one of the HDMI ports just quit working and my return window just closed a few days ago, so its pretty much useless to me now.
Update: After being contacted by the seller they send us a replacement and everything is working as it should, thanks!
Using it with an Elitebook 840 G8 – three monitors ( 2 x HDMI and 1 x VGA) in extended mode – Windows 10 – and the laptop display stays active also. Running the audio from the hub also. All good, no issues so far. Browsing and office apps, no games.
The product does the job, no major issues, just a couple inconveniences:
Pros
Quality construction
Port density
Handles bandwidth advertised
Cons
When the computer goes to sleep, the monitors require to be turned off and on before they will wake up and periodically they will not come back at all, requiring a reboot of the computer.
The USB-C port with the power indication will not charge a standard iPhone (but this is just nitpicking).
Overall, good product.
Funktioniert super mit meinem Windows Laptop. Keine Verzgerung oder Probleme
