RADEMACHER RolloTube C-line Medium 10 Nm Blue
RADEMACHER RolloTube Tubular Motors
The ideal drives for the automation of roller blinds. The right motor for every requirement: whether mechanical, electronic or radio-controlled.

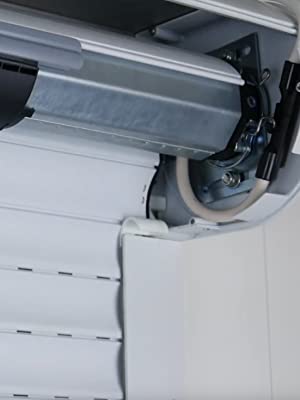

RolloTube installed in roller shutters.
RolloTube – Made in Germany.
Drive Technology – Easy & Safe
Rademacher always works on developments to always offer the optimal solution. This allows for the uniform design of the engine heads, in combination with the diverse click drive bearings, the installation in almost all roller shutter boxes.
RolloTube C-line – your comfort entry.
Self-learning tubular motor with soft stop.
Easy to set up: Using rigid shaft connectors and stoppers/stop strip, no endpoints need to be learned. Alternatively, manual endpoint setting (via set button/supply cable). Soft stop protects the whole system. Precise position detection and torque monitoring. Locking detection in both directions. Plug-in cable (including 2.5 m connection cable) parallel switchable universal motor head (for mounting without tools and high compatibility with other systems).
 |  |  |  |  | |
|---|---|---|---|---|---|

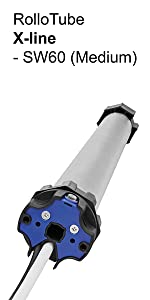

| X-line. | |||||
| Special function: | DuoFern radio integrated (extensive automatic functions when integrated into the HomePilot Smart Home); additional connection of a wireless actuator possible. | Wireless extension with separately available DuoFern tubular motor actuator. | Wireless extension with separately available DuoFern tubular motor actuator. | Wireless extension with separately available DuoFern tubular motor actuator. | Integrated KNX intelligence. |
| End point adjustment. | Self-learning with soft stop (when using stoppers and rigid shaft connectors or mounting springs), also manual learning possible. | Self-learning with soft stop (when using stoppers and rigid shaft connectors or mounting springs), also manual learning possible. | Self-learning with soft stop (when using stoppers and rigid shaft connectors), also manual learning possible. | Mechanical | Self-learning with fully automatic endpoint adjustment and direction of rotation assignment. |
| Precise position detection | ✓ | ✓ | ✓ | ✓ | |
| Precise position ride and real position feedback. | ✓ | ✓ | |||
| Torque monitoring and blocking detection | ✓ | ✓ | ✓ | ✓ | |
| Sensitive and gentle obstacle detection. | ✓ | ✓ | ✓ | ||
| Reverse. | Yes (free ride after obstacle and after blockage). | No. | No. | No. | yes (free ride after obstacle) |
| Automatic hanging length compensation (automatic correction of the end points; therefore maintenance-free). | ✓ | ✓ | ✓ | ||
| Fly screen door protection. | ✓ | ||||
| Available models: | 6 Nm, 10 Nm, 20 Nm, 30 Nm, 40 Nm, 50 Nm, (SW40, SW60) | 6 Nm, 10 Nm, 20 Nm, 30 Nm, 40 Nm, 50 Nm, (SW40, SW60) | 6 Nm, 10 Nm, 20 Nm, 30 Nm, 40 Nm, 50 Nm, (SW40, SW60) | 6 Nm, 10 Nm, 20 Nm, 30 Nm, 40 Nm, 50 Nm, 80 Nm, 120 Nm; (SW40, SW60, SW70); also with hand crank function. | 10Nm, 20Nm, 30Nm, 40Nm, 50Nm, (SW60) |
| Weight: | 2.56 kg |
| Dimensions: | 48.7 x 4.5 x 4.5 cm; 2.56 Kilograms |
| Brand: | RADEMACHER |
| Model: | 22601056 |
| Colour: | Blue |
| Colour: | Blue |
