Schneider Electric TeSys GV2 – Motor Circuit Breaker, 3 Pole, 17-23A, Thermal Magnetic, Toggle Control, Screw Clamp Terminals, GV2ME21
TeSys GV Range
Protection to help optimize machine performance
Our Tesys GV solution was introduced in the 1980’s. With an integrated short circuit and extended protection against thermal overload and phase loss. TeSys GV provides consistent performance, enhanced safety and uptime, cost savings, and great functionality.
In addition, TeSys GV combines with the TeSys D range, to offer a complete motor control solution from everything from simple machines to complex motor control centers.
The full range combines the simplicity of standard circuit breakers with the advanced protection of intelligent digital solutions.
Features & Benefits
- 100,000 cycles of electrical durability
- IE4 motor compliant
- The addition of a shunt trip enables remote control of tripping
- Rotary handle with trip indication
- In-house lock mechanism
- Sealable thermal overload setting
TeSys D Contactors
Highly competitive coil consumption
Small changes can generate big savings. The new TeSys D Green contactor is equipped with an innovative electronic coil. These electronic-coil contactors require up to 80 % less energy than electro-mechanical contactors.This innovation results in concrete values: for example, large plants can noticeably reduce their energy bills and heat dissipation in cabinet.
Available in:
- 09-12-18 A
- 25-32-38 A
- 40-50-65-80 A
Key benefits
| | | | |
|---|---|---|---|
InnovationIncrease plant efficiency and productivity while reducing CAPEX. TeSys solutions can help you meet this challenge. | ReliabilityToday’s digital systems require precise and fail-proof information. TeSys technology offers one of the most reliable auxiliary contacts in the market. | SimplicitySimplify your life by reducing maintenance costs while increasing safety and reliability. With TeSys solutions, it’s easy! | SafetyLoose power connections are the main cause of electrical fires. Mitigate this risk using TeSys EverLink technology. |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

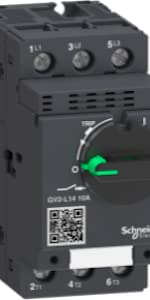

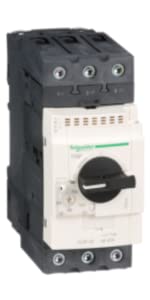

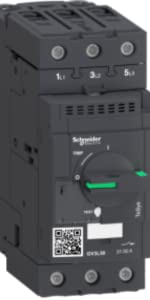

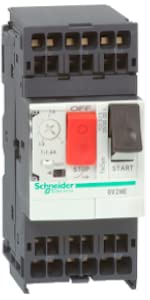

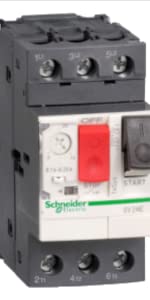

| Model number | GV2L14 | GV2ME04 | GV2ME20 | GV3L50 | GV3P40 | GV3P65 |
| Product type | TeSys GV2 | TeSys GV2 | TeSys GV2 | TeSys GV3 | TeSys GV3 | TeSys GV3 |
| Device application | Motor | Motor | Motor | Motor | Motor | Motor |
| Poles description | 3P | 3P | 3P | 3P | 3P | 3P |
| Network type | AC | AC | AC | AC | AC | AC |
| Fixing mode | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 2 x M4 screws) | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) | 35 mm symmetrical DIN rail: clipped Panel: screwed (with adaptor plate) | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 3 x M4 screws) | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 3 x M4 screws) | 35 mm symmetrical DIN rail: clipped Panel: screwed (with 3 x M4 screws) |
| Control type | Rotary knob | Push-button | Push-button | Rotary knob | Rotary knob | Rotary knob |
| Dimensions (H x W x D) | 89 x 45 x 97 mm | 101 x 45 x 78.5 mm | 89 x 45 x 78.5 mm | 132 x 55 x 136 mm | 132 x 55 x 136 mm | 132 x 55 x 136 mm |
| Net weight | 0.33 kg | 0.28 kg | 0.26 kg | 0.96 kg | 0.96 kg | 0.96 kg |
| Dimensions: | 8.5 x 9.3 x 4.7 cm; 260 Grams |
| Model: | GV2ME21 |
| Manufacture: | Schneider |
| Origin: | France |
