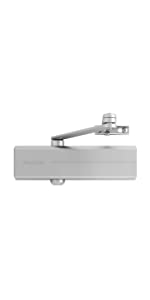

Tesa Assa Abloy DC140-D9016, Hinged arm Door Closer,White
Assa Abloy Articulated Arm Door Closer
Articulated Arm Door Closer Assa Abloy
Controlled and effective closing: each and every one of our door closers feature a minimum of two hydraulic locking control valves. In addition, our multi-force models offer several forces in a single model to adapt to the width, weight and particularities of the door to control.
DC140 articulated arm aerial door closer with pinion zipper mechanism that features variable closing force up to 1250mm blade width.
Variable closing force according to installation.Certified in accordance with EN1154 standard, size 2/3/4/5.3 regulating valves, to achieve perfect control over the speed of the door.Suitable for opening doors on the right and left.Suitable for doors with fire and smoke protection.Thermodynamic valves for consistent performance.Adjustable closing force.Opening angle up to 1 80º (EN) 5 = 125º).
 |  |  |  | |
|---|---|---|---|---|
| Strength | EN 3 | EN 2-4. | EN 2-5. | EN 1-4 |
| Door Width: | Up to 950 mm. | Up to 1100 mm. | Up to 1250 mm. | Up to 1100 mm. |
| Regulation valves. | 3 | 3 | 3 | 4 |
| Opening angle | Up to 180°. | Up to 180°. | Up to 180°. | Up to 180°. |
| Fire and smoke protection. | ✓ | ✓ | ✓ | ✓ |
| Closing speed | Variable 180º – 15º. | Variable 180º – 15º. | Variable 180º – 15º EN5 = 125º – 15º. | Variable 180º – 0º |
| Variable between 15º -0º | Variable 15º -0º | Variable 15º -0º | Variable 15º -0º | Variable 15º -0 |
| Brake opening. | Variable above 75º | Variable above 75º | Variable above 75º | Variable above 75º |
| Certified in accordance with | EN 1154 | EN 1154 | EN 1154 | EN 1154 |
| CE marked for construction products | ✓ | ✓ | ✓ | ✓ |
 |  |  |  |  | |
|---|---|---|---|---|---|
| Retainer | ✓ | ✓ | |||
| DC110 | ✓ | ✓ | |||
| DC120 | ✓ | ✓ | |||
| DC140 | ✓ | ✓ | |||
| DC340 | ✓ | ✓ | ✓ |
| Weight: | 1.78 kg |
| Dimensions: | 2 x 2 x 2 cm; 1.78 Kilograms |
| Model: | DC140—–D9016 |
| Part: | DC140—–D9016 |
| Colour: | White |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Manufacture: | Tesa Assa Abloy |
| Colour: | White |
| Quantity: | 1 |
Magnifico modelo de cierrapuertas. Facil de instalar con las detalladas instrucciones que acompaa.
Tiene tres ajustes : Velocidad de cierre, velocidad del golpe final de cierre para que ajuste el resbaln de la cerradura y velocidad de final de apertura de la puerta, para que no tropiece con la pared lateral.
En mi caso que la puerta no tiene resbaln en la cerradura, pues es cerrojo, permite ajustarlo para que no de el golpe final y cierre totalmente la puerta con suavidad, sin golpe. Ha sido una estupenda compra del modelo DC140 color blanco, pues todos los elementos que la componen estan terminados en color blanco.
