Trend Router Surfacing RS/JIG

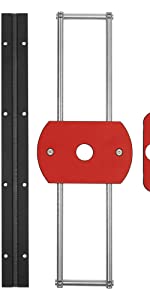

Trend Router Surfacing Jig
Adaptable compact jig for flattening, surfacing and trenching work on wide or irregular shaped material
- IDEAL FOR WIDER MATERIALS: Surfaces and flattens stock up to 400mm wide
- END GRAIN ROUTING: Routing cut across the surface of end grain for clean finish
- CONTROLLED CUTTING: Depth of cut can be easily controlled with the router plunge for fine skimming cuts or deeper levelling cuts
- BI-DIRECTIONAL CUTTING: Can be used across or along the grain
- HPL MATERIAL: High Pressure Laminate running rails and router cradle for wear-free performance, accuracy and durability
- TWIN 12MM STAINLESS STEEL RAILS: Supports heavier routers up to 7Kg weight without distortion
- FIXED POSITION CRADLE: Cradle can be locked to the bars for single axis movement such as trenching cuts
- NO FIXED SUB BASE REQUIRED: Simple guide bush location cradle for fast set up and removal
| | | | |
|---|---|---|---|
Depth of cut can be easily controlled with the router plunge for fine skimming cuts or deeper levelling cuts | Supports heavier routers up to 7Kg weight without distortion | Routing cut across the surface of end grain for clean finish | High Pressure Laminate running rails and router cradle for wear-free performance, accuracy and durability |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Length | 511mm | 985mm | 985mm | 1190mm | 880mm | |
| Width | 50mm | 390mm | 335mm | 335mm | 233mm | |
| Thickness | 12mm | 12mm | 12mm | 12mm | 12mm | |
| Router Base Plate Bore | 30mm | |||||
| Max. Router Weight | 7kg | |||||
| Weight | 5.4kg | 4.73kg | 5.46kg | 3.3kg | ||
| End Cut | 45 Degrees | 45 Degrees | 45 Degrees | |||
| Worktop Size | 700mm | 750mm | 900mm | 650mm | ||
| Max Jig Thickness | 12mm | |||||
| Out Of Square Capacity | 25 degrees |
| Weight: | 2.85 kg |
| Dimensions: | 102.2 x 54 x 3 cm; 2.85 Kilograms |
| Model: | RS/JIG |
| Part: | RS/JIG |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Manufacture: | Trend |
| Quantity: | 1 |
Does exactly what it says on the tin.
Should be used with a 1/2″ shank router, however I used my 1/4″ trim router with a plunge base and it did ok.
Loses a star for not having a pouch/bag to keep the screws and bars in. In time will have to likely use new screws unless the battens are kept in pristine condition.
Would be great with removable steel battens, as wooden ones that are perfectly flat and level are required, but at this price point it’s not going to happen!
Brilliant bit of kit, let’s you make an accurate and time saving sled router flattening jig for levelling slab wood.
As others have noted, it is very little kit for the money. You do have to be careful when fitting the rails to your timber, but the manual gives a good technique for doing that (RTFM!) and I got them aligned pretty well. It is high quality, easy to use once assembled, and the end-product was excellent. So in all I’m very glad I bought it.
It is great for some jobs but as soon as you need to join the second set of rails up to work on a larger piece you’ll find that you hit a hard “stop” as you move along.
For the money this should come with a single long rail each side and on a mount; preferably a height adjustable one.
Trend have unfortunately put a (surely) vast profit on this item, rather than producing a value for money piece of kit that does the job properly. A real shame, as I try to buy a Trend item before other brands because of the feneral reliability of their products. I consider this to be 50 (maximum) item.
It is great for some jobs but as soon as you need to join the second set of rails up to work on a larger piece you’ll find that you hit a hard “stop” as you move along.
For the money this should come with a single long rail each side and on a mount; preferably a height adjustable one.
Trend have unfortunately put a (surely) vast profit on this item, rather than producing a value for money piece of kit that does the job properly. A real shame, as I try to buy a Trend item before other brands because of the feneral reliability of their products. I consider this to be 50 (maximum) item.
I had issue with the track, Trend sent out spares and with a little customising got it to work just but perfect through.
The system would be a lot better if the tracks were 1m long rather than 500mm and having to try to get them to line up.
I had issue with the track, Trend sent out spares and with a little customising got it to work just but perfect through.
The system would be a lot better if the tracks were 1m long rather than 500mm and having to try to get them to line up.
I have used this jig several times now. You get a good finish and most importantly flat.you will have to make a jig to fix to.The better you make the jig the better the results. Once made all will be revealed.
