ELEGOO 8.9 Inches 4K Monochrome LCD Screen for Saturn Resin 3D Printer need Download Firmware with an HD Resolution of 3840 x 24
PJ V5 Screen: Click to download: V4.4.3-Z1_LCDZ/3840X2400/F15.26
ELEGOO 8.9 Inches 4K LCD for Saturn 3D Printer

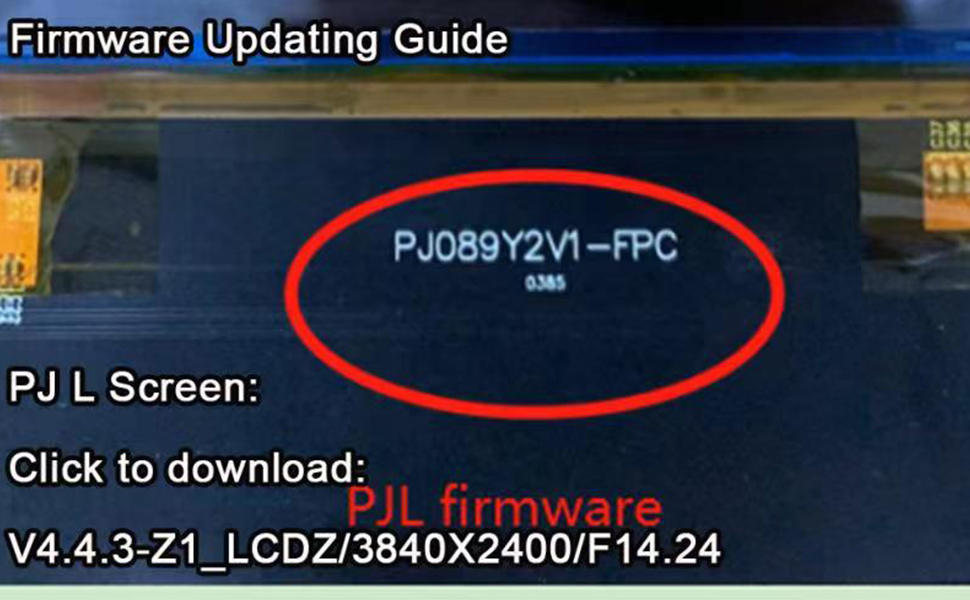

You can identify the types of the firmware and machine like shown in the picture.
TM Screen: Click to download:V4.4.3-Z1_LCDZ/3840X2400/F2.18
ELEGOO 8.9 Inches 4K LCD for Saturn 3D Printer
There are three versions corresponding to three types of firmware
PJ L Screen: Click to download: V4.4.3-Z1_LCDZ/3840X2400/F14.24
- Saturn 4K LCD needs to download and update the corresponding firmware after installation
- Notice: If you run the wrong firmware with your machine,The display will be blank or black.Please update your machine with right firmware.
Firmware Updating Guide
- PJ L Screen: Click to download: V4.4.3-Z1_LCDZ/3840X2400/F14.24
- PJ V5 Screen: Click to download: V4.4.3-Z1_LCDZ/3840X2400/F15.26
- TM Screen: Click to download:V4.4.3-Z1_LCDZ/3840X2400/F2.18
| Weight: | 620 g |
| Dimensions: | 24.1 x 22.4 x 1.9 cm; 620 Grams |
| Part: | UK-UNI-3D-301 |
| Batteries Required: | No |
| Manufacture: | ELEGOO |
| Reference: | UK-UNI-3D-301 |
Came well packed and safe.
Fit perfectly and does the job
Got me out of trouble. Quick delivery. Well packaged and clear instructions. Easy to replace and comes with screen protector already installed!!
This is the OEM screen and it works fine, when you follow the instructions. My original screen failed and I actually ordered this and fitted it – but Elegoo also sent me a new one from the factory for free – so do ask if your screen or Elegoo product fails they’re AWESOME
If your screen is like the above, this is the part you want. Does the job and I would say be careful not to have your ribbon cable in the way when you reinstall.
This screen is a perfect replacement for the Elegoo Mars Pro 2, comes well packed, and easy to install with a link to a youtube video for instructions. Please make sure than you remove the reinforced glass from the old LCD screen.
I ordered this ELEGOO 8.9 Inches 4K Monochrome LCD with an HD Resolution of 3840 x 2400 for Saturn 3D Printer
Fairly easy process to swap the screen out as a replacement, the provided link to the installation video is well detailed. There are also other videos around showing how to swap the screen out.
The product comes well packaged in the box, packed securely with plenty of foam around the screen to protect it during transit.
The quality of the item appears to be well built with a screen protector already installed to keep it clean during installation/use.
item arrived on time and undamaged
works well and is easy to fit but i do feel at over 70 quid its a little on the expensive side.
These SLA machines are not bullet proof. Nothings worse than the LCD going wonky and getting holes in your print…
Having one of these to hand is very worthwhile and I’d always recommend it
This came really well packaged, sealed up in a hard backed box with lots of foam. There was even a little interior pocket with some glass tape and instructions.
The instructions are amazing, any diyer is capable of this swap, honestly. Their instructions and Vida are so good. There are plenty of DIY YouTube channels showing similar content too
The quality of these screen is good, they come with protective film which is good as mine had finger prints all over it. But I hope it’ll last a bit longer. My older mars screen was really poor for needing replaced but these seem better.
The description is a bit misleading but it’s for 8.9 4K Saturn screen replacement. I search through YouTube to look into information how to change the screen before I actually work on it. It’s not too hard after you prepared it through those videos. It now works properly after the replacement is done. I am happy with it.
Thankfully these screens have started to be more readily available. I had a print failure, cleaned the VAT but must have missed a small piece of cured resin as after my next print I had a punctured FEP and a damaged screen.
Replacing them is easy and there are video guides online if you’re unsure of what to do.
Once the printer was cleaned up, the new screen installed and a new FEP fitted, I’m back up and running.
I’ll probably order a couple to have a stockpile for when I inevitably break this one!
