Fluke 324 RMS Clamp Mete
Fluke Clamp Meters
Wires in tight compact spaces. Panels out of reach. Extra-large conductors. Fluke understands your workspace and have designed products for noise-free, reliable readings. Built on success, clamp meters designed by Fluke are known as workhorse clamp meters. With advanced performance, the clamp meter line is designed to be simple to use and gimmick-free.

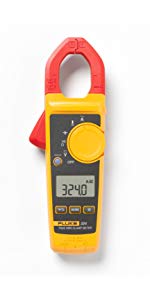

Fluke 324 True RMS Clamp Meter
Fluke rugged. Fluke reliable. Fluke precise.

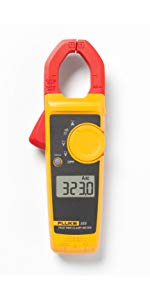

True RMS measurements and optimized ergonomics make the 320 Series Clamp Meters one of the best general troubleshooting tools for commercial and residential electricians. The 323, 324 and 325 are designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and rugged clamp meters are ideally suited for current measurements up to 400 A in tight cable compartments.
- The Fluke 324 model also includes temperature and capacitance measurement capabilities.
- 400 A AC current measurement
- 600 V AC and DC voltage measurement
- True RMS AC voltage and current for accurate measurements on non-linear signals
- Resistance measurement up to 4 kΩ with continuity detection
- Slim, ergonomic design
- CAT IV 300V/CAT III 600 V safety rating
Key Features
| | | | |
|---|---|---|---|
| Resistance measurement up to 4 kΩ with continuity detection. | True RMS AC voltage and current for accurate measurements on non-linear signals. | Slim, ergonomic design. | CAT IV 300V/CAT III 600 V safety rating. |
 |  |  | |
|---|---|---|---|
| AC Current Range | 0 to 400.0 A | 0 to 40.00 A /400.0A | 0 to 40.00 A /400.0A |
| DC Current Range | 0 to 40.00 A /400.0 A | ||
| AC/DC Voltage Range | 0 to 600.0 V | 0 to 600.0 V | 0 to 600.0 V |
| Resistance Range | 0 to 400.0 Ω /4000 Ω | 0 to 400.0 Ω /4000 Ω | 0 to 400.0 Ω /4000 Ω |
| Continuity | ≤ 70 Ω | ≤ 30 Ω | ≤ 30 Ω |
| Capacitance | 0 to 100.0 µF/100 µF to 1000 µF | 0 to 100.0 µF/100 µF to 1000 µF | |
| Frequency | 5.0 Hz to 500.0 Hz | ||
| Back light | ✓ | ✓ | |
| Contact Temperature | -10.0°C to 400.0°C (14.0°F to 752.0°F) | -10.0°C to 400.0°C (14.0°F to 752.0°F) | |
| Min/Max | ✓ |
| Dimensions: | 24.1 x 10.7 x 6.9 cm; 300 Grams |
| Model: | FLUKE-324 |
| Batteries Included: | 2 AA batteries required. (included) |
| Manufacture: | Fluke |
| Origin: | China |
I was thinking about getting a Klein meter because the feature/price ratio was so much better, but went with Fluke because I found my co-workers’ Klein meters to be lacking in some departments in terms of testing speed and some physical aspects I personally didn’t take to. This is by far the easiest to use meter I’ve held in my hands. Fluke really killed off all the complexity other meters have and made this as plug-n-play as possible, to the point it feels like I’m playing with a toy. It’s very responsive when I interact with the dial or put the test leads into the meter, to an oddly satisfying extent which makes me actually look forward to using it. The test leads are longer than the other meters I’ve used, which is especially amazing when in a cramped industrial setting. I didn’t plan on using the case but it’s very high quality and is slim enough it slots without issue in my tool backpack, so despite having to disconnect the leads everytime I store it, I use the case.
Overall, this does have less features than the competition’s meters (especially with price taken into account), but this Fluke is designed and built incredibly well in comparison. I only wish they added at least some DC current reading capibility to this model since it can test capacitance, but I suppose that’s what the 325 is for.
Tried checking resistance on thermistors on a minisplit and couldn’t get any readings, used my megometer and could get readings fine. This was failure on my part to do research but really figured for that price point it should be able to read that high of resistance. Other than this, great quality meter. Not my first choice for hvac work though.
The usual fluke quality works perfectly just as you would expec
Finally after years broke down and got a fluke. Im very happy I did and don’t know why it took me so long to get one. Well worth the money
My biggest issue is that the battery contacts seem to break off easily without even being provoked. This is my 2nd fluke clamp meter and both have broken battery contacts…may be fluke needs to change the type of metal used for this pa
Great quality , well made very accurate and good case . Used Fluke for years never had any issue
It’s a Fluke – need I say anything else? I bought this to troubleshoot my AC unit which is what it’s designed for. The K thermocouple accessory is a nice additional feature. Measures capacitance in the 0.1-1000 uF range (basically only good for big AC caps). Comes with a case, meter, thermocouple, and a standard set of probes.
It’s a fluke. Nothing more needs to be said. As an electrician of almost 40 years would not buy anything else.
It has a problem the leads are trouble
A short in the ground the common
Super unhappy about this right out of the box
Only thing that even remotely bothered me is the length of the leads, they’re well over 4 feet. Swapped them with the leads from my old klein with 2 feet leads. Seems dumb but wrapping 4 feet of leads everytime is annoying. But over all so far so good. It’s incredibly lightweight and comes with free batteries so good to go out of the box.
Great for someone getting started in HVAC as an all around meter.
If you are looking for something with a few more features but aren’t sure if it worth it like the 325 or 902 then this meter may not be exactly what you want. But then again I use a T5-600 for everyday stuff and break out my 116 or 902 for the more advanced troubleshooting.
But no matter what you buy, BUY A FLUKE!!!
love this test Meter just the right size to hold in your hand or hook it onto sumething nice display on it too
love this test Meter just the right size to hold in your hand or hook it onto sumething nice display on it too
Great product, has everything I could need. Voltage, amperage, resistance, capacitance and temperature, and back lit if needed. Came in a soft case with temp probe as well as testing leads. Highly recommended.
Exactly as described and quick delivery. Top notch guys. Two thumbs up.
Exactly as described and quick delivery. Top notch guys. Two thumbs up.
This is a great little multi-purpose meter.
– It can fit a 600MCM in the amp clamp
– Measures up to 400A (AC only)
– Includes test leads and temperature probe
– Measures capacitance, temperature, voltage, amperage (AC only) and continuity/ohms (resistance)
– A nice backlight for the LCD display
The meter is more compact than most Fluke clamp meters but definitely worth the money. It is an advantage for me since I need a compact meter that I can take with me to troubleshoot panels, motors, etc. but it doesn’t take up much room in my desk drawer.
The LCD display is nice, clear, and easy to read. You don’t have to view the screen head-on to see the numbers clearly but as with any display (TV, computer, etc.), if you change the viewing angle too much the display is harder to make out.
The selection wheel turns smoothly and clicks lightly at each measurement’s detent, making it easy to get the correct measurement type.
The clamp is strong but easy to open and has lines marked on the clamp face to show where the wire should be located for the most accurate reading.
The test leads are long (approx. 3.5 – 4ft) and are very flexible. They snap firmly into the meter and stay put quite well. The temperature probe also fits nicely and stays put without wiggling out or slipping loose during use.
The readings are quick and accurate. Exactly what you would expect.
All in all, it’s a Fluke. I’ve used Fluke, Ideal, Greenlee, and many others and while many these are either good or “good enough”, the Flukes I’ve used have been extremely reliable, accurate, and durable, therefore dependable. I would highly recommend this meter to anyone.
It has performed to and exceeded my expectations. The quality and construction seems substantial for contractor/tech work, but I can’t comment on field durability, this will be a ‘garage queen’ for my occasional use. The price point is high for my general needs, but I feel that I’d probably spent more than that on the bevy of meters that I discarded, not to mention the implicit costs associated with poorly calibrated devices and not having any sense of confidence. I’m happy with my decision, and very pleased with my purchase.
I’ve attached some additional pictures of the product (taken from the Fluke site) — these should be included in the main product pictures above, but aren’t for some reason. Product includes: meter, case, manual, probes (red & black with pointed tips and caps), thermocouple. Manual available for download at: http://media.fluke.com/documents/32x_____umeng0000.pdf
Disclosure: I work for a subsidiary company of Danaher, of which Fluke is also a subsidiary. Other than that tenuous relationship, I have no relationship with Fluke products, company, or personnel. I was not compensated nor asked by Fluke, Danaher, or any other person or company to provide this review.
PS: Have a nice day.
Fluke is the number one brand for electrical testers. I tell people to buy one for the basic reason that they are the best piece of equipment you can buy to help protect your life and to reliably test equipment. When it comes to the sting potentially harmful and damaging equipment, isn’t a few extra bucks worth it?
This tester is a perfect all around tester for electricians. Granted, the temperature gauge really isn’t useful for electricians but I believe all the other functions are perfect for daily tasks. My only wish would be for fluke to start using stiff cases for tester storage instead of the soft pleather bags. If your used to storing your toolsx inside a work bag like me, your going to end up roughing up the tester during daily use. I’d like to see something moire rigiud to stand up to abuse. Other than that I’m very happy.
