KNIPEX Crimping Pliers also for two-hand operation (250 mm) 97 52 13
Extremely user-friendly: precision requiring little time and effort
Professional crimping results –the ideal crimping pressure automatically
The crimping of non-insulated cable lugs and connectors requires a great deal of care in order to create safe electrical connections. Normally. The Knipex 97 52 13 crimping pliers are a tool that intuitively helps the user do everything right.
Non-insulated crimp, tubular and compression cable lugs and non- insulated crimp, butt and press connectors are reliably crimped to the conductors in the precision-machined crimp profiles. The integral lock ensures that the pliers only open once the optimal crimping pressure set in the factory has been reached. The crimping pressure can be adjusted; the integral lock can be released if need be.
30 % less effort required – the leverage principle is used twice
Double use of the leverage principle – twice the relief from strain: up to 30 % less effort required compared to conventional crimping pliers, made possible by applied physics. The handles of the Knipex 97 52 13 are shaped to produce a long lever arm. This also permits two-handed operation for large conductor cross-sections. Special leverage is also integrated in the crimping pliers, so that even a low level of manual force gets to the conductor in a carefully measured way. The user can professionally produce stable connections from conductors and cable lugs or connectors with little time and effort.
This is how it is done: three hand movements to produce a professional crimp connection
A non-insulated crimp, tubular and compression cable lug or a non- insulated crimp, butt and press connector is inserted in the corresponding precision die. The lower handle is pulled up using two fingers, until both jaws are resting on the cable lug or connector to be crimped, thereby fixing it in the crimp profile. After inserting the stripped cable, crimping is carried out: reliably and securely. The Knipex 97 52 13 has been designed for many years of use. The high Knipex quality standards and selection of materials with high-grade chrome vanadium electric steel ensure that all the qualities of these crimping pliers will last for a long time.
Short overview
- Extremely user-friendly crimping pliers with lever transmission
- For non-insulated crimp, tubular and compression cable lugs in accordance with DIN 46234 and DIN 46235, as well as non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267 with a capacity of 0.5 – 10.0 mm2
- Long lever arm for one-handed and two-handed operation
- Toggle lever system for high efficiency
- Integral lock (with release mechanism) only triggers on reaching the optimal crimping pressure
- Consistently high crimping quality due to (adjustable) crimping pressure calibration
- Firm grip in the hand thanks to ergonomic shape of the handle
- Chrome high-grade vanadium electric steel; oil-hardened
- Handles with non-slip plastic grips
- Length 250 mm
- Net weight 558 g
| | | |
|---|---|---|
Durable and accurateThe precision die with two crimping dies made of high-grade chrome vanadium electric steel is very stable. | Easier crimping of large cross- sections30% less manual force compared to conventional crimping pliers thanks to the toggle lever transmission plus the option of two-handed operation ensure a low level of work fatigue. | Professional crimping resultConsistently high crimp quality and integral lock with release mechanism. |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

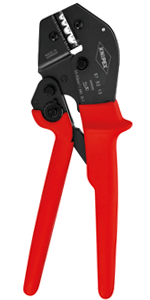

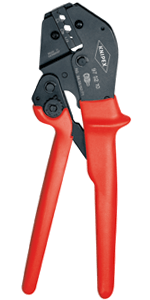

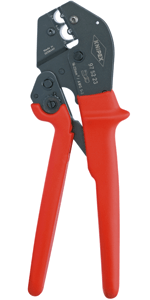

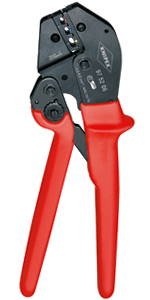

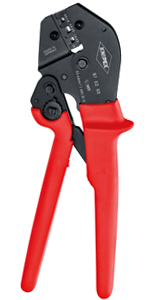

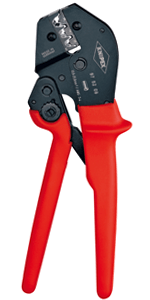

| EAN 4003773- | 048084 | 023678 | 025467 | 025498 | 052159 | 025474 |
| Length (mm) | 250 | 250 | 250 | 250 | 250 | 250 |
| Handles | with non-slip plastic coating | with non-slip plastic coating | with multi-component grips | with non-slip plastic coating | with non-slip plastic coating | with non-slip plastic coating |
| Applications | non-insulated crimp terminals, tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 and non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267 | Coax-, BNC- and TNC-connectors | non-insulated open plug type connectors (plug width 4,8 + 6,3 mm) | insulated and non-insulated end sleeves (ferrules) | non-insulated terminals + cable connectors | insulated terminals, plug connectors + butt connectors |
| Capacity | 0,5 – 1/ 1,5 – 2,5/ 4 – 6/ 10 | / | 0,5 – 1/ 1,5 – 2,5/ 4 – 6 | 10 / 16 / 25 | 16 / 25 | 0,5 – 1/ 1,5 – 2,5/ 4 – 6 |
| Weight (g) | 558 | 577 | 572 | 571 | 565 | 565 |
| Weight: | 600 g |
| Size: | 264x101x29 mm |
| Dimensions: | 24.99 x 7.7 x 2.39 cm; 600.1 Grams |
| Model: | 97 52 13 |
| Part: | 97 52 13 |
| Colour: | Black/Red |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | KNIPEX |
| Colour: | Black/Red |
| Quantity: | 1 |
| Size: | 264x101x29 mm |
Mein Mitarbeiter wollte so einen, wurde bestellt und ist sehr zufriede
Nach 11 Jahren und Xx1000 Crimp Verbindungen hatte die alte Zange etwas gelitten. Nach mehreren Eigenreparaturen ist sie nach wie vor als Backup im Einsatz aber es wurde Zeit fr ein Ersatz zum tglichen gebrauch. Wir nutzen sie mit dem MC4 Einsatz + Connector und ich bin absolut berzeugt von dem Produkt. Kann sie jedem Weiterempfehlen! Der Preis wirkt erstmal hoch, auf die Pressungen in der Vergangenheit gerechnet lande aber zumindest ich weit! unter 1ct/Pressung.
