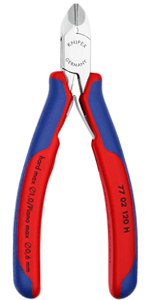

KNIPEX Electronics Diagonal Cutter with carbide cutting edges (120 mm) 77 02 120 H
Precise cutting of hard wires – piano, nickel, tungsten or diode wires
Compact dimensions – extraordinary cutting capacity
Unlike other diagonal cutters used in electronics, this electronics diagonal cutter from Knipex is a combination of a precision tool and high-performance pliers. Its precision carbide cutting edges are also suitable for particularly hard and tough types of wire. With a length of 120 mm and weighing 85 g, electronics diagonal cutter 77 02 120 H is compact and lightweight, ideal for confined spaces, e.g. for PCBs or safety casings. The short pliers head offers strong leverage. This makes it perfect for power delivery on the cutting edges and controlling manual force. An impressive cutting edge hardness of 80–83 HRC means it cuts soft wire up to Ø2.0 mm, hard wire up to Ø1.0 mm and spring steel wire (e.g. piano, nickel, tungsten and diode wire) up to Ø0.6 mm.
Zero-backlash box joint. High cut quality and durability
The Knipex 77 02 120 H electronics diagonal cutter has a box joint. The inside of both pliers handles is guided. This prevents tilting and rivets only undergo shearing stress. Result: higher-quality cutting operations, long service life. The carbide cutting edges exceed the hardness values typical of conventional pliers with 80–83 HRC.
High Knipex quality standards and corrosion protection
The high-grade workmanship of Knipex electronics diagonal cutter 77 02 120 H meets the requirements for electronics and precision equipment. Precision, functionality and reliability are paramount. It is ideally suited to sensitive environments, e.g. for work on PCBs. Instead of a chrome finish it is mirror polished to prevent corrosion.

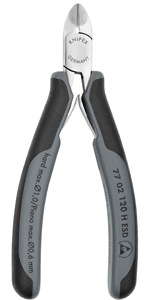

- Compact diagonal cutters with ESD protection e.g. in the aerospace industry.
- Inset carbide cutting edges with a hardness of 80–83 HRC
- Cutting values: soft Ø2.0, medium-hard Ø1.4 mm, hard Ø1.0 mm, piano Ø0.6 mm
- Box joint
- Mirror polish plus fine oil film protect against rust
- Forged, oil-hardened with special quality special tool steel
- Handles, multi-component grips
- Length 120mm; Net weight 85 g
Electronics diagonal cutter “H” for high performance, e.g. aerospace industry
Knipex offers a wide range of box joint electronics diagonal cutters for applications in electronics and precision equipment and – with models using precision carbide cutting edges – also for applications such as the aerospace industry. These cutters are characterised by high precision and functionality – plus the proverbial Knipex durability.
Professionals who use tools a lot every day expect a quality that enables them to work easily and safely and that can withstand many years of tough service.
| | |
|
|---|---|---|

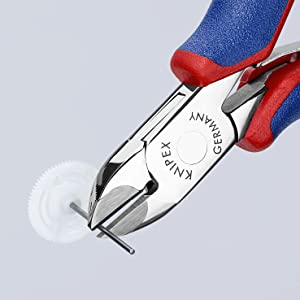

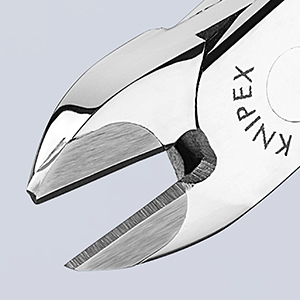

Great cutting, long service lifePrecision carbide cutting edges (80–83 HRC) are soldered into the forged blanks. | For high industrial requirementsThe Knipex 77 02 120 H electronics diagonal cutter cuts hard wire up to Ø1.0 mm – including piano, nickel, tungsten and diode wire. | |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| EAN 4003773- | 075783 | 075790 | 075806 | 075813 | 043720 | 040514 |
| Cutting capacities soft wire (Ø mm) | 2,0 | 1,6 | 2,2 | 2,0 | 0,2 – 1,3 | 0,2 – 1,3 |
| Cutting capacities medium hard wire (Ø mm) | 1,4 | 1,0 | 1,6 | 1,4 | 1,0 | 1,0 |
| Cutting capacities hard wire (Ø mm) | 1,0 | 0,6 | 1,2 | 1,0 | 0,6 | 0,6 |
| Cutting capacities piano wire Ø mm | 0,6 | 0,2 | 0,8 | 0,6 | 0,4 | 0,4 |

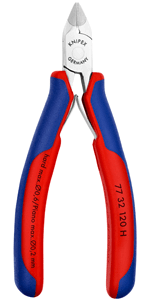

| Modell | Round head, with bevel | Pointed head with chamfer, With small bevel | Round head, with bevel | Round head, with bevel | with bevel | with bevel and lead catcher |
| Handles | with multi-component grips | with multi-component grips | with multi-component grips | with multi-component grips, electrically discharging | with plastic grips | with plastic grips |

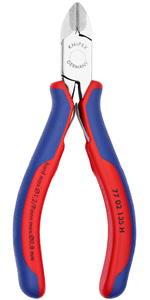

| Length (mm) | 120 | 120 | 135 | 120 | 125 | 125 |
| Weight (g) | 100 | 80 | 115 | 100 | 81 | 80 |
| Weight: | 81.6 g |
| Dimensions: | 11.94 x 4.7 x 1.91 cm; 81.65 Grams |
| Model: | 7702120H |
| Part: | 77 02 120 H |
| Colour: | Multicoloured |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | KNIPEX |
| Colour: | Multicoloured |
| Quantity: | 1 |
Pinnacle of tool manufacturing, I really wish US plier manufacturers would take a lesson from Knipex and NWS, I feel disapponted for having to buy non US product to get this type of quality and visual appeal but once you park them both in the same drawer every time you open the drawer you feel like seeing Yugo parked next to Ferrari.
Probably the best and only pair of small diagonals you will ever need to buy. The pair I have show no signs of play, excellent handles and sprung nicely and those Tungsten Carbide blades are fabulous. I can’t image ever needing to replace these as long as they’re looked after.
Bought once and bought right I feel, really can’t recommend them enough.
Wie von Knipex nicht anders zu erwarten ist auch dieser kleine Seitenschneider ein ausgereiftes Produkt. Liegt gut in der Hand, perfekte Verarbeitung. Die Hartmetallschneide ist einfach spitze, saubere Schnitte auch von harten Drhten. Teuer, aber jeden Cent wert.
