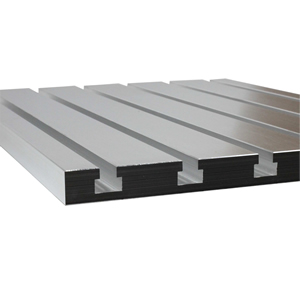

Stritzelberger TNP-6040 T-slot Plate
T-slot plate 6040.
Stritzelberger GmbH.
Your competent partner in terms of clamping technology.
- The right solution for every application.
- Wide range of products
- Always there for you!
Technical details:
Suitable for stones according to DIN 508 parallelisity: +/- 0.01 mm / 200 mm L = 600 mm B = 400 mm H = 20 mm H1 = 7.5 mm H2 = 8 mm D = 50 mm A = 10 mm C = 16 mm.
Description:
The T-slot plate comes with a smooth, closed base which allows the plate to be sucked on a vacuum table. For attaching to a machine table/frame, holes are simply attached to a suitable place. You can do this very flexible yourself, or you can use our service.
Box contents:
1 x T-slot plate TNP6040.
| Dimensions: | 60 x 40 x 2 cm; 10.8 Kilograms |
| Model: | TNP-6040 |
| Manufacture: | Stritzelberger |
| Origin: | Germany |
