Touch Screen Monitor, ELECROW 10.1 Inch 1920X1080p HDMI&VGA Portable Touchscreen Monitor with Built-in Speakers for Raspberry Pi, Game Consoles, Windows PC
ELECROW 10.1-inch 1080P IPS HDMI Touch Screen Monitor with Built-in Speakers
Copy and Extend Mode
You can set the monitor to copy mode or extended mode according to usage requirements.
Notice: Not compatible with Mac!
Versatile Multi-Mount Way
This touchscreen monitor can be secured with a monitor arm and a provided metal stand on the table.
Furthermore, you can use the VESA wall mount pattern, easily mount your LED monitor on the wall in a manner that is both aesthetically pleasing and conveniently practical.
Specifications
- Display Technology: LED Display
- Screen Size: 10.1 inches
- Aspect ratio: 16: 9 (width: height)
- Panel brightness: 350cd / m²
- Contrast: 800: 1 (Min) (transmission)
- Resolution: 1920X1080, up to 1080p
- Display color: 262K/16.7M (6-bit/6-bit+Hi-FRC)
- Response time: 13/12 (TYP) (Tr/Td)（ms）
Features
Full HD 1080P IPS Screen
This touch screen monitor delivers a crystal-clear image with 1920 x 1080 resolutionand offer wide viewing angle.
Capacitive USB Touchscreen
Plug and play! This HDMI monitor supports multipoint touch, no need to install the driver.
NOTICE: The USB cable on the monitor is for the touch function, please do not connect the cable to the external power source. Otherwise, the touch function will unavailable.
Multiple OS Supported
When working with Raspberry Pi, the mini monitor can compatible Raspbian, Ubuntu, Kodi, Win10 IoT, supports a single point touch. When used as a computer monitor, it compatible with Win10/8/7, supports 5-point touch.
Warning
When working with a Raspberry Pi 4, PLEASE comment out by adding # in the front of “dtoverlay = vc4-fkms-V3D” or delete this line directly in the config.txt file.
Touch Function Issue
1. Please connect USB cable of the monitor to the signal output device to ensure the touch function works properly.
Connect this USB cable to an external power source will cause the touch function unavailable.
Notice
- 1. If the screen flickers caused by the power insufficient, please use the 12V/2A power adapter,
- wall charger (full 5V/2A or above), or USB 3.0 port to power the screen.
- 2. Please try to use the latest image of Raspberry Pi’s official website when worked with RPI.
| | | |
|---|---|---|

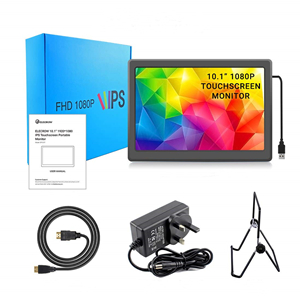

170 Degrees Wide Viewing Angle of IPS Screen | Flicker-less technology and a blue light filter help to say good-bye to annoying screen flickering and injury from blue light. | Package Includes:10.1-inch HD LED Touch Screen Monitor x 1 12V/2A UK Power adapter x 1 HDMI cable x 1 Metal Rack x 1 User Manual x 1 |
| Weight: | 1.32 kg |
| Dimensions: | 31 x 30.7 x 7.7 cm; 1.32 Kilograms |
| Brand: | ELECROW |
| Batteries Included: | No |
| Manufacture: | ELECROW |
| Reference: | DISSF101P1 |
