VCELINK RJ45 Pass Through Shielded Connector CAT6 with RJ45 Boots Connector End Pass Through RJ45 Plug Gold-plated 20 Pack
| Weight | 1.46g/Pack |
| Size | 21.49×11.68×10.69mm |
| Colour | Golden |
| Housing | polycarbonate |
| Contact Blade | copper alloy |
| Gold plating | 50u” |
| shielded shell | copper alloy |
| Blade | 3 Prong blade |

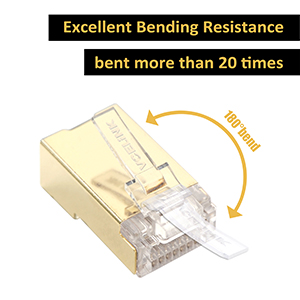

| Durability | 1200 mating cycles |
| Operating Ambient Temperature | -40 °C ~ 70 °C |
Description : Gold Plated Shielded RJ45 Pass Through Connector Plug
The benefits of the Pass Through RJ45 connector:
Pass Through type RJ45 crimp connector: The order of the cabling can be checked twice by the pass-through design of the connector. Thus, the assembly process is much easier than the conventional type, which can reduce the error rate. Professional RJ45 crimping pliers are required for this.

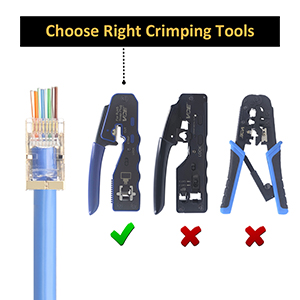

Operating Instructions (Tools are not included in the package)
| | | |
|---|---|---|

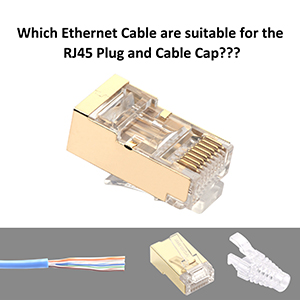

Applicable Ethernet CableSuitable for multi-stranded and single-stranded cables 23AWG ~ 26AWG, wire OD ∅0.93 ~ ∅1.04. AWG and OD must both meet the requirements | Excellent Bending ResistanceBent more than 20 times | Choose Right Crimping ToolsWith just one crimping tool , you can assemble the RJ45 Network cable yourself. |
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Shielded | ✓ | ✓ | ✓ | |||
| Quantity | 1 | 50 | 10 | 25 | 10 | 50 |
| Compatibility | RJ45 | CAT5E/CAT5 | Cat7/Cat6A | CAT6/CAT5E/CAT5 | Cat7/Cat6A | CAT6/CAT5E/CAT5 |
| Material | Steel-Plated | Gold-Plated | Gold-Plated | Gold-Plated | Gold-Plated | Gold-Plated |
| Dimensions: | 2.15 x 1.17 x 1.07 cm; 78 Grams |
| Manufacture: | VCELINK |
| Origin: | China |
