CAMWAY Digital Ultrasonic Thickness Gauge Meter with Calibration High Resolution Data Storage Backlight LCD,Steel Metal Thickness Gauge Tester for Steel Aluminum Metal Copper Plate

Overview:

This ultrasonic thickness gauge is an intelligent handheld ultrasonic thickness gauge. It is controlled by a microprocessor and uses the principle of ultrasonic measurement to quickly, damage-free and accurately measure the thickness and sound velocity of a variety of materials.
This Digital Ultrasonic Thickness Gauge Meter suitable for the material that conduct and reflect constant sonic velocity, such as metal, plastic, ceramic, glass, etc. Capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment and corrosion degree of various parts in use.

Description:

Product Sizeï¼š65x146x30mm

Measuring rangeï¼š0.039 to 8.858 inch(1mm to 225mm)

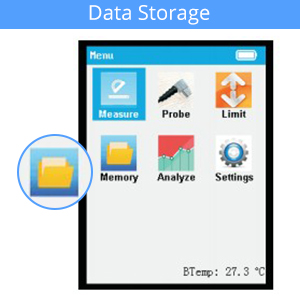

Data storageï¼š500

Operation frequency ï¼š5MHz

Measurement error ï¼šÂ±(0.5%H+0.05)mm

Lower limit of pipe measure ï¼šÎ¦20x3mm/ 0.118inch (steel)

Adjustment range of soundspeed ï¼š1000ï½ž9999m/s.

Batteryï¼šwith 3pcs Ni-MH AAA 800mAh 1.2V rechargeable batteries and packed with 5V 1A USB cable recharger .

Please do not install non-rechargeable batteries

Two Calibration Modes: Basic Calibration and Sound Speed Calibration

Package Included for Multiple Applications(Metal, Plastic, Ceramic, Glass, etc):

1 x ultrasonic thickness gauge with calibration block(calibration block is close to operation key,with thickness of 4.0 mm,The sound speed in calibration is automatically set as 5900m/s)

1 x probe (5MHz, 10 mm)

3 x Ni-MH AAA 800mAh 1.2V rechargeable batteries

1 x USB cable

1 x Charger (5V, 1A)

1 x Hard Carrying case

1 x English User Manual

Check Offer Price

Dimensions:	27.3 x 19.9 x 6.7 cm; 780 Grams
Manufacture:	CAMWAY
Reference:	CAMWT196UKK
