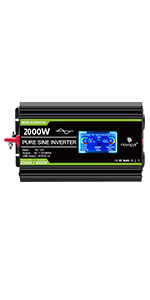

Novopal 2000W Pure Sine Wave Inverter 24V to 230V 240V Car Converter Power Inverter with LCD Display 2AC Outlets And USB Port-Remote Control for motorhomes,Truck,Boat,camping,household,Va
High Quality Cables:
High density pure copper core, low resistance, stable voltage
- No Load Current: <0.6A
- Efficiency: up to 90%
- Pure sine wave inverter
- Remote control
- Lcd display
Double Cooling Fan:
The cooling fans will not start work until the temperature exceeds 45 °C, they will keep quiet when use low-power household appliances, which will keep you away form noise
- Package Includes:
- 1x NOVOPAL 2000W Sine Wave Power Inverter
- 1x Battery Cables (black and red)
- 1x remote control
- 8 x Fuses(backup)
- 1x User Manual
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|
| Rated Power | 1000 watt | 1000 watt | 2000 watt | 2000 watt | 3000 watt | 3000 watt |
| Instantaneous power | 2000 watt | 2000 watt | 4000 watt | 4000 watt | 6000 watt | 6000 watt |
| Input voltage | 10-15V | 15-31V | 10-15V | 15-31V | 10-15V | 15-31V |
| Output voltage | 230V/240V | 230V/240V | 230V/240V | 230V/240V | 230V/240V | 230V/240V |
| Number of sockets | 2 | 2 | 2 | 2 | 2 | 2 |
| PURE SINE WAVE | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Remote Control | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
| Lcd Display | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ |
Specifications:
Power: 2000 watts rating power
Input voltage: DC24V (15-31V)
Output Voltage: 230V±10%
Output frequency: 50Hz
Output waveform: Pure Sine Wave
USB/USB port: DC5V/2.1A
Working temperature: -10℃- 40℃
Cooling method: Intelligent air cooling
Over-voltage Shutdown: 31V±0.5VDC
Low-voltage Shutdown: 15V±0.5VDC
Cables 50CM/16mm² 2 pair
ATTENTION:
Do not connected directly to the solar panel
Connect the inverter to a 24V battery with the standard cables provided with product, and plug your AC devices into the inverter.
Don’t use it for high rating power appliance above 2000W. Don’t run at max 2000W power load for long time.
Do not put the inverter into sunlight directly, keep it in cool and dry environment
Special case: compressor power control at 1000w or less
Built-in fuse,do not install
Description of the LED status:
1.Green ~ operating normally
2.Undervoltage ~ red light
3.Overvoltage ~ red light
4.Over temperature ~ red light
5.Overload – red light on
6.Short circuit – neither red light nor green light is on
| Dimensions: | 32 x 17 x 10 cm; 4.8 Kilograms |
| Model: | 4K-ED632 |
| Manufacture: | novopal |
| Origin: | China |
Bought for son to use in cab for microwave, works great but I did get an Anderson lead for connecting.
Well, as you can see from the attached photos, the battery level indicator on this inverter is, like the 24v edecoa, also totally incorrect. The photos (all taken within a few seconds of each other) show the battery voltage at 24.54v after I’d been running a full-sized fridge/freezer on it at night for 3 hours or so. By any reasonable estimation, the 24.54v battery level is actually around 65% full. The voltage measurement on the LCD screen of the inverter itself shows 24.5v charge. Quite why the remote chooses to display this as a fully charged battery (4 bars) is beyond me. It actually represents a battery that you wouldn’t ideally want to use for much longer without charging.
It’s a real shame, as the inverter itself seems to work well. It’s just the crazy battery level indicator on the remote that lets it down. The Novopal 1000w 12vDC-240vAC inverter that I had previously had a pretty accurate battery-level display — it seems to just be an issue with these 24v models.
No complaints other than that. The inverter works wells and provides a a fairly smooth sine wave under a 1200w continuous load.
I had this added into my Motorhome so I could run a microwave and induction hob via the inverter fed by three 110v batteries, handles the job nicely plus I leave it running my fridge too so very happy with i
I’ve run my strimmer off this and various battery chargers for tools.
I have left it on for over 8 hours – all seems good. If I remember I will update the review.
I would recommend.
I’ve been very happy with my Novopal 12v to 240V 3000w Inverter, it was working great for almost a year of regular use.
Unfortunately it did eventually stop producing AC power.
AMAZON helped me contact the Supplier, he was very helpful and supplied me with a new Inverter, I did have to organise DPD to collect & deliver it back to the Supplier at my own cost.
I have so far tested it on a CTEK 10A battery charger & my 1000w Microwave & is working fine.
I’m very happy with with Novopal & would purchase again in the future.
Bought it for use in the motorhome. The Mrs uses it for the hair drier (happy wife happy life) Tried it out a couple times & no complaint from her.
As for me it could been supplied with a positive + boot for live feed to the inverter, I had to use red insulating tape. But I like it for what does & the price.
Should be used for heavy loads eg 2.5kw very sparingly as takes a lot from the batteries which will need replenishing. Must use both pairs of battery cables due to current taken otherwise cables will get hot. Otherwise a great product for irregular use in Motorhome.
At first, we ran it from the car battery with the engine running which worked well, except we had to use a extension lead to get the power to where we wanted it. Purchased a leisure battery whilst away and able to leave switched on over night with air bed plugged in. Bliss waking up with a solid fully inflated airbed and didn’t hardly drain the battery.
But, be aware, these units are battery eaters and you do need some way to charge up your battery, like a solar panel or split charger in the car. It will happily boil a kettle of water but this does really zap the battery.
For general light use where you need 240v, it’s definitely worth getting. Ideal for charging tablets, phones etc or keeping your airbeds inflated overnight. Would I reccomnded this; yes, would I buy again; yes, would I reccomnded some charging means; definitely as off grid your get about 2 -3 full night’s running then you will need to charge the battery. Not really suitable for running off a car battery unless car is running (but that can put a strain on your alternator). Ours is a large old LandRover so everything is fairly heavy duty, but I’d imagine if you run it from a car battery on a small vehicle, it would kill your battery or alternator in no time. Leisure battery is a must really.
The LCD display is brilliant at showing you the battery status and what it has left in it.
It does spark when you first connect it to the battery which made me jump first time (even turned off).
I also mounted it in a plastic box with removable lid to keep moisture away and cut a square hole in the front to allow plugs to be put through and drilled two holes in the rear for the power leads to the battery. I used some 2×2 wood as battoning inside secured with screws through the box then secured the inverter to that giving it plenty of air flow all around above, sides and below as they can get hot.
All in all, we were happy with our unit and hope it lasts many more camping trips.
This is the second one I have bought because the first one I blew it up oops
After being happy with the 1500w I got, I decided to upgrade to the 3000w and it’s just as good but with more power range! 100% recommend any inverter from this brand!
Remote control is brilliant very easy to install but unsure what the fuses are for and where to put them. Works my hair dryer, straightness and coffee machine in my camper perfectly.
Charging my battery’s for my power tools in my van its perfec
