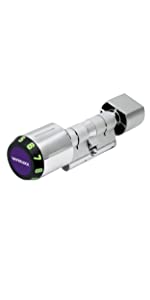

WAFERLOCK C760 Euro Smart Cylinder, Smart Lock, IP68
WAFERLOCK C760 Euro Smart Cylinder, Smart Lock, IP68 Waterproof, Fire Protection, App Control, Bluetooth, RFID Card/Pin Code, Anti-Drill, 35:35-50 (70-85mm), Nickel Finish, EN15684 Certified
Adjustable Cylinder
C760 Smart Cylinder is designed to adjust the cylinder length for internal side. You will get extra 15mm compatibility for internal cylinder length.
Product Specifications
| Transponder | MIFARE Classic / MIFARE DESFire |
| Communication | 2.4G RF / Bluetooth |
| Cylinder Length | 30/30-45mm to 50/50-65mm |
| Power Supply | CR2 lithium battery x 1 pcs |
| Battery Life | Up to 2 years (10 openings a day), service at 20°C |
| Operation Temperature | -20°C ~ 60°C |
| Waterproof | IP68 rating |
 |  | |
|---|---|---|
| Compatible with euro profile mortice lock | Yes | Yes |
| Method of entry | Key card, Key tag, Combination, Mobile App | Key card, Key tag, Passcode, Mobile App |
| Virtual key sharing | Yes | Yes |
| Track access history | Yes | Yes |
| Easy to install | Yes | Yes |
| Power Supply | Yes (1 x CR2 lithium battery) | Yes (1 x CR2 lithium battery) |
| Communication | 2.4G RF / Bluetooth | 2.4G RF / Bluetooth |
| Waterproof rate | IP68 | IP68 |
| Available size | 30/30mm – 50/50mm | 8mm Spindle; Door thickness 32-75mm |
| Weight: | 529 g |
| Size: | 35:35-50 |
| Dimensions: | 23.3 x 9.7 x 6.3 cm; 529 Grams |
| Brand: | WAFERLOCK |
| Model: | C760S-B05-3535 |
| Part: | C760S-B05-3535 |
| Colour: | Silver |
| Pack Quantity: | 1 |
| Batteries Required: | Yes |
| Batteries Included: | Lithium Metal |
| Manufacture: | WAFERLOCK |
| Dimensions: | 23.3 x 9.7 x 6.3 cm; 529 Grams |
| Quantity: | 1 |
| Size: | 35:35-50 |
Achet pour pouvoir donner l’accs ma maison plusieurs personnes, cette serrure s’est install sans problme sur la porte (il faut bien vrifier la compatibilit, mais avec les cotes du constructeur c’est plutot simple).
La serrure est fournie avec 2 cartes permettant un accs direct ainsi qu’une vis (longue tte plate) pour la fixation.
Elle est d’apparence solide et une fois installe ne bronche pas (comme les autres serrures que j’ai pu regarder les tests).
La pile est fournie avec, c’est une pile 3V qui durera dans le temps (au contraire des piles classiques utilises dans les autres serrures).
L’entre du code est plutt bien faite (tourner pour aligner avec le chiffre voulu, puis attendre le bip de confirmation), mais il faut bien compter 20 secondes pour rentrer un code de 6 chiffres.
La serrure n’ouvre pas la porte toute seule, elle se dverrouille juste pour que vous puissiez tourner vous mme la poignet de la serrure.
J’aurais aim avoir la possibilit d’acheter un pont ou une passerelle permettant d’ouvrir la serrure depuis mon smartphone sur internet par exemple, mme s’il est possible de le faire avec le smartphone en tant juste devant.
Bref, un produit rassurant et bien fait, mais dont l’offre est encore parfaire.
Trs bon produit. Mis en service le 17/08/2023. Facile mettre en place mme pour ceux qui ont deux mains gauches et dix pouces. Simple et conomique, remplace toute serrure europenne. Toutefois il reste un effort au constructeur pour avoir la note parfaite : Il faut trs vite une passerelle Bluetooth vers WIFI mettre sur la Box de la maison. Cela permettrait une commande d’ouverture/Fermeture distance via l’application WAFERKEY qui est assez bien faite (teste sur iPhone). Tout le personnel de l’entreprise utilise ce smart cylindre trs facilement. Trs bon achat !!
Received and had the love door lock out and this one pushed in within 25 min. Had watched instructions and installation video night before. Was apprehensive at my measuring skills but appear to have got it right which I’m happy about.
Added myself and my wife through app / pin and RFID keys right away. No issues with us both using them to come in.
My only reason for dropping a star at present is the firmware update.
I only have the one battery supplied and attempted to do an update but stopped as it took the battery from 100% down to 50%. Not sure if this is normal for the firmware update but I’ve cancelled it and ordered a couple more batteries incase it dies mid update.
I’ve emailed support as well to see if I can get further information.
If all comes back and I get firmware sorted I’d probably change to 5 star.
******
Edit – emailed company and within 2 emails which resolved the firmware issues / my battery is showing 100% again and the door lock is working fine.
Fantastic team for resolving issue who are based in Taiwan.
Was genuinely surprised they were able to resolve the issue so quickly without me replacing lock.
5 star all the way.
Un producto del siglo XXI, no ms prdidas de llaves, ni dejrselas dentro de casa. La mejor llave la huella del dedo, muy buen producto
I settled on this product for a combination of reasons. In particular, I wanted a product that allowed a code as input.
Installation was as easy as they come. Watch the tolerances however: in my case it was nearly jamming itself at every turn. To amend this problem I used a dremel to remove material in the area that was scraping. Hopefully this problem is isolated just to my lock, but should you face the same issue remember that there is a solution.
The combination can be inserted by turning the handle, pretty much like you would do on a safe. This input method however is very slow (pretty much like a regular safe), so ultimately you will want to use a badge or tag. The good news here is that it’s a standard NFC tag so chances are you’ll be able to use your bank card or other similar NFC-enabled card. May not work on all of them though. Note that if you hold more than one in your wallet, you should input all of them in your lock otherwise there’s no telling which one it will pick and you may be denied entry until you remove the valid one from your wallet and swipe it directly.
The firmware features are ok but could be improved slightly. Hopefully they will put out firmware revision to improve them.
As the lock works by spinning freely unless the tag/code is validated correctly, you need to consider it like a key that is “inserted” electronically. This means that when you leave home you will need to present your card, then lock the home. This essentially makes the “toggle mode” feature of the lock pointless except for specific scenarios.
The smartphone app REQUIRES internet connectivity to work. If you don’t have internet it will simply refuse to start. This is quite annoying as there’s no reason to mandate internet connectivity. It also means you SHOULD NOT rely on your smartphone to unlock your home, so make sure you have a code and a card always available.
A good quality piece of kit , easy install and set up. Only gripe I have is that you can’t use all the features at once it’s either key thobs or the app on the phone not both. Make sure if your using the thobs to program a new pass code as it will stay on the default of 123456#. Also you can get extra thobs separately.
Pour ce qui est de l’autonomie, il faut compter facilement un an (donne constructeur) mais dans les faits, ma batterie reste ternellement cent pour cent pour l’instant.
Vraiment super . Seul petit bmol la programmation de fait rapidement mais il faut un peu de temps pour comprendre comment fonctionne faire fonctionner la serrure avec les codes chiffres. Il faut bien penser valider le # aprs la validation des chiffres et ne pas trop attendre pour passer d’un chiffre l’autre.
Attention les vis ne se retirent pas, elles s’enfoncent et ensuite ressortent pour bloquer. Il n’est pas prvu de monter le cylindre dans les 2 sens, dommage quand on a cylindre asymetrique, ca veut dire que pour ma porte, je mets la partie lectronique l’intrieur (voir photo), c’est super pratique pour empcher les voleurs de sortir de chez soi. Le support est trs ractif, et ils m’ont mme propos du sur-mesure, c’est vraiment bien, bravo !
New house has doors that lock on close so I knew sooner or later the wife would be calling me to say she had locked herself out. Invested in this, a little pricey but the quality is great and fits the thick 10cm door i have. Fitting took about 15 minutes and another 5 minutes playing with the app to get it going. Ive read you can use debit cards to unlock but i havnt managed to do this yet so may not be a feature but even without there are 3 different ways to unlock. Either app, pin or key fob. Very pleased.
The Waferlock C760 Smart Lock — A Review
The Waferlock C760 completely replaces the Euro Cylinder lock in doors where the lock, not the handle, turns the hooks and other bits that lock the door. That’s exactly how my composite door works. What attracted me to this lock wasn’t just its IP68 rating but also the promise that even I could install it and on top of that it had some seriously good security anti-theft features, including anti-drill, anti-snap, and anti-bump.
If you’ve ever had to replace a Euro Cylinder type lock, it’s ever so easy to do. You simply undo a screw on the edge of the door, wiggle the lock out, get the replacement lock and wiggle that one in then do up the screw on the edge again. For most people, it’s a five-minute job.
Understandably when I saw the C760 I thought ‘This is going to be easy’, unfortunately it wasn’t, but that is mainly because I’m a bit of an idiot. However, I tend to believe that instructions should be written for idiots so I do think the installation manual writer presumed too much when they thought the end user might have some intelligence, and as you’re just about to see, I didn’t.
Before I explain where I went wrong, I’m not saying this to put you off, on the contrary, this is a very impressive smart lock, however, hopefully if I let you know the stupid things I did, you won’t make the same mistakes, not that you would have of course.
So, let’s say you’ve taken your old lock out and have the C760 in front of you. You should take the bulbous end (the outside handle) and slide the lock into the door. Once in the correct position do up the screw/bolt on the edge of the door to hold it in place. Now here comes a slightly difficult bit. There’ll be a handle that slides onto the bit that’s protruding on the inside of the door, this is the bit you’re going to turn once you’ve fitted it correctly. The only thing is you’ll have to line up a hole in the handle to one of the holes in the protrusion and then screw in a tiny weenie grub screw — it’s very small so please take precautions, such as laying a towel in the drop zone, in case you drop it.
What the manual didn’t make clear is the holes in the protrusion are drilled all the way through, which means there are two sets of holes, those you need to line up and screw the tiny grub screw into, and those other ones which are slightly smaller, you know, that you should ignore. You can probably guess which ones I tried screwing it into. Anyway, learn from this idiot, don’t do that, make sure you line up the handle’s hole with the nice big correct ones in the protrusion.
Once that’s done the next step is to remove the cover of the bulbous outer handle so you can insert the battery. The difficulty here is there are two tiny screws that need to be loosened by turning them in the opposite direction to what most people would expect. The only thing is you can’t easily tell if it’s unlocked, and that combined with how much force is required to remove the handle leaves you feeling like you’re going to break the lock. I’m pretty sure it’s supposed to arrive in the unlocked position so it might be worth giving the bulbous handle a bit of a yank before attempting to loosen the screws in the first place.
Still, I did eventually manage to get the cover off, put the battery in, replace the cover and tighten the screws back up. Having done it once I don’t think I’d struggle the next time, and it’d probably only take about 15 minutes to install it. However, be prepared for a bit of a tussle the first time. Is it worth the hassle? Yes, it is.
There’s one more thing to mention that might be an issue, do make sure you understand how to measure the lock you have in terms of choosing which version of the C760 lock you buy. If you’re in any doubt, contact Waferlock, check their online guidelines or ask a helpful locksmith.
Once the lock has been installed you have two main options as to how to use it. The first is to use it in standalone mode. This wouldn’t be my first choice but for those who don’t want to use a mobile phone to set it up, this is an ideal practical solution. The way it works is you get a master-key/programming card with the lock, and by tapping this against the lock you can follow certain steps that will allow you to use a PIN number and/or key cards. The PIN number system is termed ‘a combination’ by Waferlock, because the numbers are input by dialling them in on the handle, a bit like the way you’d open an old-fashioned safe. And as for the key cards, you get a few included with the lock, however, you may be able to use your bank cards if they are the RFID type.
My preferred way to set it up this lock is to use the Waferlock app. Initially, you’re still going to have to use the Programming Card/Master Key Card to allow the app to take control of the lock, but from then on, the app has full control. When it comes to programming the app you press the name of your lock, and on the next screen select the image of a person’s head at the top. From here you can create individual profiles. As you do so, you can follow on-screen prompts to add key cards, combinations or invite others to install the app and use it as an e-key. You can also set profiles up for multiple people so they can all have their own combinations, cards or app access. This will enable you to check the history page on the app so you (the owner profile) can see a list of who unlocked the lock and when. The app mode also offers a proximity function that is supposed to unlock the C760 as you approach it, however, this is currently in beta stage. Waferlock have mentioned they’re currently developing a Wi-Fi bridge for this lock, if they do I think many people would appreciate the ability to set up or delete profiles and unlock the door remotely.
We’ve now been using the lock a lot on a daily basis. The combination method is a bit slow (although you can adjust the settings in the app to speed it up) so just gets used as a backup process if we don’t have our phones or key cards with us. Still, it feels more convenient than using keys as we had done in our old less smart life.
As for that all-important IP rating, time will tell if it’s durable against the sea air here, meanwhile, it’s certainly felt like a step up in our daily lives. If you’ve got a door that uses the Euro Cylinder lock to turn the locking mechanism, then the Waferlock C760 is well worth checking out. We love it.
So I bought this lock stupidly thinking it will lock my door automatically for me. It doesn’t, it just replaces your key (which is fine by the way).
The installation can be a bit fidly. I had to set the lock to manual so I could line up some of the Allen key parts easier. I know nothing about locks and I managed to get it working.
My only complaint would be you can’t seem to active the lock with a tag, you can only deactivate it which means you have to put it on automatic for it to work properly.
I would recommend it. Doesn’t attract attention too much which is always good!
This lock prevents need for key boxes or calling a lock Smith if accidentally locked out. Set up with phone, combination and RFID tag key ring. In fact my contact less credit card also works with it once you add it using the App. Very Easy to install and highly recommend this product for a smart lock.
Waferlock is on my front door. This bad boy will keep you and your belongings safe. What I like best about the lock is that the numbers are built into the device so they can’t easily be damaged. It’s sleek design and chrome finish does not draw too much attention to my front door.
To top it all off, I received some tech support as and when I needed it.
A great find.
