Pipishell TV Wall Bracket mount for 26-55 Inch TVs, Swivels

Specifications:

Fits 26″ to 55″ flat panel TVs/monitors and supports TV/monitors weight up to 45kg/99lbs.

Compatible with all major TV brands including Samsung, LG, Sony, TCL, Vizio, Philips, Sharp, Dell, Acer, Asus, HP, BenQ, Hisense, Panasonic, Toshiba and more.

Fits VESA mounting hole patterns: 400x400mm, 400×300, 300×400, 400×200, 200×400, 300×300, 300×200, 200×300, 200×200, 200x100mm, 100x200mm, 100x100mm(100×100 – 400x400mm).

The myriad of angles (rotation ±3°, tilt up 8° and tilt down 10°, swivel left to right 45°) can help your screen adapt to different situations: sitting, standing, working, laying down, avoiding unsightly sun glare, keeping your screen secure.

Clear-up Desk Space, mounting your television or monitor to the wall helps reduce clutter by clearing up valuable desk space for a more efficient workflow. The arm collapses flat sitting just 10cm from the wall for a low profile, and can be extended 39cm from the wall.

Package includes: 1x TV wall bracket, 1x Standard mounting hardware, 1x User manual

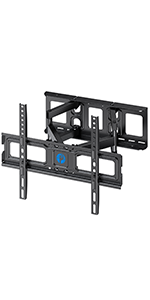

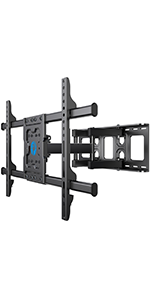

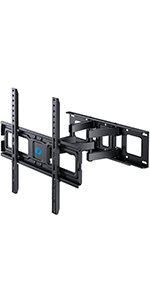

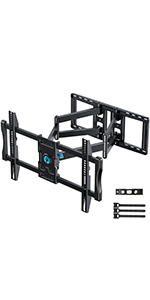

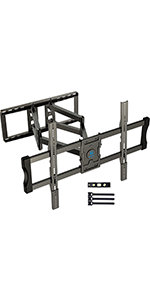

Model	PIMFK1	PIMF3	PILFK1	PIXF2	PIXF3
Distance from Wall	10.1 – 38.9cm	7.8 – 37.6cm	7.6 – 37.7cm	9.47 – 73.8cm	9.47 – 73.8cm
Swivel	±45°	±45°	±45°	±90°	±90°
Tilt	+3° ~ -5°	+8° ~ -10°	+8° ~ -12°	±10°	±10°
Rotation	±3°	±3°	±3°	±3°	±3°
Load Capacity	45kg	45kg	60kg	60kg	70kg
TV/Monitor Display Size	26 – 55 inch	26 – 55 inch	37 – 75 inch	37 – 90 inch	50 – 100 inch
Compatible VESA	100×100 – 400x400mm	100×100 – 400x400mm	200×100 – 600x400mm	200×100 – 800x400mm	200×100 – 800x600mm
Fitting Studs Spacing	8 – 16 inch	8 – 16 inch	8 – 16 inch	16 – 24 inch	16 – 24 inch
