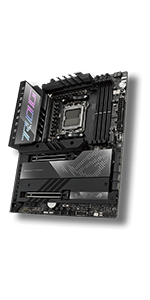

ASUS ROG Crosshair X670E Hero ATX motherboard, 18 + 2 power

TWO USB4 TYPE-C PORTS

Each USB4 port delivers up to 40 Gbps of bidirectional bandwidth for the latest super-speed devices and drives. External display support reaches up to 8K output if one of the ports is in use, or both can be employed for dual 4K displays.

SUPREMEFX

ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide exceptional recording quality. There’s also a low-dropout regulator for cleaner power delivery to the SupremeFX ALC4082 codec, and an integrated ESS ES9218 quad DAC capable of reaching -115dB THD+N for superior front-panel output. The combined solution allows for end-to-end 32-bit 384 kHz resolution playback that conveys all the subtlety and nuances of each audio track.

GROW YOUR GAMING WORLD WITH AURA SYNC

Up your game with complementary Aura Sync enhanced aesthetics, featuring preset lighting effects that can be easily synchronized across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.

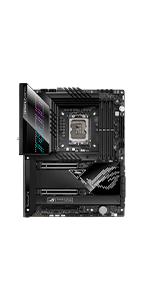

CPU	X670 AM5	Z690 LGA1700
CPU power	18+2 (110A)	20+1 (90A)
Memory	4 x DIMM, Max. 128GB, DDR5	DDR5 4 x DIMM, Max. 128GB
Graphic output	1 x HDMI Port / USB4	HDMI 2.1/Thunderbolt 4
Expansion slots	2 x PCIe 5.0 x16 (@x16 or x8/x8) 1 x PCIe 4.0 x1	2 x PCIe 5.0 x16 (@x16 or x8/x8) 1 x PCIe 4.0 x16 slot ( x4 or x4/x4 modes)
SATA 6Gb/s	6	6
M.2	2 x 2280 (PCIe 5.0 x4) 1 x 22110 (PCIe 5.0 x4) from PCIE 5.0 M.2 Card 2 x 2280 (PCIe 4.0 x4)	1 x 22110 (PCIe 4.0 x4) 1 x 2280 (PCIe 3.0 x4) 1 x 2280 (PCIe 4.0 x4 & SATA) 1 x Hyper M.2_1 (PCIe 5.0 x4/PCIe 4.0 x4) 1 x Hyper M.2_2 (PCIe 4.0 x4)
USB	2 x USB4, 2 x USB 3.2 Gen 2×2, 9 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, 6 x USB 2.0	2 x Thunderbolt 4; 1 x USB 3.2 GEN 2×2 (1C@F); 7 x USB 3.2 GEN 2 (6A1C@B); 4 x USB 3.2 GEN 1 (4@F); 6 x USB 2.0 (2@B,4@F)
Wireless	Wi-Fi 6E	Intel Wi-Fi 6E
Ethernet	1 x Intel 2.5 Gb	1 x Intel 2.5Gb
