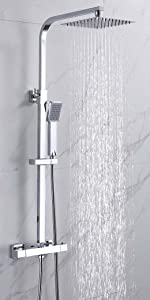

Huibathroom Thermostatic Shower Mixer Set for Bathroom Square Chrome Rainfall Shower Head Handset Exposed Valve, Hose & Rail

Our thermostatic shower system is equipped with a safety lock at 38°C. Anti-scalding design to protect children and the elderly, enjoy a more comfortable shower. The thermostatic valve will automatically balance the cold and hot water pressure in short time to maintain water temperature stable.

This complete shower kit is composed of solid brass for a more durable and long-lasting product, finished in stunning chrome.

Two separate controls, one for temperature and the other one for adjusting the flow rates

Diverter valve for changing between the handset and the overhead (Please note: they can not be used at the same time)

How to Adjust the Height of Shower Column?

• 1. Find the height control parts on the shower column
• 2. Unscrew it, then the shower column be adjustable
• 3. Adjust the height of shower rod according to your height and ceiling height
• 4. Finally, screw-in and fix the height

Specifications:

Square shower Head Size : 200mm x 200mm

Round shower rod: 800mm-1200mm adjustable height

Round exposed thermostatic mixer valve: 40mm x 275mm

The distance between is 150mm with the hot water supply on left and the cold water supply on the right.

Handheld:Square, single function,adjustable angle

Body Material : Brass

Finish : Chrome

Item Weight : 4.2kg

Shower head Material : Stainless Steel

System Compatibility	All Systems	All Systems	All Systems	All Systems	All Systems
Minimum Bar Pressure	0.5 Bar	0.5 Bar	0.5 Bar	0.5 Bar	0.5 Bar
Maximum Bar Pressure	5.0 Bar	5.0 Bar	5.0 Bar	5.0 Bar	5.0 Bar
Thermostatic Shower Mixer Valve	Square	Round	Round	Round	Round
Tube Diameter	30mm /26mm	24mm / 22mm	24mm / 22mm	24mm / 22mm	24mm / 22mm
Inlet Connection Size	G1/2″ & G3/4″	G1/2″ & G3/4″	G1/2″ & G3/4″	G1/2″ & G3/4″	G1/2″ & G3/4″
