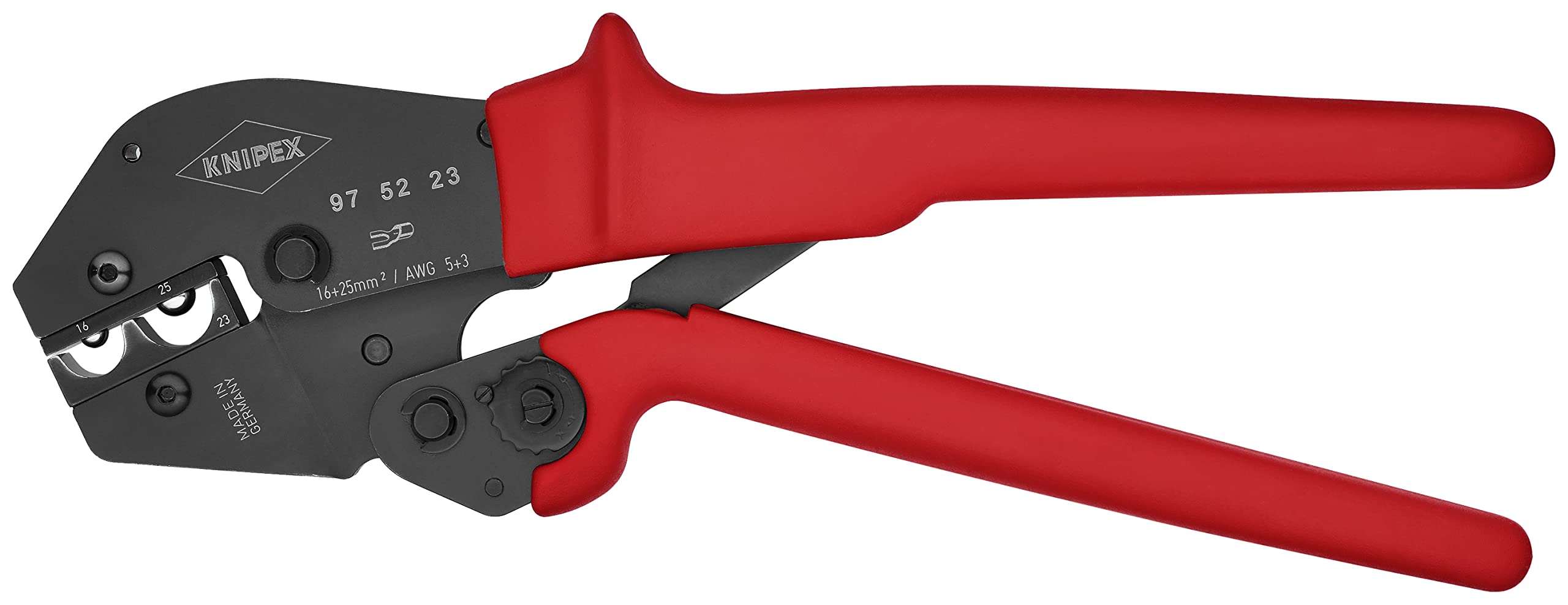

Knipex Crimping Pliers for two-hand operation burnished

Durable and accurate

The precision die with two crimping dies made of high-grade chrome vanadium electric steel is very stable.

Strong with large cross-sections

30% less manual force compared to standard crimping pliers thanks to the toggle lever transmission plus the opportunity for two-handed operation ensure less tiring crimping of even large cross-sections.

Professional crimping result

Consistently high crimp quality and integral lock with release mechanism.

EAN 4003773-	052159	025467	048084	025474	025481	023678
Length (mm)	250	250	250	250	250	250
Handles	with non-slip plastic coating	with non-slip plastic coating	with multi-component grips	with non-slip plastic coating	with non-slip plastic coating	with non-slip plastic coating
Applications	non-insulated terminals + cable connectors	non-insulated open plug type connectors (plug width 4,8 + 6,3 mm)	non-insulated crimp terminals, tube and compression cable lugs in accordance with DIN 46234 and DIN 46235 and non-insulated crimp, butt and press connectors in accordance with DIN 46341 and DIN 46267	insulated terminals, plug connectors + butt connectors	insulated and non-insulated end sleeves (ferrules)	Coax-, BNC- and TNC-connectors
Capacity	16 / 25	0,5 – 1/ 1,5 – 2,5/ 4 – 6	0,5 – 1/ 1,5 – 2,5/ 4 – 6/ 10	0,5 – 1/ 1,5 – 2,5/ 4 – 6	0,25 – 0,75/ 1 – 1,5/ 2,5/ 4/ 6	/
Weight (g)	565	572	558	565	565	577
