MSI MAG Z690 TORPEDO Gaming Motherboard, ATX – Supports
MSI MAG Z690 TORPEDO Gaming Motherboard, ATX – Supports Intel Core 12th Gen Processors, LGA 1700 – 16 Duet Rail VRM 70A, DDR5 Memory Boost 6400+MHz/OC, 1 x PCIe 5.0 x16, 3 x M.2 Gen4, 2.5G LAN, Black
Fortified PCI-e 5.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:
- 1 x PCI-e 5.0 x16 slot (with Steel Armor)
- 2 x PCI-e 3.0 x16 slots
*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen4 & Gen3 M.2 Connectors
The MAG Z690 TORPEDO motherboard features MSI’s latest M.2 slots (Intel Optane supported):
- 3 x Gen4 x4 64Gb/s slots
- 1 x Gen3 x4 32Gb/s slot
*M.2 specifications may vary depending on the CPU installed.
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Intel 2.5G LAN
2.5G LAN: AnIntel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience.
USB 3.2 Gen 2×2 Type-C: Enables ultra-fast 20Gbps data transfer rates between devices.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.
 |  |  |  |  | |
|---|---|---|---|---|---|

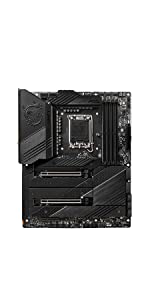

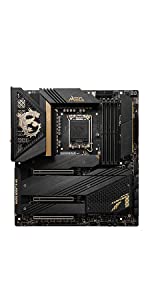

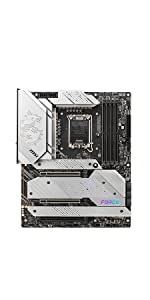

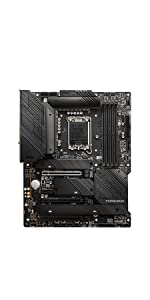

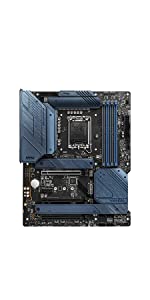

| MSI Gaming Series | MAG | MAG | MPG | MEG | MEG |
| Form Factor | ATX | ATX | ATX | ATX | E-ATX |
| VRM | 16+1+1 Duet Rail Power System, 70A SPS | 16+1+1 Duet Rail Power System, 70A SPS | Direct 18+1+1 Phase Power System, 75A SPS | Direct 19+2 Phase Power System, 105A SPS | Direct 19+1+2 Phase Power System, 105A SPS |
| DIMM Slots | DDR5 x 4 (6400+MHz/OC) | DDR5 x 4 (6400+MHz/OC) | DDR5 x 4 (6666+MHz/OC) | DDR5 x 4 (6666+MHz/OC) | DDR5 x 4 (6666+MHz/OC) |
| PCI-e x16 Slots | 5.0 x 1 / 3.0 x 2 | 5.0 x 1 / 3.0 x 2 | 5.0 x 2 / 3.0 x 1 | 5.0 x 2 | 5.0 x 2 / 4.0 x 1 |
| M.2 Slots | 4.0 x 3 / 3.0 x 1 | 4.0 x 3 / 3.0 x 1 | 4.0 x 4 / 3.0 x 1 | 4.0 x 4 / 3.0 x 1 | 4.0 x 4 / 3.0 x 1 |
| M.2 Shield Frozr | Top | Top | Top | Double-Sided | Double-Sided |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost 5 | 8-Channel (7.1) HD Audio with Audio Boost 5 | 8-Channel (7.1) HD Audio with Audio Boost 5 | 8-Channel (7.1) HD Audio with Audio Boost 5 | 8-Channel (7.1) HD Audio with Audio Boost 5HD |
| LAN | Intel I225V 2.5G LAN | Intel I225V 2.5G LAN | Intel I225V 2.5G LAN | 2 x Intel I225V 2.5G LAN | 2 x Intel I225V 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6E, Bluetooth 5.2 | Intel Wi-Fi 6E, Bluetooth 5.2 | Intel Wi-Fi 6E, Bluetooth 5.2 | Intel Wi-Fi 6E, Bluetooth 5.2 |
| Weight: | 1 kg |
| Dimensions: | 31 x 25 x 5 cm; 1 Kilograms |
| Brand: | MSI |
| Model: | 7D32-001R |
| Colour: | Black |
| Batteries Included: | Yes |
| Manufacture: | MSI |
| Dimensions: | 31 x 25 x 5 cm; 1 Kilograms |
