MSI PRO B660M-A DDR4 Motherboard, Micro-ATX – Supports Intel
MSI PRO B660M-A DDR4 Motherboard, Micro-ATX – Supports Intel 12th Gen Core Processors, LGA 1700 – DDR4 Memory Boost 4800+MHz/OC, PCIe 4.0 & 3.0 x16 Slots, 2 x M.2 Gen4 Slots, 2.5G LAN
Fortified PCI-e 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
- 1 x PCI-e 4.0 x16 slot (with Steel Armor)
- 1 x PCI-e 3.0 x16 slot
- 1 x PCI-e 3.0 x1 slot
Gen4 M.2 Connectors
The PRO B660M-A DDR4 motherboard features MSI’s latest M.2 slots (Intel Optane supported):
- 2 x Gen4 x4 64Gb/s slots
*M.2 specifications may vary depending on the CPU installed.
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
2.5G LAN Controller
2.5G LAN: A 2.5Gbps LAN controller delivers a premium network experience.
USB 3.2 Gen 2: Connect to devices and transfer files at high bandwidth rates: 10Gb/s.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
 |  |  |  | |
|---|---|---|---|---|

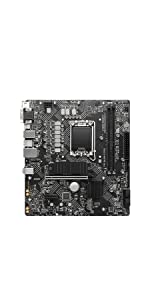

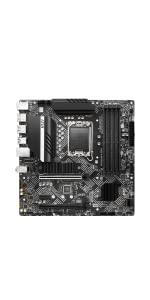

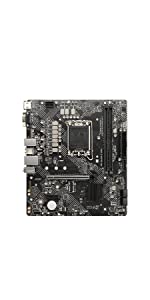

| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX |
| DIMM Slots | DDR4 x 2 (4600+MHz/OC) | DDR4 x 2 (4600+MHz/OC) | DDR4 x 4 (4800+MHz/OC) | DDR4 x 4 (4800+MHz/OC) |
| PCI-e x16 Slots | 4.0 x 1 | 4.0 x 1 | 4.0 x 1 / 3.0 x 1 | 4.0 x 1 / 3.0 x 1 |
| M.2 Slots | 3.0 x 1 | 4.0 x 2 | 4.0 x 2 | 4.0 x 2 |
| M.2 Shield Frozr | Single-Sided | Single-Sided | Single-Sided | |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost |
| Video Ports (Requires Processor Graphics) | 4K/60Hz HDMI 2.1 & VGA | 4K/60Hz HDMI 2.1 & DP 1.4 & VGA | 4K/60Hz HDMI 2.1 & DP 1.4 | 4K/60Hz HDMI 2.1 & DP 1.4 |
| LAN | 1G | 2.5G | 2.5G | 2.5G |
| WiFi & Bluetooth | Intel Wi-Fi 6 Module |
| Weight: | 1 kg |
| Dimensions: | 24.38 x 24.38 x 6.35 cm; 1 Kilograms |
| Brand: | MSI |
| Model: | PRO B660M-A DDR4 |
| Colour: | Black |
| Batteries Included: | No |
| Manufacture: | MSI |
| Dimensions: | 24.38 x 24.38 x 6.35 cm; 1 Kilograms |
Questa scheda madre “b660m-a pro wifi” il top delle schede madri di fascia media! Ha tutto al top per creare un PC da gaming e giocare fino alla risoluzione 2k, ha il wifi ed il bluetooth! Ha TUTTO, la consiglio!!!
Bought an MSI product because there was no way I would be dealing with Asus again because their customer service is horrendous.
The customer service from MSI is 100% bette
If it has everything you need, it’s a great choice. It includes a built in heat sink over the SSD slot, which I appreciate. I would argue that the WiFi version of the same board (which my friend owns) is worth it, however, as it has built in Bluetooth functionality.
Ho ricevuto il prodotto prima del previsto ed tutto eccezionale! Consiglio l’acquisto.
Scheda madre davvero ottima per assemblare un pc da caratteristiche non troppo esigenti, che dire ottima qualit prezzo.
It’s a good board for the price. Solid VRM and cooling. Everything is great until I was to test its pcie 3 x 4 slot. My 6800xt works well on its pcie 4 x 16 slot but can’t boot on its pcie 3 x 4 slot. I tried another gpu RTX 2080 which should be working well on pcie 3 slot also fails to boot. I guess there might be some bios settings to force that slot to work at the designed speed but there is only settings for the pcie 4×16 slot. Not sure if it’s my individual problem or not.
Also to note this board only support Gen 12 intel cpu. You need the 12 Gen cpu to boot and flash bios to support Gen 13 intel cpu.
Nothing to fancy i only bought it because i decided to upgrade my computer with new RAM and new SSD’s.
The MSI PRO B660M-A supports DDR4 Slots and also M.2 SSD’s
good mainboard for a fair price
It has all the ports I needed. HDMI and serial port for dual monitors work very well.
Presa in sconto attorno ai 170 ma (come molti altri componenti) trovo il costo comunque alto. Di per s una scheda madre buona ok, dissipa un po ok, ha mv2 etc per la memoria ok, 4 slot ram e 2 per vga (per nulla scontato su una micro atx), va bene. Ma ma anche 10-20 euro in meno li avrei trovati pi corretti. Non c’ d’altronde molto altro sullo stesso prezzo di altrettanto valente (se non mobo prive di dissipatori che sono sicuramente pi rischiose da usare al giorno d’oggi). Quindi comunque consigliata.
Awesome. Super fast delivery easy to install. Perfect condition. 5 sta
Facile installer.
Bon rapport qualit prix.
Mon seul regret c’est qu’il n’y a pas de port ARGB
Es una placa base que proporciona lo que la mayoria de los usuarios estndard necesita. Buena calidad de construccin y con los elementos justos y necesarios que necesitamos en una placa base.
Gran eleccin.
Perfect motherboard for a DIY computer. Has all the essential features of a modern motherboard. Really flies with a Gen.12 Intel Core i5 or i7 and a Gen3 M.2 NVMe SSD drive, coupled with 32GB of memory. Assembly and configuration was easy and uneventful. If the CPU you choose has integrated graphics (e.g. Core i5-12400) you can connect two monitors directly to the motherboard (4K HDMI 2.1 and VGA). If you need high performance for gaming, then you may need to add a graphics card, but for general usage the integrated graphics are just perfect. No problems with my pre-existing 350W power supply feeding everything. As a bonus, the micro-ATX small form factor allowed me to keep my old mini case.
Cons: Missing some of the bells and whistles of more advanced motherboard, such as built-in WiFi and Bluetooth, or 2.5G LAN, a DisplayPort and USB 3.2 Gen2 ports and USB-C.
My one complaint is not having an easier way to remove a big gpu. The clamp is hidden underneath and there’s no backup button or switch to help unclamping the gpu for easy removal. That with a master cooler blocking the way makes it difficult for when I plan to upgrade my gpu.
Sehr gutes Mobo, ziert meinen PC ganz wunderbar. RGB Fan Pins unten links waren verbogen. Da mich RGB nicht interessiert, kein groes Problem, auch kann man das wieder hinbiegen. Man fragt sich aber doch, wie berhaupt etwas verbiegen konnte…
Sinon c’est une bonne carte pour une config simple (pas de pcie 5 ni de ddr5 mais budget contenu).
Petit bmol, pas de port usb3.1 gen2.
Igual que las fuentes, slo compro placas MSI. Me da tranquilidad y seguridad. Todas las que he comprado no he tenido nunca un problema.
Relacin calidad precio inmejorable por 109 que estuvo en oferta. Muy buena calidad lo tengo montado en un 12400 y sin problema podran con otros procesadores ms potente, siempre y cuando no quieras hacer overlock.
Easiest motherboard install I’ve had. Like the new SSD port too, have to try that out. I wired it up turned on the PC and it booted right into windows – no errors no problems. Great board
La carte est est conue pour accueillir les processeurs Intel Core sur socket LGA 1700. TOP pour accueillir mon I5 avec lequel elle fonctionne parfaitement. Utiliser sur un setup gaming avec 32 de DDR4 le tout fonctionne trs bien et est stable. Seule bmol qui me fait mettre 4* c’est l’ergonomie du BIOS. Accessible mais compliqu de s’y retrouver car certains menu son cachs et n’apparaissent pas. Il faut positionner la souris un certain endroit pour les faire apparaitre et j’ai mis du temps trouver.
Even though it was way too overkill for my 12100f I couldn’t deny the $110 prime deals price. Installed it just a week ago and so far it’s been smooth sailing ever since. One tip I can give you though is to pre-install all the drivers (Especially the wifi/ethernet) on a usb stick from MSI’s website since I couldn’t use the ethernet without the drivers and had to download the drivers from my laptop and transfer to my PC.
Pros:
– Great heatsinks and VRMs, ready to handle all but the most high-end alder lake CPUs
– Nice and modern look of the motherboard, no gamery colors or unnecessary LEDs for a clean and professional look
– 4 Video output ports on the motherboard (2 HDMI 2 DP) for people who are into that stuff
– Worked with my 12100f with no BIOS updates or any settings needing configuration
– Great price (But not as good as when it was $110 in prime day)
– Takes DDR4 ram, this is a big pro for people on a budget since you don’t need expensive ram but a small con for people with a big budget since DDR5 has very little impact on performance from the benchmarks I’ve seen
– M-ATX size fits almost all cases out there
– Nice and solid M.2 heatsink on one of the slots that works great
Cons:
– No usb-c port on the back. Not necessarily a worry for me but can be a big con for some
– M-ATX size comes with a con of having a lot less of pretty much everything compared to an ATX board from PCI-E ports to fan ports
– The first board I received came with the cpu cover already off and multiple pins on the board bent. Though this is not a fault of the board or the manufacturer and I have received a brand new one after a quick chat with an Amazon employee and returning the faulty one.
Overall I’d recommend this board to anyone from people going for a cheap, low-end build (like me) to people going for a higher end build. Though one thing I heard is that the LGA 1700 socket has a detrimental problem of bending CPUs, the best 2 options I have seen is to either purchase a bending-correction frame from Thermaltake or installing 1mm washers under the socket to lessen the stress on the CPU. I’d consider this before installing your CPU as once you push that lever down your CPU might be bent irreversibly.
Had been using an old MSI laptop and decided it was time to upgrade, chose the b660m-a because of it’s price at the time (prime day) and hindsight I would have paid more for this motherboard, it worked with my i3-12100 right out of the box, was super easy to install everything, very quality motherboard with not much flex, overall MSI crushed it with this motherboard! (Could have done a better job personally on my cable managing)
I think this a board which is very easy to install and bios is easy to figure out and it automatically OC your RAM and remove power limits on CPU.
I think however, it is a bit too expensive yet. I bought it at this price however as it is the only brand that is performing solid in B660 area.
I give it 4* because the the full ATX version of this board gets some USB 3.2 2×2 ports (instead of 2×1 here) and there is no back panel USB C on this board — some cheaper boards have that, so cheaping out here from MSI. Plus, the full ATX board was cheaper than this one. Bummer.
I also don’t find the bios the most intuitive to use, and updating the bios is a bit finicky (need to format USB as FAT32 or it won’t work). And the memory banks are not color coded.
Overall, this is the best value in mATX if you want to use a fast 12th Gen with upgrade potential and without overclocking the CPU. I’m happy with it so far.
Entering bios flashing messes up something and leads to issue with no video output. Clearing CMOS helps.
Have some drivers issue with 12600k, makes sometimes everything stuck for 1 second. Hopefully it is drivers and I will figure it out.
