MSI PRO H610M-B DDR4 Motherboard, Micro-ATX – Supports Intel
MSI PRO H610M-B DDR4 Motherboard, Micro-ATX – Supports Intel 12th Gen Core Processors, LGA 1700 – 2 x DIMMs (3200MHz), 1x PCIe 4.0 x16 slot, 1 x M.2 Gen3, USB 3.2 Gen1, 1G LAN, HDMI 2.1 & VGA
Fortified PCI-e 4.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. Steel Armor also shields the point of contact from electromagnetic interference:
- 1 x PCI-e 4.0 x16 slot (with Steel Armor)
- 1 x PCI-e 3.0 x1 slot
Gen3 M.2 Connector
The PRO H610M-B DDR4 motherboard features an MSI Turbo Gen3 M.2 slot:
- 1 x Gen3 x4 32Gb/s slot
*Supports SATA 6Gb & 2242, 2260, 2280 storage devices
Intel 1G LAN Controller
Intel 1G LAN: An Intel I219-V 1Gbps LAN controller delivers a robust network experience.
USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gb/s.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
4K & Legacy Video Support: Includes HDMI 2.1 (4K/60Hz) and VGA ports for both digital and legacy display.
 |  |  |  | |
|---|---|---|---|---|

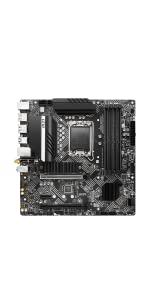

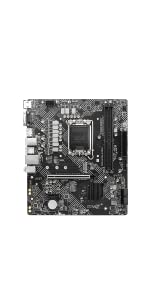

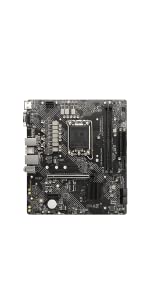

| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX |
| DIMM Slots | 2 x DDR4 (3200MHz) | 2 x DDR4 (3200MHz) | 2 x DDR4 (4600+MHz/OC) | 4 x DDR4 (4800+MHz/OC) |
| PCI-e x16 Slots | 1 x 4.0 | 1 x 4.0 | 1 x 4.0 | 1 x 4.0 / 1 x 3.0 |
| M.2 Slots | 1 x Gen3 x4 | 1 x Gen3 x4 | 1 x Gen3 x4 | 2 x Gen4 x4 |
| M.2 Shield Frozr | Single-Sided | |||
| Audio | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost |
| Video Ports (Requires Processor Graphics) | 4K/60Hz HDMI 2.1 & VGA | 4K/60Hz HDMI 2.1, DP 1.2 & VGA | 4K/60Hz HDMI 2.1 & VGA | 4K/60Hz HDMI 2.1 & DP 1.4 |
| LAN | 1G | 1G | 1G | 2.5G |
| WiFi & Bluetooth | Intel Wi-Fi 6 Module, Bluetooth 5.2 |
| Weight: | 560 g |
| Dimensions: | 24.4 x 22 x 2 cm; 560 Grams |
| Brand: | MSI |
| Model: | 7D46-002R |
| Colour: | Black |
| Batteries Included: | Yes |
| Manufacture: | MSI |
| Dimensions: | 24.4 x 22 x 2 cm; 560 Grams |
