SolaMr 1000W MPPT Wind Solar Hybrid Charge Controller 400W

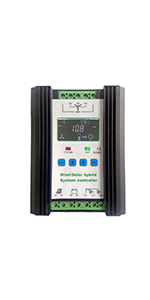

Controller appearance

The product has wiring ports at the upper and lower ends. The upper end is connected to the fan (the terminal of the fan can be selected from two terminals, regardless of positive and negative poles), and the lower end is connected to the battery and solar panel.

Fan unloading conditions (economic option)

1. When the charging current of the fan is greater than 1.2 times of the rated current, the unloading starts;

2. When the battery voltage is greater than the current BCV+0.1V, it starts to unload;

3. When the battery voltage is greater than the current Float+0.1V, it starts to unload;

4. Unloading starts when the fan voltage is greater than the fan unloading voltage;

Controller installation

Install the controller on the equipment platform or cabinet support through the installation hole on both sides of the bottom shell of the controller, and reserve enough ventilation and heat dissipation space around the installation.

Nominal System Voltage	12/24VDC Auto	12/24VDC Auto	12/24VDC Auto	12/24VDC Auto	12/24VDC Auto	12/24VDC Auto
Product Type	MPPT	PWM	MPPT	MPPT	MPPT	MPPT
Max. Input Power	400W / Solar + 600W / Wind	400W / Solar + 600W / Wind	390W (12V)/780W (24V)	520W (12V)/1040W (24V)	650W (12V)/1300W (24V)	780W (12V)/1560W (24V)
Battery Type	Sealed;LiFePO4;LiNiCoMn;Custom	Sealed;LiFePO4;LiNiCoMn;Custom	Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries	Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries	Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries	Lead-acid batteries, lithium iron phosphate batteries, ternary lithium batteries
Wind turbine	✓	✓
