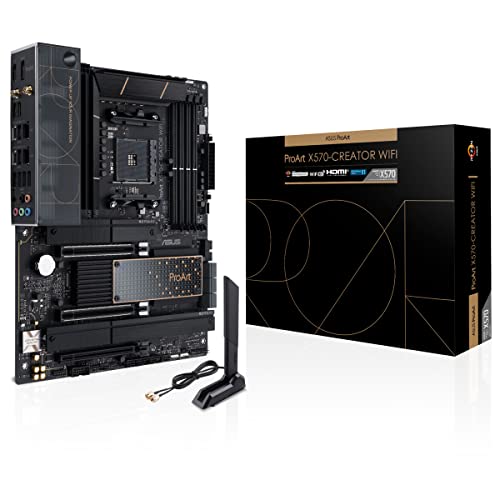

ASUS PROART X570-CREATOR WIFI (Socket AM4/X570/DDR4/S-ATA
ASUS PROART X570-CREATOR WIFI (Socket AM4/X570/DDR4/S-ATA 600/ATX), Black

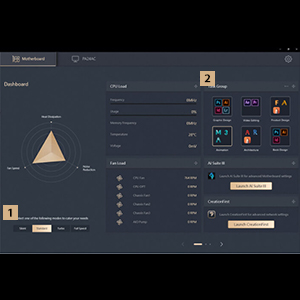

ProArt Creator Hub
An easy-to-use interface provides applications designed to improve work through central control of all connected ProArt series products, including motherboards and displays.
1. Fan mode
Select the fan setting to quickly configure system cooling performance.
2. Task Group
Applications that are often used together can be organized into groups and launched with a single click.
Two-Way AI Noise Cancellation
Since working from home has become the new normal, clear online communication is more important than ever. Two-way noise cancellation AI is an audio utility that leverages a huge deep learning database to reduce the background noise of the microphone and input audio. The annoying keyboard noise, mouse clicks and other ambient noise are intelligently reduced so you can listen and be heard with crystal clear clarity during games or calls

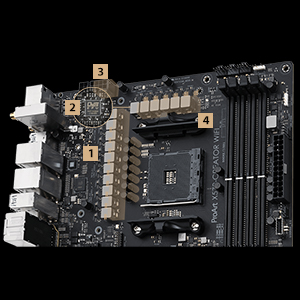

Maximum Stability

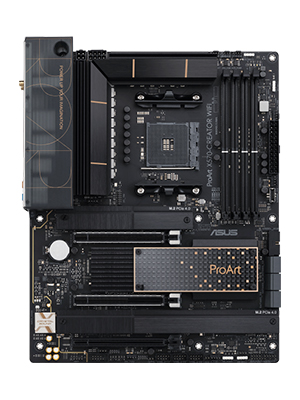

The ProArt X570-Creator WiFi is designed and rigorously tested to deliver superior quality, stability and compatibility while ensuring the strength you need for your creativity over the years to come.
 |  |  |  | |
|---|---|---|---|---|

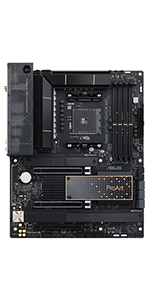

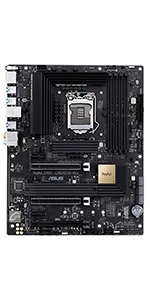

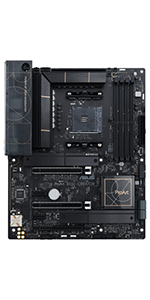

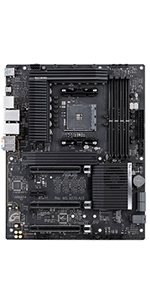

| CPU | AMD Socket AM4 for AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors | AMD Ryzen 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors | AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors Processors |
| Power Design | 14+2 | 12+2 | 12+2 | 12+2 |
| Memory | 4 x DIMM; Max. 128GB DDR4 | 4 x DIMM; Max. 128GB DDR4 | 4 x DIMM; Max. 128GB DDR4 | 4 x DIMM; Max. 128GB DDR4 |
| Graphic output | HDMI 2.1(4K@60Hz) | HDMI 2.1(4K@60Hz) | 1 x DisplayPort 1.4 1 x HDMI 1.4b | 1 x DisplayPort 1.2 1 x HDMI 2.0b |
| Expansion slots | 2 x PCIe 4.0 x16 (@x16 or x8/x8) 1 x PCIe 4.0 x16 (max. @x4) | 2 x PCIe 4.0 x16 (@x16 or x8/x8) 1 x PCIe 3.0 x16 slots (max. @x4) 2 x PCIe 3.0 x1 slots | 2 x PCIe 3.0 x16 (x16 or x8/x8) 1 x PCIe 3.0 x16 (max. @x4) 2 x PCIe 3.0 x1 | 2 x PCIe 4.0 x16 (@x16 or x8/x8) 1 x PCIe 4.0 x16 (max. @x8) |
| SATA 6Gb/s | 6 | 4 | 6 | 4 |
| M.2 | 1 x 22110 (PCIe 4.0 x4 & SATA) 1 x 2280 (PCIe 4.0 x4) 1 x 22110 (PCIe 4.0 x4 & SATA) | 1 x M.2 22110 (PCIe 4.0 x4 & SATA) 1x M.2 22110 (PCIe 3.0 x4 & SATA) | 1 x M.2 22110 (PCIe 3.0 x 4 & SATA) 1 x M.2 22110 (PCIe 3.0 x 4) | 1 x 22110 (SATA & PCIe4.0 x4) 1 x 2280 (PCIe4.0 x2) |

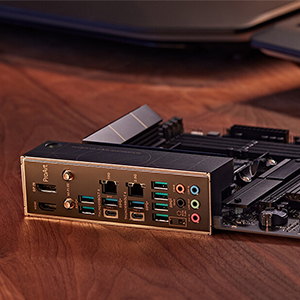

| USB | USB4: 2(2C@B) USB 3.2 Gen 2: 5(1C@F, 4A) USB 3.2 Gen 1: 6(2A@F, 4A@B) USB 2.0: 6(@F) | USB4: 2(2C@B) USB 3.2 GEN 2: 4 (4A@B) USB 3.2 GEN 1: 3 (2A+1C @F) USB 2.0: 6 (2A @B, 4A @F) | USB 3.2 GEN 2: 6 (4A+2C @B) USB 3.2 GEN 1: 5 (3@F, 2A1C; 2@B) USB 2.0: 4 (4@F) | USB 3.2 GEN 2: 5 (4A1C) USB 3.2 GEN 1: 6 (2B4F) USB 2.0: 4(4@F) |
| Wireless | Wi-Fi 6E | N/A | N/A | N/A |
| Ethernet | 10Gb & 2.5Gb | 2 x 2.5Gb Ethernet | 1 x 2.5Gb 1 x HYPER 10G LAN CARD | 2 x 1Gb |
| Weight: | 1.2 kg |
| Dimensions: | 30.5 x 24.5 x 6 cm; 1.2 Kilograms |
| Brand: | Unknown |
| Model: | PROART X570-CREATOR WIFI |
| Colour: | Black |
| Batteries Included: | No |
| Manufacture: | ASUS |
| Dimensions: | 30.5 x 24.5 x 6 cm; 1.2 Kilograms |
still testing, had a couple of issues but realize it was my ram and my PSU that I just replaced, the motherboard still working fine so far, I will come back if faulty, it might be the perfect motherboard if it has some better debugging indicator inside
While slightly older generation board it certainly is great.
Loads of connectivity including the sought after thunderbolt on and AMD system.
Paired it with a 5950x and 64gb ram and it flys!
Carte qui vaut son prix. Au top techniquement.
3 M2 en pcie4, Wifi, bluetooth…
Tous les usb sont en 3.2. Je voulais des connecteurs USB C, j’ai droit des thunderbolt 4.
Vous comprendrez que je suis content de mon achat, malgr le prix un peu lev, mais on n’a rien sans rien.
Bin von einem TUF Gaming X570-Plus umgestiegen, tolle Sache, einfach alle SSDs ins neue board montiert und hat sofort problemlos gebootet. Sauber verarbeitet und viele schnelle Ports. TB 4 ist till, hab aber noch keinen echten use case dafr. Achtung, meine GPU mit Untersttzungsklammer war zu gross um den unteren PCIe Slot zu benutzen. Dadurch blieb ausser der GPU nur ein PCIe Slot frei. Kann fr viele zu wenig sein. Allerdings braucht man bei diesem board keine WiFi Karte, wie bei meinem TUF und kaum zustzliche USB Ports. Ich hab den untersten PCIe Slot fr eine Karte mit 2 normalen USB-c Ports genutzt.
Debian 12 alles wird Untersttzt. T
Tyzen 5950x. Auch 10G LAN nutzbar. Klasse board.
Presa per una configurazione appena fatta. Va benissimo ed stabile ( specialmente con il nuovo aggiornamento del bios. Unica pecca, la scheda un p troppo piccola e quindi spero che alla lunga non abbia problemi a dissipare il calore.
ASUS PROART X570-CREATOR WIFI MOTHERBOARD AMD X570 AM4 ATX PCIE 4.0 PASSIVE PCH COOLING 2X THUNDERBOLT 4 TYPE-C LAN 10GB 2.5GB WLAN 6E 3X M.2 USB 3.2 GEN 2 CREATION CONTENTS
QUICK REVIEW [TL;DR]
GET IT WHILE YOU CAN — LOVE THE ASUS X570 FOR MY AMD 5900X
BACKGROUND: (Why I selected the ASUS PROART X570-CREATOR WIFI)
In April 2021, I snagged a prebuilt OpenBox computer, I’ve been slowly updating it for the past 18 months (RAM, CPU, GPU, NVME, etc), but I kept running into performance problems.
Once I decided it was the MotherBoard that was holding me back, I wanted the best MB I could find that worked with my AMD 5900X CPU and other components without breaking the bank. Increasingly I’ve been using more and more Thunderbolt Connections, so I needed a rare AMD MB that supported Thunderbolt 4.
After a month or so of research I found the ASUS PROART X570-CREATOR WIFI had everything I needed and then some.
Of course, then only to find that it has been discontinued (in the USA) and was not generally available. I decided to try Amazon.DE since many of the boards available on a popular auction site, were coming from Europe or Japan. Bingo, not only was it available, it was a good price.
SETUP:
The documentation was fantastic and very clear. This was especially useful in navigating the complicated BIOS settings with the AM4 CPU’s to allocate PCI lanes between the CPU and Chipset.
Everything was perfectly labeled, there are a ton of included ports USB 3.2 Gen 1, Gen 2, and Gen 2×2 as well as Thunderbolt Ports.
Pay close attention to what cards you plug into what slots as well as NVME drives to make sure all devices are operating at full speed, and all busses and lanes.
The package contained everything needed to attach to your case.
I used the internal SATA RAID controller to RAID up a bunch of 1 TB SATA SSD drives.
The system booted perfectly the first time, then I just needed to install the various drivers.
PERFORMANCE:
Compared to my old AMD 550 Series MB, everything is performing so much faster. All my benchmarks are through the roof. My temperatures are way down, and the data is flowing quickly. With very slight (safe) overclocking my CPU is now benchmarking above 97th percentile.
The included WIFI 6e card lets me use the 6Ghz network with about 20% improvement.
RECOMMENDATION:
I can’t say enough good things about the ASUS PROART X570-CREATOR WIFI MOTHERBOARD. I am so glad I stuck it out and hunted down this motherboard from overseas.
My only regret was not getting one sooner. Previously, I believed all the review sites that said the 550MB was pretty much as good as the 570MB.
Get one while you can.
El hardware que, hasta ahora, he encontrado como compatible son las placas base ASROCK con cabecero thunderbolt y la tarjeta de expansin ASROCK AIC THUNDERBOLT 3.
Actualmente voy con una ASROCK 570 taichi razer edition y la AIC, y me va de maravilla, funciona hasta con los drivers sin instalar (me di error) y solo 3ms de latencia. Con la Phantom Gaming 4S tambin estuve un tiempo, pero no es una placa top que te gestione automaticamente el OC, adems el south bridge sola estar a 75 grados.
Tambin hay una ASROCK 570 CREATOR que trae el puerto incorporado, pero no se si funciona, y vale 600 pavos asi que…
Espero que a alguien le ayude esto, ami me hubiera ahorrado muchisimo calentn de cabeza!
Le rseau en 10gb c’est une tuerie , condition d’avoir un rseau qui suit..
la gestion des leds, water cooling etc. Rien ne manque.
Juste un peu cher..
