Hyundai 196cc Petrol Plate Compactor/Wacker Plate with Wheel
Hyundai 196cc Petrol Plate Compactor/Wacker Plate with Wheel Kit and Paving Pad with 3 Year Warranty
At Hyundai Power Products we pride ourselves on providing a quality product at a very competitive fee, delivered promptly to your door. All repair work which is under guarant is undertaken in-house and we keep a huge stock of spare parts for all Hyundai machines.
As a company, we set ourselves the highest standards possible and our business practices come solely from the notion that we treat others as we would expect to be treated ourselves; with respect, courtesy and in an ethical way.

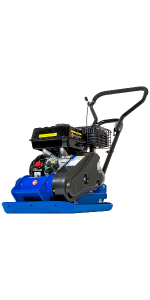

Hyundai 196cc Petrol Plate Compactor / Wacker Plate with Wheel Kit and Paving Pad | HYCP9070
The HYCP9070 is the flagship compactor plate / wacker in the Hyundai Power Equipment range, powered by a 196cc 4-stroke petrol engine and equipped with an extra-large plate measuring 540mm x 420mm (L x W).
- Equipped with a large fuel tank for long running.
- Fitted with a large plate for working effectively on large areas.
- Has a travelling speed of 15m/min, with a compaction depth of 300mm.
- Wheel Kit and Paving Pad included.
- Powered by a 196cc 4-stroke recoil start petrol engine.
| Engine Model Type | Hyundai 4-Stroke |
| Centrifugal Force (N) | 13000 |
| Compaction Depth | 300 |
| Dimensions (H x W x L) (mm) | 940 x 270 x 510 |
| Displacement | 196 |
| Exciter Oil Capacity (ml) | 100 |
| Exciter Speed (RPM) | 5500 |
| Fuel Type | Unleaded Petrol |
| Gross Weight | 86 |
| Noise Rating (dBA) | 91 |
| Plate Size | 540 x 420 |
| Starting Method | Recoil Pull |
| Travel Speed (m/min) | 15 |
| HAV Vibration value m/s2 | 17.42 |
 | | | |
|---|---|---|---|
| Centrifugal Force (N) | 11000 | 8200 | 13000 |
| Compaction Depth | 250 | 200 | 300 |
| Dimensions (H x W x L) (mm) | 1060 x 278 x 522 | 850 x 660 x 1150 | 940 x 270 x 510 |
| Exciter Speed (RPM) | 5500 | 5900 | 5500 |
| Gross Weight | 63 | 53 | 86 |
| Plate Size | 530 x 370 | 495 x 320 | 540 x 420 |
| Travel Speed (m/min) | 25 | 25 | 15 |
| Weight: | 86 kg |
| Dimensions: | 94 x 27 x 51 cm; 86 Kilograms |
| Model: | HYCP9070 |
| Part: | HYCP9070 |
| Colour: | Blue |
| Pack Quantity: | 1 |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | Hyundai |
| Dimensions: | 94 x 27 x 51 cm; 86 Kilograms |
| Quantity: | 1 |
Used it a lot and it’s doing a great job. Good value and very effective machine
I needed to re-profile some ground and place a gravel sub-base to take a concrete slab – did a superb job. The included wheels helps with maneuvering the kit to where it was needed. Machine starts easily. Surprisingly little vibration transferred back to your hands.
This is very good value for money . Compacts very well and the wheel kit makes it very easy to move over any surface .
Easy to assemble, started first time, worked a treat. Beware its heavy
Easy to start and assemble
Handle not so good sometimes folds forward as the catch can flick off
Wacker works well good guarantee and comes with everything you need. Only used once so far but plenty more jobs coming up
We use this product at work, very good service happy with everything
Very good well made and great value for the price
