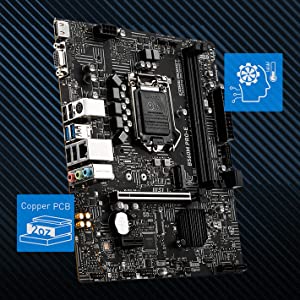

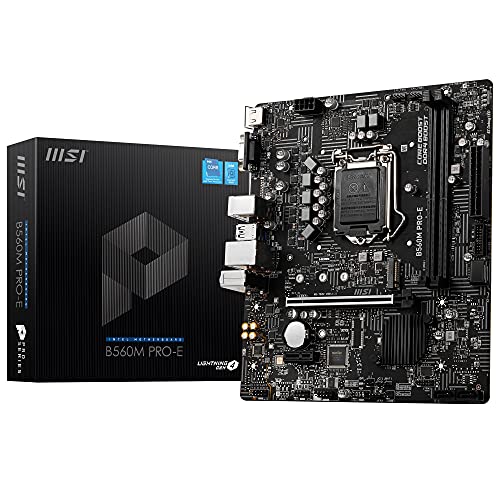

MSI B560M PRO-E Micro-ATX Gaming Motherboard (10 th/11th Gen

Gen3 M.2 Connector

The B560M PRO-E motherboard features an MSI Turbo M.2 slot:

• 1 x Gen3 x4 32Gb/s

*SATA4 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

2 x DDR4 Dual Channel (4800 MHz OC)

DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB checked and can be easily enabled with auto power settings for optimized memory speed and stability.

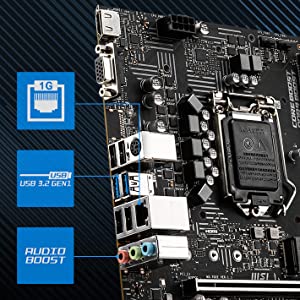

1G LAN Controller

1G LAN: A 1Gbps LAN controller delivers a stable network experience.

USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gb/s.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

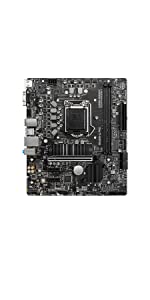

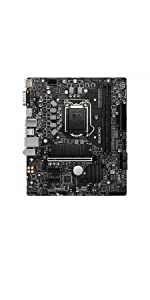

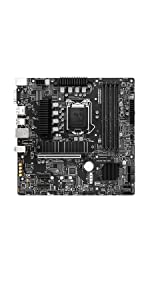

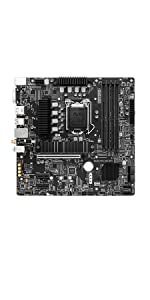

Form Factor	Micro-ATX	Micro-ATX	Micro-ATX	Micro-ATX	Micro-ATX	Micro-ATX
Memory Support	2 x DIMMs (4800MHz OC)	2 x DIMMs (5200MHz OC)	2 x DIMMs (5200MHz OC)	2 x DIMMs (5200MHz OC)	4 x DIMMs (5066MHz OC)	4 x DIMMs (5066MHz OC)
Graphics Card Support	PCI-e 4.0 x16 slot	PCI-e 4.0 x16 slot	PCI-e 4.0 x16 slot	PCI-e 4.0 x16 slot	PCI-e 4.0 x16 slot	PCI-e 4.0 x16 slot
SSD Storage	1 x M.2 Gen3 x4 slot	1 x M.2 Gen3/4 x4 slot with Auto-Switch	1 x M.2 Gen3/4 x4 slot with Auto-Switch	1 x M.2 Gen3/4 x4 slot with Auto-Switch	1 x M.2 Gen3/4 x4 slot with Auto-Switch, 1 x M.2 Gen3 x4 slot	1 x M.2 Gen3/4 x4 slot with Auto-Switch, 1 x M.2 Gen3 x4 slot
M.2 Shield Frozr		Top	Top	Top	Top	Top
Audio	8-Channel (7.1) HD Audio with Audio Boost	8-Channel (7.1) HD Audio with Audio Boost	8-Channel (7.1) HD Audio with Audio Boost	8-Channel (7.1) HD Audio with Audio Boost	8-Channel (7.1) HD Audio with Audio Boost	8-Channel (7.1) HD Audio with Audio Boost
LAN	1G	2.5G	2.5G	2.5G	2.5G	2.5G
WiFi & Bluetooth				Intel WiFi 6 AX201, Bluetooth 5.1		Intel WiFi 6 AX201, Bluetooth 5.1
Video Ports (Requires Processor Graphics)	4K/60Hz HDMI 2.0b	4K/60Hz HDMI 2.0b	4K/60Hz HDMI 2.0b & DP 1.4	4K/60Hz HDMI 2.0b & DP 1.4	4K/60Hz HDMI 2.0b & DP 1.4	4K/60Hz HDMI 2.0b & DP 1.4
