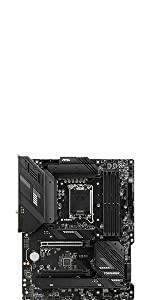

MSI MAG B760 TOMAHAWK WIFI Motherboard, ATX – Supports Intel
MSI MAG B760 TOMAHAWK WIFI Motherboard, ATX – Supports Intel 12th & 13th Gen Core Processors, LGA 1700 – 75A DrMOS VRM, DDR5 Memory Boost 7000+MHz/OC, PCIe 5.0 x16, M.2 Gen4, Wi-Fi 6E
Fortified PCI-e 5.0 x16
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference:
1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**)
1 x PCI-e 3.0 x16 slot*
*Supports x16/x4
**MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen4 M.2 Connectors
The MAG B760 TOMAHAWK WIFI motherboard features MSI’s Gen4 M.2 slots:
3 x Gen4 x4 64Gbps slots*
*3 with M.2 Shield Frozr
M.2 Shield Frozr
Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.
M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.
Wi-Fi 6E & Bluetooth 5.3
2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology.
USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps
HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
 |  |  |  |  |  | |
|---|---|---|---|---|---|---|

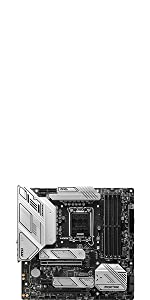

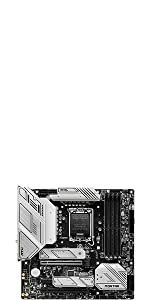

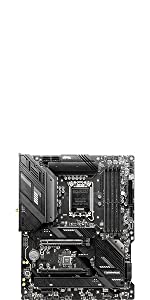

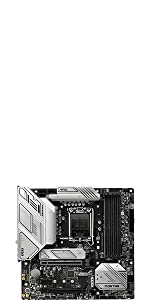

| MSI Gaming Series | MAG | MAG | MAG | MAG | MAG | MAG |
| Form Factor | Micro-ATX | Micro-ATX | Micro-ATX | Micro-ATX | ATX | ATX |
| VRM | 12 Duet Rail Power System / 75A DrMOS | 12 Duet Rail Power System / 75A DrMOS | 12 Duet Rail Power System / 75A DrMOS | 12 Duet Rail Power System / 75A DrMOS | 12 Duet Rail Power System / 75A DrMOS | 12 Duet Rail Power System / 75A DrMOS |
| DIMM Slots | 4 x DDR4 (5333+MHz/OC) | 4 x DDR4 (5333+MHz/OC) | 4 x DDR4 (5333+MHz/OC) | 4 x DDR5 (7000+MHz/OC) | 4 x DDR4 (5333+MHz/OC) | 4 x DDR5 (7000+MHz/OC) |
| PCI-e x16 Slots | 1 x 5.0 / 1 x 4.0 | 1 x 5.0 / 1 x 4.0 | 1 x 5.0 / 1 x 4.0 | 1 x 5.0 / 1 x 4.0 | 1 x 5.0 / 1 x 3.0 | 1 x 5.0 / 1 x 3.0 |
| M.2 Slots | 2 x Gen4 x4 | 2 x Gen4 x4 | 2 x Gen4 x4 | 2 x Gen4 x4 | 3 x Gen4 x4 | 3 x Gen4 x4 |
| M.2 Shield Frozr | Single-sided | Single-sided | Single-sided | Single-sided | Single-sided | Single-sided |
| Audio | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost | 8-Channel (7.1) HD Audio with Audio Boost |
| LAN | Realtek 2.5G LAN | Realtek 2.5G LAN | Realtek 2.5G LAN | Realtek 2.5G LAN | Realtek 2.5G LAN | Realtek 2.5G LAN |
| WiFi & Bluetooth | Intel Wi-Fi 6E module, Bluetooth 5.3 | Intel Wi-Fi 6E module, Bluetooth 5.3 | Intel Wi-Fi 6E module, Bluetooth 5.3 | Intel Wi-Fi 6E module, Bluetooth 5.3 | Intel Wi-Fi 6E module, Bluetooth 5.3 |
| Weight: | 1 kg |
| Dimensions: | 20 x 23 x 2 cm; 1 Kilograms |
| Brand: | MSI |
| Model: | MAG B760 TOMAHAWK WIFI |
| Colour: | Black |
| Batteries Included: | No |
| Manufacture: | MSI COMPUTER |
| Dimensions: | 20 x 23 x 2 cm; 1 Kilograms |
La MSI MAG B760 TOMAHAWK WIFI est une carte mre ATX qui a rpondu toutes mes attentes en matire de performances, de fiabilit et de fonctionnalits, offrant une plateforme solide pour les processeurs Intel Core de 14/13/12e gnration.
La premire caractristique qui a attir mon attention est la conception robuste de la carte. Les composants de haute qualit et la disposition rflchie garantissent une stabilit exceptionnelle, mme dans des conditions d’utilisation intensives. De plus, le design esthtiquement plaisant de la MAG B760 TOMAHAWK donne une touche moderne ma configuration.
Les fonctionnalits de connectivit ne manquent pas, avec la prsence du Wi-Fi intgr, ce qui limine le besoin d’acheter une carte d’extension spare. Les ports USB de dernire gnration, les emplacements PCIe et la prise en charge du PCIe 5.0 offrent une grande flexibilit pour les mises niveau futures.
Le BIOS convivial de MSI facilite la configuration et l’ajustement des paramtres, mme pour ceux qui ne sont pas experts en overclocking. Les amateurs de performances pousses apprcieront galement les options avances disponibles pour tirer le meilleur parti de leur matriel.
La gestion thermique de la carte mre est impressionnante, grce des dissipateurs de chaleur bien conus et une disposition qui favorise la circulation de l’air. Cela garantit un fonctionnement stable mme lors de charges de travail intensives.
Enfin, la MSI MAG B760 TOMAHAWK WIFI offre un excellent rapport qualit-prix. Elle se positionne comme un choix judicieux pour les utilisateurs cherchant construire une configuration fiable et performante autour des processeurs Intel Core de 14/13/12e gnration.
En conclusion, cette carte mre rpond toutes les exigences d’une plateforme moderne, combinant robustesse, fonctionnalits compltes et esthtique soigne. Je la recommande vivement ceux qui recherchent une base solide pour leur configuration base sur les processeurs Intel Core de 14/13/12e gnration.
Excelente motherboard com uma tima relao qualidade-preo e muito bem equipada. At ao momento ainda no me deu quaisquer problemas a trabalhar com um i5-13600KF, 32GB RAM @5600MHz, 2x 2TB M.2 SSD e RTX 4070.
A instalao da MB e atualizao da BIOS foram bastante simples, sendo que s tive algumas questes na gesto dos perfis XMP que por ser a minha primeira build no sabia como selecion-los (ainda que seja super simples e intuitivo depois de perceber).
Recomendo 100%.
Ottimo prodotto, tempi di consegna meglio del previsto. testata con Intel i5 13400F , 32 Gb DDR5, Ottime prestazioni , al momento sono molto soddisfatto, unica pecca manca il manuale e la suite dei driver, ma sono facilmente reperibili.
Bon rapport qualit prix pour cette carte mre de qualit.
Ses multiples ports ainsi que sa compatibilit avec les processeurs INTEL de 12 14e gnration ainsi que les RAM DDR5 en font un choix vident pour les personnes en recherche de performance.
Sa capacit WIFI intgre est galement un plus car cette option reste discrte.
Enfin, le packaging ainsi que les tutoriels fournit sont de qualit et permettent son installation de manire aise.
It works really well and the specs are really good. They deliver and you have a lot of options with it as well. The DDR5 memory is a great feature and the PCI-Express 5.0 is insane as well. You have enough ports for everything as well, you’re probably not gonna get into a problem because you use more than what you have. Great motherboard overall.
Sono passato dalla Z270 alla B760 dopo anni di onorato servizio. Continuer a scegliere MSI per l’affidabilit e la qualit dei loro componenti. Davvero un’ottima mobo con un bel design per un prezzo pi che giusto. Buona anche la compatibilit con la 13a gen di processori Intel. Ho apprezzato che ci siano gli heatsink su entrambi gli slot m.2.
Ich habe lange nach einen Mainboard in dieser Gre mit WIFI und DDR5 gesucht.
Dann haben ich dank einigen Foren das MSI MAG B760M Mortar WIFI gefunden.
Was soll ich sagen, ich bin begeistert. Klasse verarbeitet, sehr schnell und das WIFI funktioniert auch wunderbar.
Eine klare Kaufempfehlung.
En cuanto a caractersticas, el B760M Mortar Wifi es una alternativa para aquellos que quieran actualizarse a los procesadores Intel Core de 13 y 14 generacin o a la memoria DDR5 sin pagar ms por las caractersticas premium que no necesitarn la mayora de las veces. Incluye soporte PCIe 5.0, LAN 2.5GbE y Wi-FI 6E, y conectividad USB 3.2 Gen2x2.
Ha sido la primera placa base que he comprado. Estaba dudando entre la MSI B760 Gaming Plus o esta. Al final por un poco ms dinero, decid coger esta. Funciona bien, al principio tuve problemas para su montaje y pensaba que iba a ser demasiado grande para la caja del pc, pero realmente encaja bien , pude atornillar todos los tornillos, y la grafica encaj perfectamente.
Buon rapporto qualit prezzo, arrivata velocemente, installata e al momento tutto funzionante.
La qualit costruttiva complessiva mi sembra molto buona, i dissipatori di calore M2 sono un bel tocco come la presenza di molte porte USB e il supporto per le RAM DDR5.
Un aspetto negativo che ho riscontrato la mancanza di un manuale cartaceo (s, puoi scaricare grazie al codice QR sulla scatola, ma una piccola guida base la potevano inserire).
I’m really happy of my purchase. Its doing the job I was expecting. But I was kind of nervous when I was saw the packaging. It wasn’t protected and no cardboard closure with any tape. That’s why I removed a star. Apart from this, I recommend the product !
MSI toujours au top ! pour le gaming, c est une pur merveille, ravie de ma carte mre, sobre comme j aime, efficace avec un I5 13600Kf, ddr5… beaucoup de port USB, trs pratique ! le refroidisseur pour le M.2 fourni
Encore merci MSI
PS : dj eu affaire a leur SAV sur un autre pc, son vraiment top !
Molto bella e completa di tante porte, soprattutto la 20Gb type-c anche se non l’ho ancora montata, molto completa e compatta, vorrei fare una domanda a chi gi la usa, dovrei comprare le M2 nvme, quale si possono montare con il dissipatore o senza dissipatore, visto che la scheda madre ha gi lo scudo per dissipare, quale mi consigliate? Grazie
Scheda madre che non ha bisogno di niente e di nessuno. Perfetta in tutto, usb C retro e front con connettore per il case, wifi 6e (antenne incluse), bluetooth, lan 2.5, 2 slot M2 gen 4.0 entrambi, pci express 5.0, uscita hdmi e displayport in caso di processore con grafica integrata. Ho avuto anche la versione b550 (amd), stesso discorso.
Msi con questa serie di schede ha spaccato, la riprenderei altre mille volte per altri mille pc.
In an ITX world that seems to be rapidly filling with oversized heatsinks, annoying tiny fans and feature compromises – this is a breath of fresh air.
Noteworthy Pros:
1) 3 fan headers – 1A, 2A and 3A – Settable in the BIOS to different modes (all PWM capable)
2) On board USB 2, USB 3 and USB C headers
3) Front mounted NVME with heatsink AND rear mounted NVME
4) PCI-E Gen5 Slot
5) Wifi 6E, 2.5 GB Lan
6) Rear 10Gbps USB C and USB A
All the expected ‘standard’ features, such as SATA ports, 5Gbps USB A etc
A great, solid silent running Motherboard.
It is worth spending some time in the BIOS around ‘Lite Load’ once setup, the default ‘Auto’ mode whilst it works and is safe, sends excessive voltage into the CPU. Small adjustments here reduce CPU power consumption and temperatures, whilst improving performance.
Great board. My second MSI board in a row, and judging by this one, my next board will be MSI also.
I’ve recently upgraded my overhaul build from 7th generation Intel to 12th generation. Some vitial features include ddr5 compatibility, bluetooth and wireless capabilities, making it great value for money as these features futureproof the overhaul build. Having 3 nvme slots is also an added bonus, compared to the one slot from my older board.
During the actual “building” process, everything on the motherboard is labled for new builders, the manual makes it very clear on how to proceed each step. There are even YouTube video links on each step.
The only issue I encountered was trying to connect to the internet during Windows 11 setup, had to resort to an ethernet cable. The wireless capibilities worked after installing the correct drivers.
With a great price, I highly recommend
This is the third MSI board that I have purchased over the years. They have plenty of options for adding and connecting things.
Well built. Good looking, if that is important to you.
My only criticism is that there’s no physical manual to tell you what all the sockets and jumpers are for, but that’s the way everyone is going nowadays.
With my last PC build slowly nearing its 10th birthday, and prices slowly coming back to normality, I decided to retire my old workhorse.
Now seems to be a bad time to chose a motherboard as, along with the usual socket changes, both DDR5 and PCIe5 are here to complicate your final decision. After a quick crunch session with the usual YouTube suspects I decided that DDR5 is a must and both overclocking, and PCi5, are a nice have and, thankfully, the Tomahawk B760 WiFi ticks all the boxes with the addition of being more budget friendly.
I have used ASUS pretty much for every PC I’ve built but decided against them due to their recent shenanigans around AM5. So I decided to try my luck with MSi as this board was also inside my budget and, while some have described the design as utilitarian, I didn’t actually want a pile of covers brandished in gaudy typefaces exclaiming ‘GAMING’. Additionally there were quite a few YouTubers exclaiming how competent the Tomahawk board was for the price.
Setup was no different to any other motherboard and layout choices, both good and bad, are more dependent on your final build and PC case. However with so many cases coming with three fans up front it would have been nice to have three fan headers on the right side of the motherboard, number three being at the bottom of the board. Everything else, that I was concerned with, was in the right place.
For the final build I took a gamble and went with all MSi components including PSU and AIO. As my last build was white I had decided that this time I wanted ‘stealth’ black and the MSI components seems less OTT aesthetically than some other motherboards.
Click Bios is OK and I managed to get everything setup, including getting the DDR5 of the stock JEDEC profile, and has a nice blend of the ‘modern’ and traditional menus. There also seems to be plenty of OC options but, considering the machine benchmarks so high on PC Mark (13600k, 32GB DDR5 6000, 990 Pro M.2) I have no need to OC for now.
All in all a good, ‘low’ priced motherboard which should last longer than most considering 13gen Intel support, DDR5 and PCIe5 come as standard with overclocking capability. This board had everything I needed and I as happy as you can be with a motherboard.
The only down sides I have found is a lack of any paper manual (yes, you can download from the QR code
but a tech sheet, with pin outs and header locations, would be nice for the initial build), the WiFi antennas that foul on the rear panel cables and Mystic Light software being a bit subpar compared to the competitio
I got this Motherboard for my first build and I honestly think it’s a great pick for me. I’ve recently started my first build using this board and I can’t deny how easy it is to locate where everything is meant to be placed (System fans connectors, Pump, power cables, restart cables).
Everything on the motherboard is labled for new builders, making it easier for people like ‘me’ to understand what connector belongs where without having to get up and reread the manual or search the MSI website.
I was upgrading my PC kit for Windows 11 and originally purchased a mini atx ASRock board but noticed that it had missing headers for my new cheap case.
Another board I wanted was out of stock, this was about 50% more expensive than the ASRock board but it had extra PCIEx16 slots, extra RAM slots, on board Wifi6, 2.5Gb LAN.
The ASRock had a better bios screen navigation and bios flashing process but this was good too and overall it seems pretty good.
Sulla scheda niente da dire, ma sulla spedizione si, mi arrivata soltanto nella sua scatola, senza nessun tipo di imballaggio, inoltre la scatola era ammaccata su un angolo e di conseguenza la parte in alto a sinistra della scheda stata danneggiata
per fortuna oltre al danno estetico, non sono state intaccate le componenti elettroniche, quindi non ci sono problemi al livello prestazionale.
Rimane imbarazzante l’imballaggio per un prodotto che ha comunque un certo prezzo.
A great piece of kit that easily allows you to upgrade and update your rig. Easy bios to overclock your system if you wish. Lots of expansion ports and the inclusion of 2 M2 slots and WiFi make it a future proofed piece of kit – and a great price – highly recommended
Update 25.06.2023 BIOS “7E01vM3”
The Mainboard “MSI MAG MortarB760M Wifi DDR4” feels qualitywise good and it seems durable.
“Pros”:
– It is generally well-built with lots of passive heatsinks.
– It has a lot of IO.
– It has Wifi 6E.
– It has USB-C (Backport and front connector).
– It has a nice IO Panel already build in.
– It has, built-in, HDMI, and Displayport.
– It has built-in Bluetooth.
– It has a strong PCIE 16x gen 5 Slot.
– It has 2xM.2 NVME slots and an “easy mount thing”.
– It has no RGB.
– luckily this Mainboard doesn’t has a “Mainboard-Chipset-fan”.
-luckily this Mainboard doesn’t have any M.2 fans, but rather “just” a non-breaking non-energy-wasting heat sink.
-BIOS v3 fixed Display port BIOS problems “At least it feels like it”.
“Cons”:
– USB Devices keep disconnecting, or when on startup (Login screen in Windows) don’t even register for about 20 seconds after booting into windows, not even keyboard or mouse.
– When in OS USB Devices (External USB-Drive) disconnects sometimes when in use (it doesn’t happen on other PCs)
past fixed cons:
-Now Working: BIOS Access only through HDMI, Displayport doesn’t work there.
Things I would love to see:
– Structural Metal Backplate, or frame, so the PCB back would be more protected and structurally stable.
– One additional M.2 NVME slot on the back (3 would be nice).
Ich hab mir das MSI b760 ddr4 tomahawk wifi geholt weil es mir optisch und preislich gut gefallen hat. Ich hatte davor das z690 Aorus elite und hatte nur Probleme damit.
Das msi Board hat sich leicht einrichten lassen und hat meine restlichen sachen direkt erkannt. Bin sehr sehr zufrieden.
Das msi Board kann ich jedem nur empfehlen der ein gnstiges jedoch sehr stabiles Mainboard haben mchte.
Carte mre avec un rapport qualit/prix excellent. On peut toujours faire mieux au niveau des caractristiques et des diffrents ports, mais pour un pc milieu de gamme, vous avez les connectiques, les performances et la wifi intgre.
Pour le montage : trs facile, pas eu de soucis particulier et niveau visuel le rendu est de qualit
Sur des grosses configs, je ne recommande videmment pas cette carte mre mais elle fera largement l’affaire pour la majorit des personnes
I use it already for month and i dont have any questions about this motherboard
Aucun soucis montage simple et rapide et dmarrage du premier coup avec mon I5 13600KF au top comme tjs avec MSI.
War eine Fehlbestellung. Habe es ausgepackt und angeschaut ist echt hochwertig verarbeitet! Habe es aber zurckgeschickt weil ich ein normales ATX Board wollte!
Bought this to build my first pc in 15 years. it looks great and was super simple to set up. Three m.2 ports is a great plus along with ddr5 and wifi 6 this motherboard has everything i need for a good few years of gaming ahead.
Lieferung war pnktlich und gut verpackt. Super einfach zum montieren, alles dabei was man braucht und sieht gut aus. Klasse teil
Carte bien conue et complte, avec beaucoup de fonctionnalits / mode facile prendre en main.
s bonne carte
les tempratures sont bonne
les VRM bien refroidies
monter avec un i5 13500 et un Cooler Master MasterLiquid ML360 Illusion
idle : 27 degrs ingame : 55 degrs
In realt dopo numerosi acquisti MSI non mi delude facilmente: con questa, come per per la precedente, ho avuto molti problemi di compatibilit con altri componenti. Preferendo sostituire gli altri componenti, in questo caso una powercolor RX6600, sostituita poi con una MSI RX6650XT. Apparentemente, dopo qualche giorno di utilizzo, problema risolto. La scheda appare di buona qualit ed arriva con l’usuale scatola di cartone e alcuni simpatici stikers. La critica che mi sentirei di fare relativa all’assenza di un dissipatore sul secondo modulo M2, problema irrilevante se non si usa, e l’assenza di un pulsante di reset sul pannello posteriore, come in altre schede, che mi avrebbe evitato di aprire il case, velocizzando i numerosi e noiosi tentativi di installazione. A “battaglia” finita, concluderei con: Consigliato.
Very high quality motherboard and very heavy with decent heatsinks and 8+1 90A power phases.
XMP profile is flawless with g skill 3600mhz trident z rgb ram.
Running a 9400f boosting to 4.5 ghz
M.2 temps are very good and generally have no complaints
