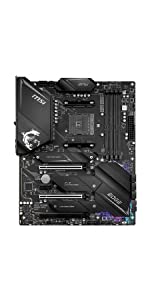

MSI MPG X570S EDGE MAX WIFI Motherboard ATX – Supports AMD

Gen4 M.2 Connectors

The MPG X570S EDGE MAX WIFI motherboard features MSI’s latest M.2 slots:

• 3 x Gen4 x4 64Gb/s slots*

*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

4 x DDR4 Dual Channel (5300+ MHz OC)

DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.

A-XMP profiles in MSI BIOS are MSI OC LAB assigned and can be easily enabled with auto power settings for optimized memory speed and stability.

Wi-Fi 6E & Bluetooth 5.2

Wi-Fi 6E: The latest Wi-Fi 6E solution supports 6GHz spectrum, while Bluetooth 5.2 offers data transfer speeds up to 2400Mbps.

2.5G LAN: A Realtek 8125B 2.5Gbps LAN controller delivers a premium network gaming experience.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

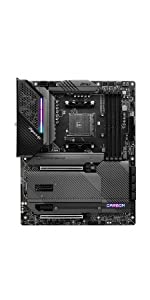

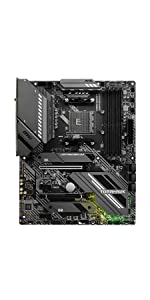

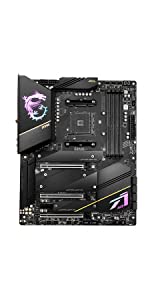

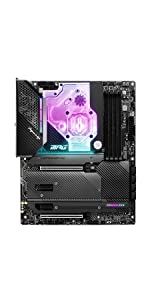

MSI Gaming Series	MAG	MPG	MPG	MPG	MEG	MEG
Form Factor	ATX	ATX	ATX	ATX	ATX	ATX
VRM	12 Mirrored Power Arrangement	12 Duet Rail Power System, 75A SPS	14 Duet Rail Power System, 75A SPS	14 Duet Rail Power System, 75A SPS	16+2 Direct Power Solution, 90A SPS	16+2 Direct Power Solution, 90A SPS
DIMM Slots	4 (5100MHz OC)	4 (5300+MHz OC)	4 (5300+MHz OC)	4 (5300+MHz OC)	2 (5800MHz OC)	4 (5300+MHz OC)
PCI-e x16 Slots	4.0 x 2	4.0 x 2 / 3.0 x 1	4.0 x 2	4.0 x 2	4.0 x 2	4.0 x 3
M.2 Slots	4.0 x 2	4.0 x 3	4.0 x 4	4.0 x 4	4.0 x 6	4.0 x 4* (4.0 x 6 via XPANDER-Z)
M.2 Shield Frozr	Top	Top	Top	Top	Top	Double-Sided
Audio	8-Channel (7.1) HD Audio with Audio Boost 5	8-Channel (7.1) HD Audio with Audio Boost 5	8-Channel (7.1) HD Audio with Audio Boost 5	8-Channel (7.1) HD Audio with Audio Boost 5	8-Channel (7.1) HD Audio with Audio Boost 5	8-Channel (7.1) HD Audio with Audio Boost 5 HD
LAN	Realtek 8125B 2.5G LAN	Realtek 8125B 2.5G LAN	Realtek 8125B 2.5G LAN	Realtek 8125B 2.5G LAN	Realtek 8125B 2.5G LAN	Realtek 8125B 2.5G LAN
WiFi & Bluetooth	Intel Wi-Fi 6E AX210, Bluetooth 5.2	Intel Wi-Fi 6E AX210, Bluetooth 5.2	Intel Wi-Fi 6E AX210, Bluetooth 5.2	Intel Wi-Fi 6E AX210, Bluetooth 5.2		Intel Wi-Fi 6E AX210, Bluetooth 5.2
