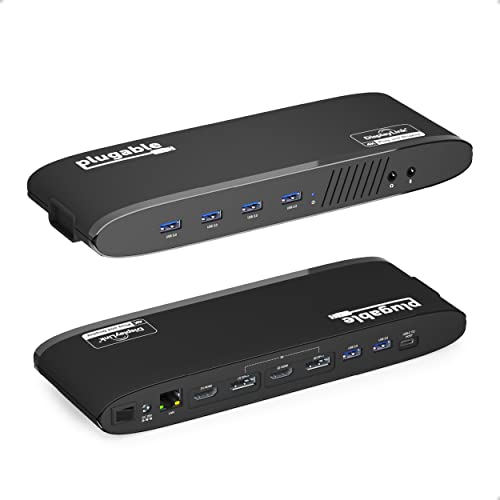

Plugable Universal Laptop Docking Station, 4K Dual Monitor

Plugable Universal Laptop Docking Station

Plugable Universal Laptop Docking Station, 4K Dual Monitor, DisplayPort or HDMI, Windows Mac or ChromeOS Laptops, USB-C or USB 3.0, Adds 2 Displays, Ethernet, Audio, 6 USB Ports


UD-6950H-EUAUD-6950H-EUAUD-6950H-EUA

Compatibility

Laptop Compatibility Compatible with most laptops and desktops running Windows 11/10/8.x/7, Macs with 10.14+, and ChromeOS version 100.x or later. The box includes a USB 3.0 and USB-C cable to connect to the dock to your laptop.
Not Compatible Not compatible with: Linux/Unix; or ARM-based Windows operating systems (such as Surface RT).
Monitor Compatibility Supports two high-resolution monitors up to 4K 60Hz (3840×2160 @ 60Hz) when connected to displays that support the desired resolution. While backwards compatible it is important to note:, • DisplayPort 1.2 monitors can support upto 4K 60Hz, • DisplayPort 1.1 monitors can support upto 4K 30Hz,• HDMI 2.0 displays can support up to 4K 60Hz, • HDMI 1.4 displays can support upto 4K 30Hz
Software Compatibility DisplayLink is a flexible and versatile technology that’s great for most users’ workflow. But there are a few scenarios where it’s not the right fit such as gaming and HDCP (copy-protected) content playback from Blu-ray/Netflix/Prime/iTunes/Hulu/etc.
Power and Charging This laptop docking station does not provide power to the connected laptop or tablet—the laptop will still require a separate charger. The power button on the back of the dock is used to control the power to the docking station itself. It cannot control the power of the laptop.

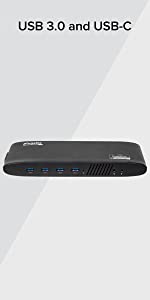

UD-6950H USB 3.0 Horizontal 4K Docking StationUD-6950 USB 3.0 Dual 4K DisplayPort Docking StationUD-3900H Horizontal Docking StationUD-3900 USB 3.0 Universal Laptop Docking Station
# of Displays 2 2 2 2

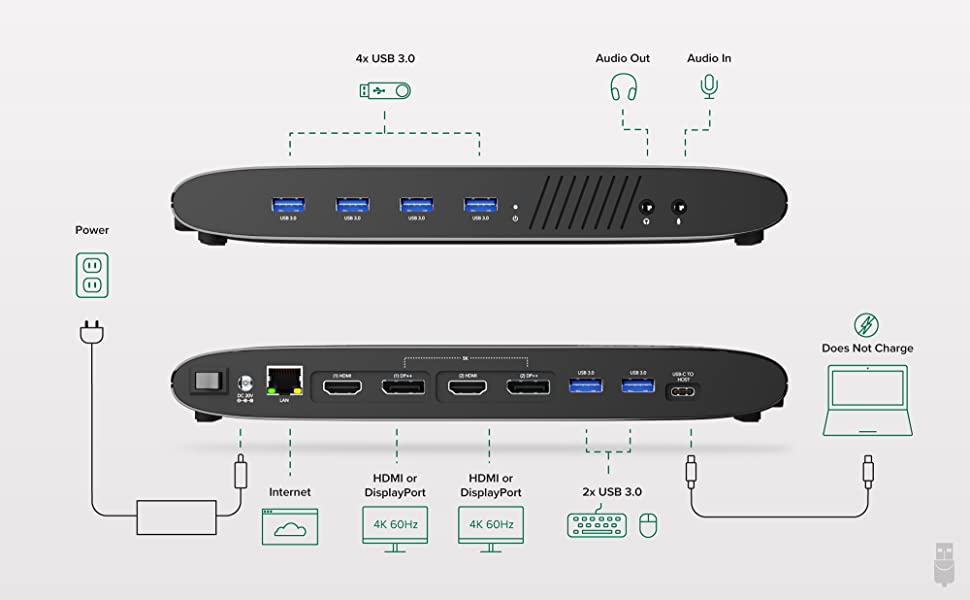

Video Ports 2x HDMI 2.0, 2x DisplayPort 1.2 2x DisplayPort++ 1.2 1x HDMI 1.4, 1x DVI 1x HDMI 1.4, 1x DVI
Max Resolutions Supported 2x 4K 60Hz 2x 4K 60Hz 2x 1920×1200 @ 60Hz 2x 1920×1200 @ 60Hz
# of USB Ports 6 6 6 6
USB Port Specifications All USB 3.0 All USB 3.0 2x USB 3.0, 4x USB 2.0 2x USB 3.0 front, 4x USB 2.0 rear
Laptop Charging No No No No
Laptop Connection USB 3.0 and USB-C USB 3.0 and USB-C USB 3.0 and USB-C USB 3.0


Dimensions: 28.5 x 17.6 x 5.8 cm; 850 Grams
Model: UD-6950H-EUA
Manufacture: Plugable
Dimensions: 28.5 x 17.6 x 5.8 cm; 850 Grams
