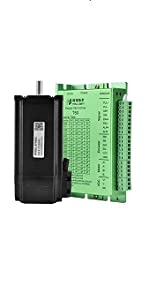

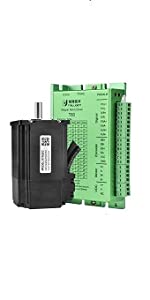

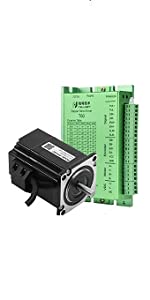

RTELLIGENT Nema 23 Stepper Motor Closed Loop and Driver Kit

Nema 23 Closed Loop Stepper Servo Motor and Driver Kit 1.0NM 3.5A

• Our RTELLIGENT EC/ED series stepper servo motor is designed based on the Cz optimized magnetic circuit and adopts stator and rotator materials of high magnetic density, featuring high energy efficiency.
• Main Features of Closed Loop Stepper Motor:
• A built-in high-resolution encoder
• Light size design, reducing the motor installation space
• Optional brake, and the matched Z axis moves

Electrical Specifications of Step Motor:

Package Contents:

• 1 x 57A1EC/57A1ED stepper servo motor with 30cm cable
• 1 x T60 Nema 23 Stepper Motor Driver
• 1 x Encoder extension cable
• 2 x User Manual

Other: If you need detailed user manuals and debugging software, please let us know.

Warning: Make sure the motor is connected to a constant current or chopper drive controller before testing. Connecting the motor directly to a power supply will destroy it.

Noted:

If you encounter technical problems about our product, please feel free to ask us (if we do not reply, it means that we have not received your information). Please send again or ask Amazon directly. Thanks for your support!

Holding Torque	1.0NM	2.0NM	3.0NM
Rated Current	3.5A	4.0A	4.0A
Motor Size	57x57x73mm	57x57x97mm	57x57x119mm
