Cooler Master Hyper 212 RGB Black Ed.

CPU Air Cooling System with LGA1700 Bracket

With its sleek black design, from its brushed, anodised aluminium finish to its nickel plated fins, the Hyper 212 RGB Black Edition CPU Air Cooling System with LGA1700 includes features that maximise cooling while reducing noise. The RGB fan adds colour and lighting effects to the all-black design.

1.

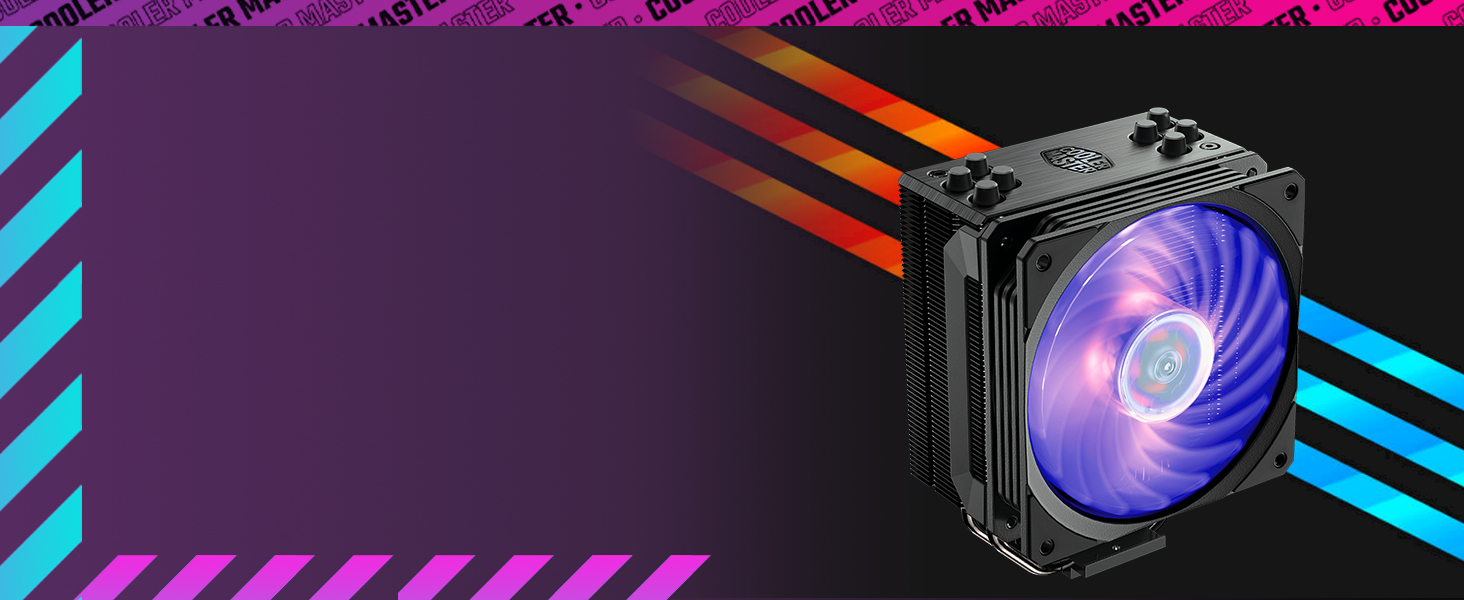

   Aesthetics & Performance

   RGB Sync

   Integrated RGB lighting & enhanced heatsink upgrades equal outstanding aesthetics & performance.

2.

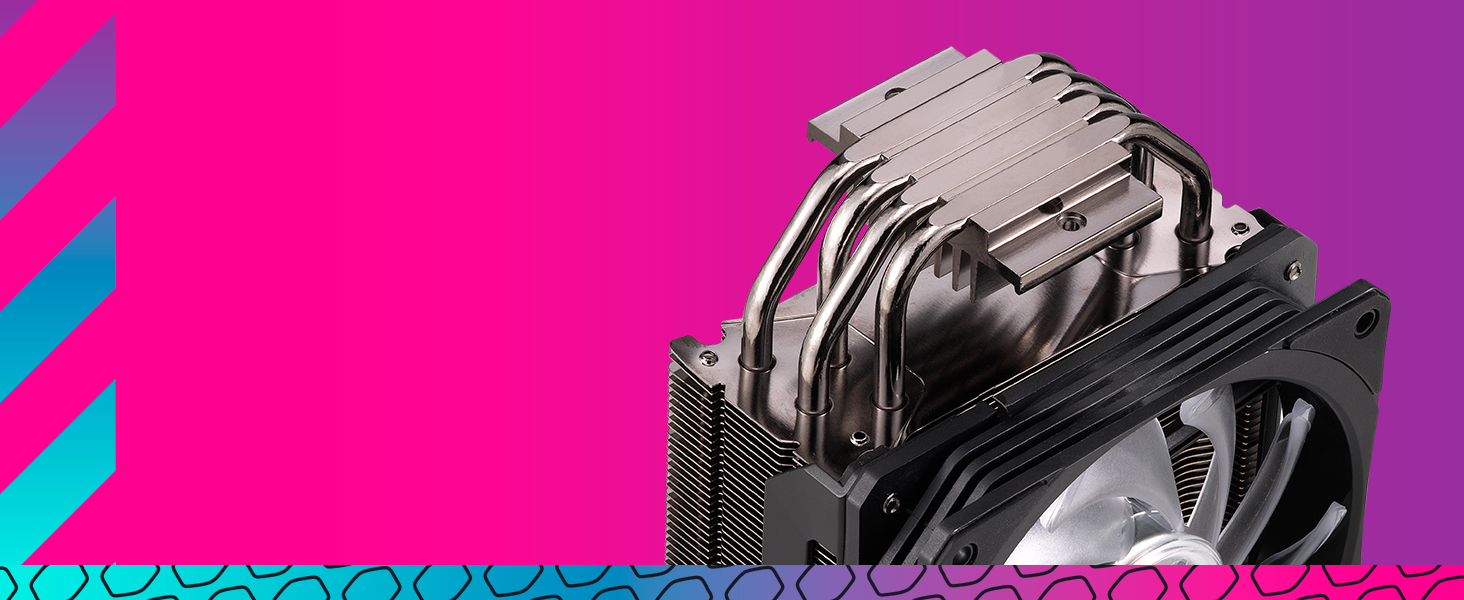

   Direct Contact Technology

   Optimal Heat Dissipation

   Utilises 4 copper heat pipes with a flush contact surface area for optimal heat dissipation.

3.

   Precise Airflow

   Nickel-Plated Heatsink

   A stacked fin array reduces airflow resistance, allowing more cool air to pass through the heatsink.

4.

   Optional Push-Pull System

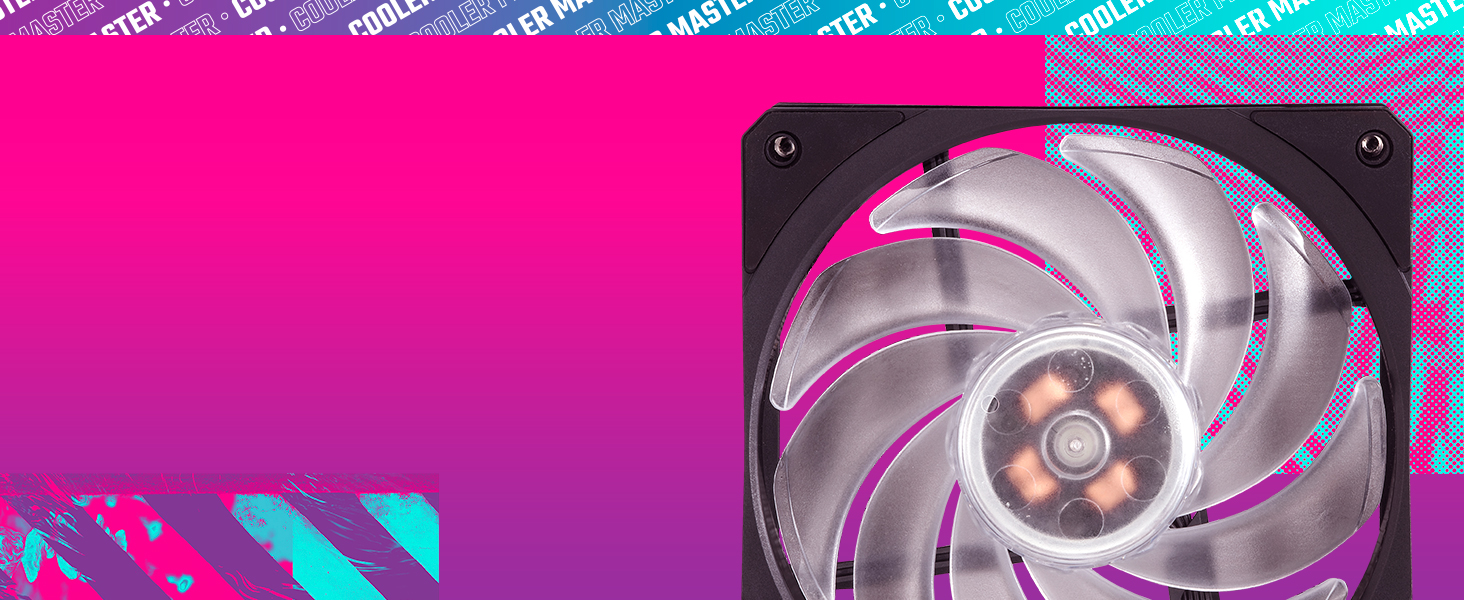

   SF120R RGB Fan

   Synchronises with motherboard or configures with included controller; can support a secondary fan.

5.

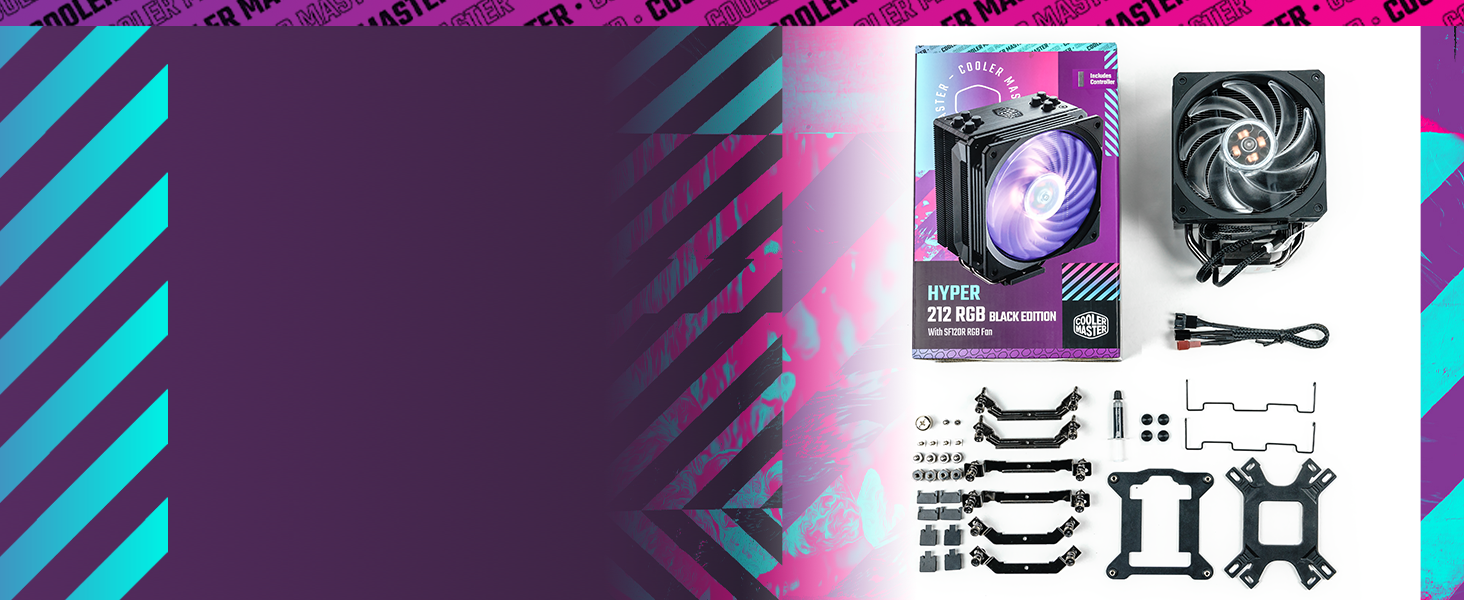

   Includes LGA1700 Bracket

   AMD & Intel Compatible

   Includes versatile all-in-one mounting brackets that support Intel & AMD sockets.

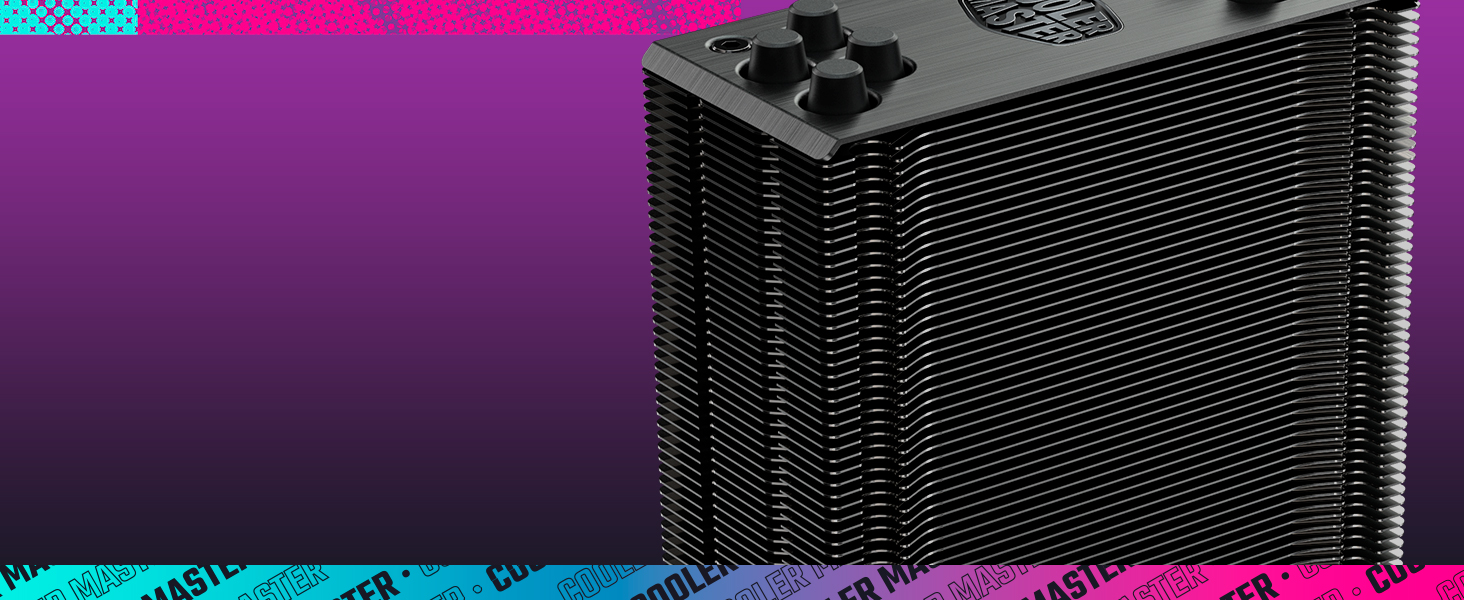

Nickel-Plated Black Heatsink

Offers superior heat radiation while providing a sleek aesthetic; stacked fin array ensures minimal air resistance.

” data-position=”triggerHorizontal” />Manual or Synchronised Control

The SF120R RGB Fan synchronises with existing motherboard architecture or can be configured with the included manual controller.

” data-position=”triggerHorizontal” />

Universal CPU Socket Compatibility

Fan Specifications

Dimensions (L x W x H)	120 x 120 x 25 mm (4.7 x 4.7 x 1 inch)
Quantity (pcs)	1 x SF120R RGB Fan
Speed (RPM)	650 ~ 2000 RPM ± 10%
Airflow (CFM)	59 CFM (Max)
Noise Level (dBA)	8 ~ 30 dB(A)
Pressure (mmH2O)	2.1 mmH2O

MTTF	>160,000 hours
Power Connector	4-Pin (PWM)
Rated Voltage (VDC)	12 VDC
Rated Current (A)	0.16 A
Safety Current (A)	0.37 A
Power Consumption (W)	1.92 W

Hyper 212 CPU Air Coolers

	Hyper 212 RGB Black Ed.	Hyper 212 Black Edition	Hyper 212 EVO V2	Hyper 212 LED Turbo ARGB
Exterior Colour	Black	Black	Silver	Silver & Black
Dimensions (L x H x W)	120 x 79.6 x 158.8 mm	123 x 77 x 158.8 mm	120 x 80 x 154 mm	120 x 110 x 159 mm
Fan Dimensions (L x W x H)	120 x 120 x 25 mm	120 x 120 x 25 mm	120 x 120 x 25 mm	120 x 120 x 25 mm
Heatsink Material	4 Heat Pipes / Aluminium Fins	4 Heat Pipes / Aluminium Fins	4 Heat Pipes / Aluminium Fins	4 Heat Pipes / Aluminium Fins
Direct Contact Technology	✔	✔	✔	✔
LGA1700 Bracket	✔	✔	✔	✘
Lighting	RGB	(none)	(none)	ARGB
Push-Pull Configuration	Optional	Optional	Optional	Yes
