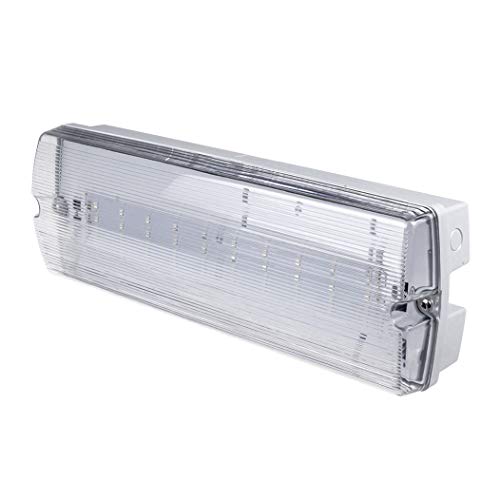

G.W.S® 3W LED Emergency Bulkhead Fitting Maintained

Step 1

Unscrew from the back of the fixture.

Step 2

Push the buckle to open.

Step 3

Connect L and N to building utility. If using maintained working mode, keep L and SL jumper connected. If using non-maintained working mode, disconnect L and SL and dispose the jumper.

Step 4

Connect the battery to connector on the PCBA. Assemble the fixture back together. Restore power and cut off again. LED will work with backup battery on emergency mode. Restore power to complete the installation.

Wattage	3W	24W	2W	2W	3W	–
Battery	3.6V Nickel Cadmium	7.4V 2200mAh	3.2V 600mAh LiFePO4	3.6V 1800mAh	6.4V 1500mAh for 3W 3hrs	6.4V 3000mAh LiFePO4
IP Rating	IP65	IP44	IP20	IP20	IP20	IP20
Emergency Duration	≥3 Hours	≥3 Hours	≥3 Hours	≥3 Hours	≥3 Hours	≥3 Hours
