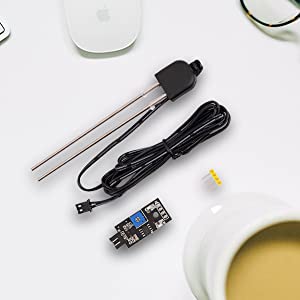

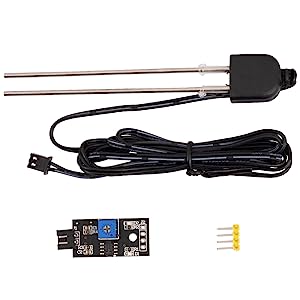

AZDelivery 3 x Soil Moisture Sensor, Humidity Detector
AZDelivery 3 x Soil Moisture Sensor, Humidity Detector and Plant Moisture Meter with Corrosion Resistant Probe for Automatic Watering System Compatible with Arduino and Raspbery Pi
Specifications:
- Working Voltage: DC 3.3-12V
- Working Current: <20ma
- Output Current: <30ma
- I/O: + – DO AO
- Dimension: 36×15×7 mm
- Package Included:
- 1 x Soil Moisture Detector Module
Instruction:
- “+” connects power positive; “-” goes negative. Don’t connect reversely, or the chip will be burnt out.
- There is a LED power indicator at the P mark on the board. It will be light if the module operates normally.
- Clockwise/counter-clockwise rotate the blue potentiometer to increase/reduce the detection threshold.
- If you clockwise rotate the potentiometer to an extent that the LED indicator which is marked “S” is light, that means the testing threshold has been surpassed.
Technical Details
| Working Voltage: | DC 3.3-12V |
| Working Current: | <20mA (Output Current: <30mA) |
| Board Size: | 36×15×6 mm/1.42×0.59×0.23 inch (L×W×H) |
| Sensor Probe Length: | 8.8 cm/3.46 inch |
| Sensor Pin Pitch: | 5 mm |
| Sensor Cable Length: | 1.2 meters /3.94ft |
| Sensor Connecting Port: | XH2.54 2P |
| DO Port: | digital value output (DO output current is about 10mA) |
| AO Port: | analog value output |
Further product details
| ||
|---|---|---|
Exciting DIY projectsYou can find many craft projects in our blogs on the topics of programming and microelectronics. Every week, we present you with new DIY ideas and product applications. | Support from our expertsFind all technical details about these products in our e-books and blog posts. If you have any further questions, please do not hesitate to contact our tech support at your disposal. | Fast and safe shippingBecause client satisfaction and trust are our top priority, we always offer fast, safe, and reliable delivery with the highest quality standards. |
| Weight: | 80 g |
| Dimensions: | 14.8 x 9.8 x 2.6 cm; 80 Grams |
| Part: | 3X Nachfolgeprodukt |
| Batteries Required: | No |
| Batteries Included: | No |
| Manufacture: | AZDelivery |
| Dimensions: | 14.8 x 9.8 x 2.6 cm; 80 Grams |
| Reference: | 3X Nachfolgeprodukt |
Nutze den Sensor seit einiger Zeit fr mein Arduino-Projekt automatische Pflanzenbewsserung” und bin sehr zufrieden.
Von billigeren Sensoren rate ich ab, die zersetzen sich nach wenigen Tagen. Dieser Sensor ist langlebig und przise.
Hasta ahora usaba los tpicos “planos” y cada 3-6 meses tenia que cambiarlos por que se corroen… estos al tener el micro a parte + ir bien sellados + el material de las sondas, lo hacen muchsimo mas duradero, despus de 4 meses de uso no tienen ningn signo de desgaste ni parece que lo vayan a tener, no como los otros que en 4 das ya ves que… mec
Semble assez prcis et rapide, aprs avoir talonn avec ESPEASY hberg sur un ESP32, pilote l’arrosage de ma serre, o, verra en fin d’t si tout c’est bien pass et la durabilit des lectrodes …
