1.

   This unit runs on stable Linux operating system. It’s created for a smooth experience with no lag.

2.

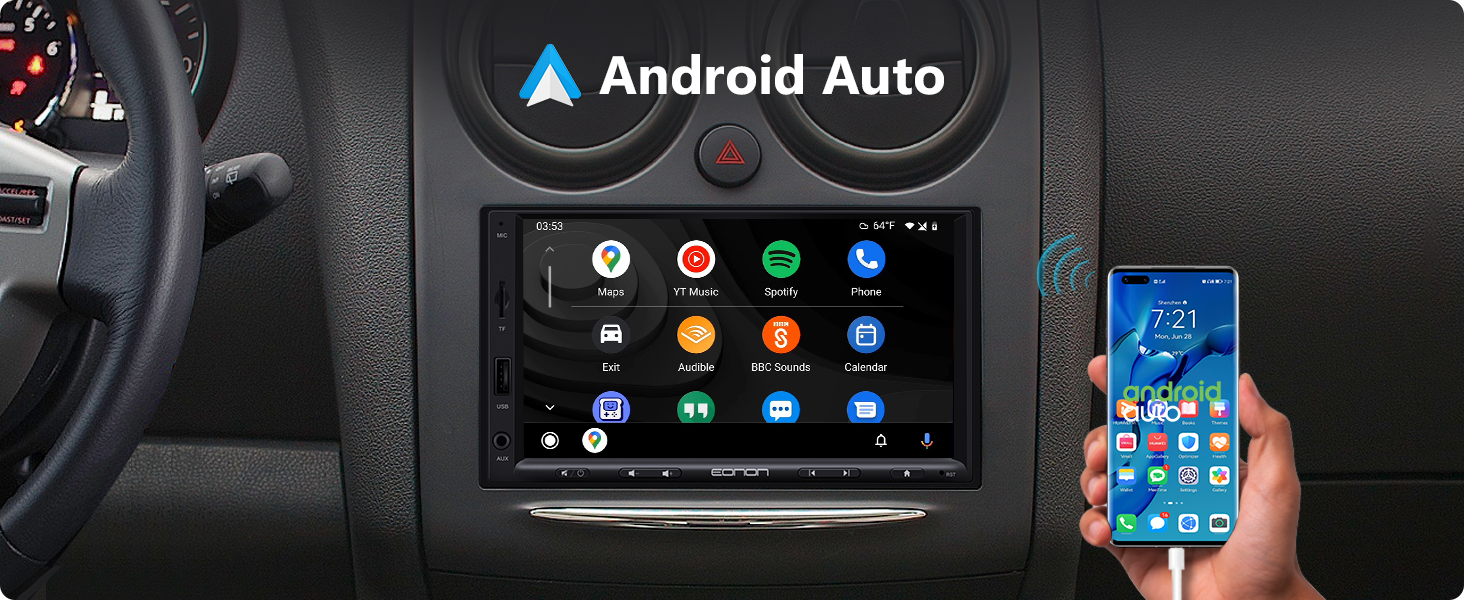

   Wireless & Wired connection. Make sure that your phone supports Google services & Android Auto.

3.

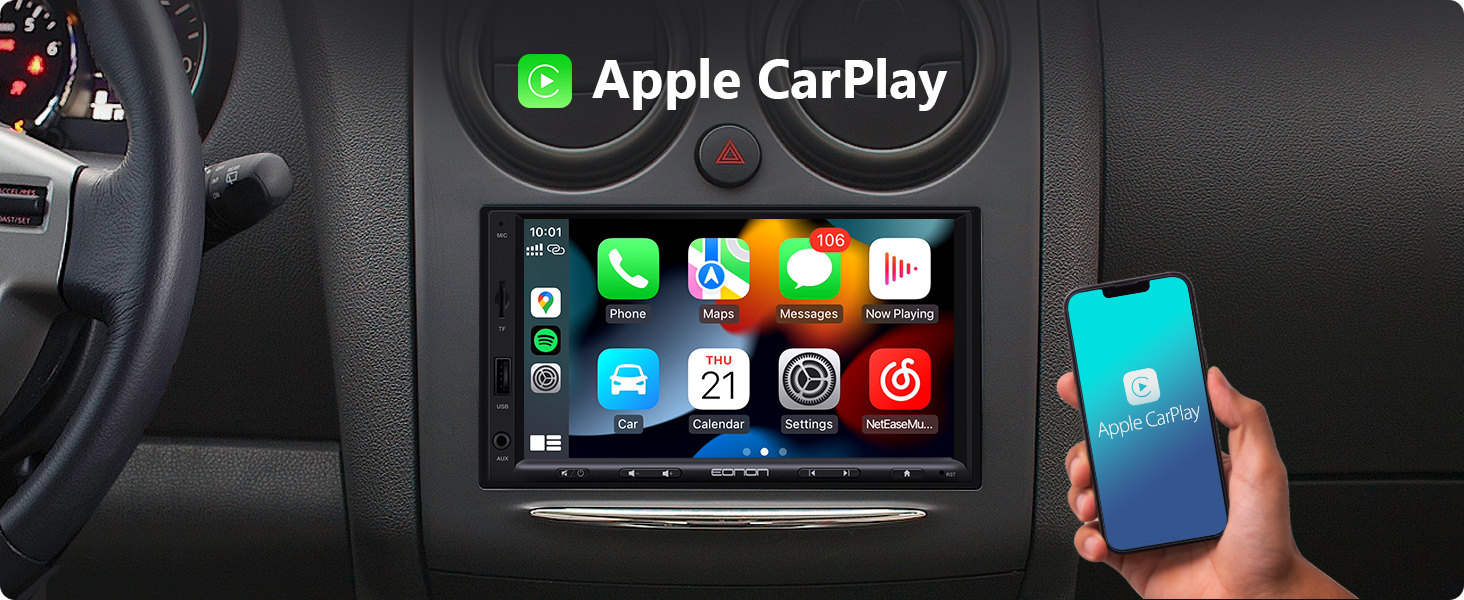

   Support wireless & wired connection. Compatible with iPhone 5 and later.

4.

   Clearly show you the parking trajectory on the display while reversing.

5.

Input/Output

Radio antenna input *1; USB charging port *1;

USB data port *1; External microphone input *1

RCAM IN backup camera video input *1; FCAM IN front camera video input *1 VIDEO IN video input *1; AUX audio input *1

RCA audio input *2, RCA audio output *2

Subwoofer output *1; RCA video output *2

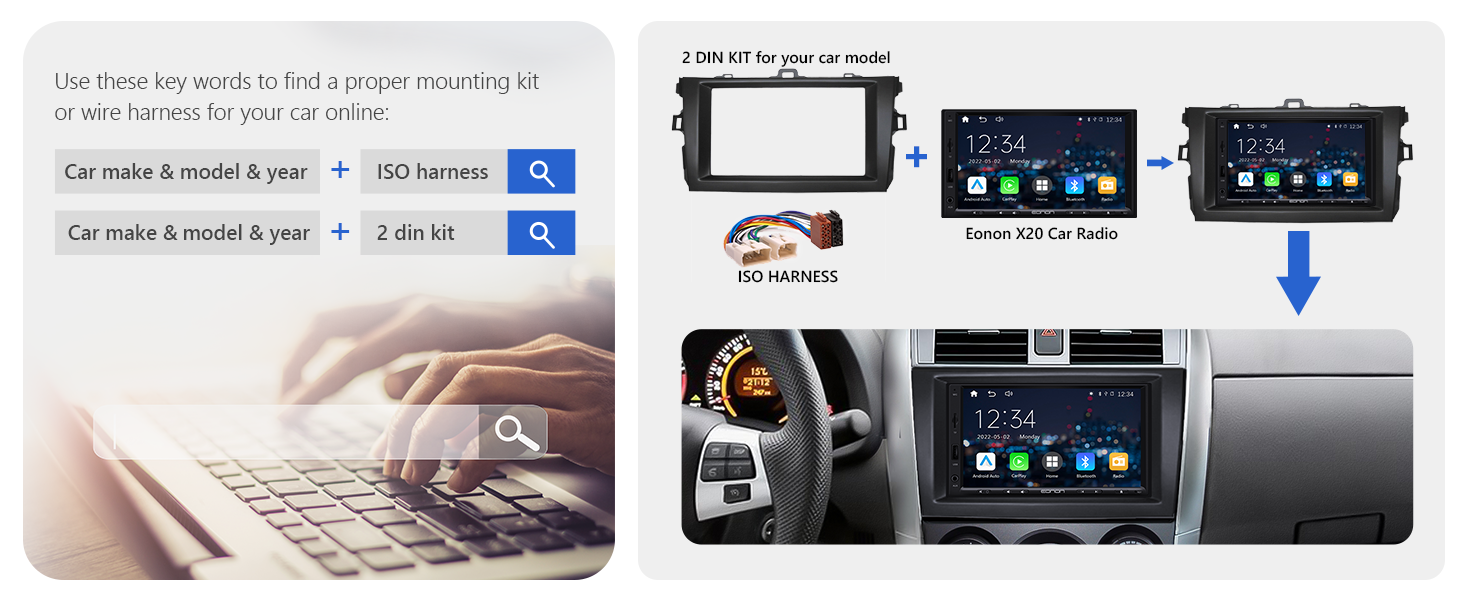

Applicable Models : ISO 2 DIN Size

The panel is removable: it sizes from 178*100 to 172*97mm.; Note: Please confirm the installation size of the center console before making a purchase.

System Information : Model: X20; System: Linux; CPU: TH2901; Language: English, French, German, Chinese, Japanese etc.

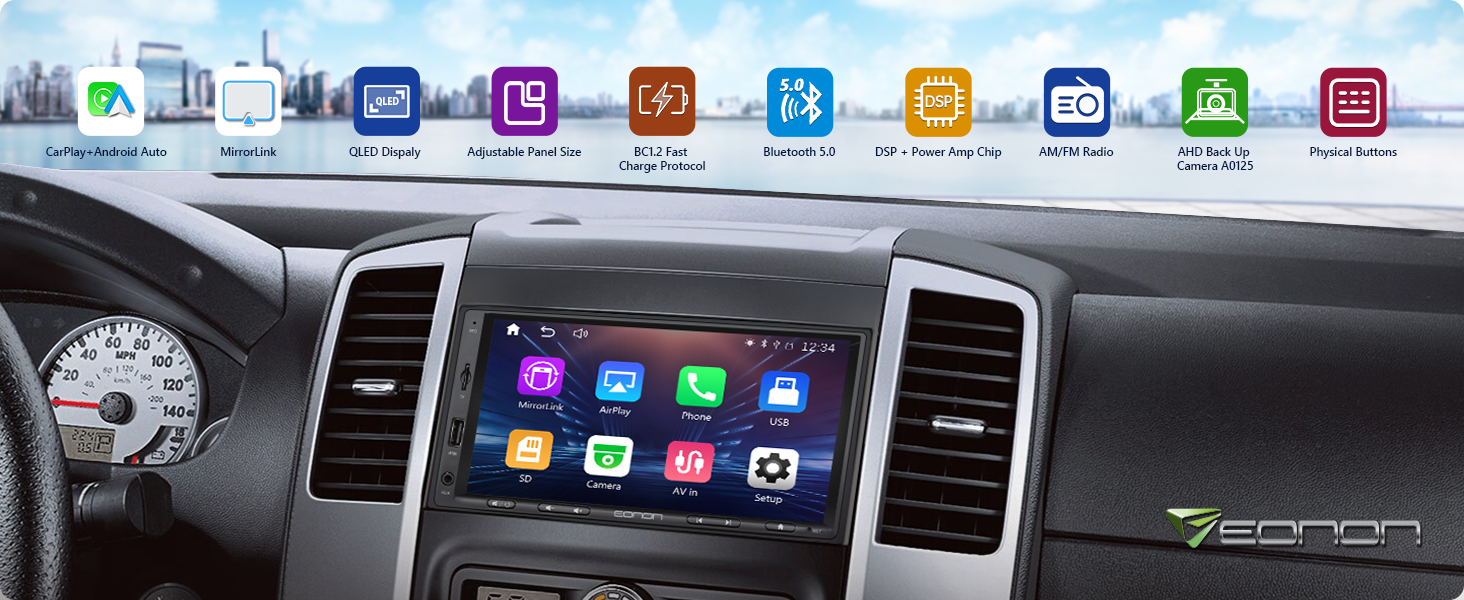

Features : -Physical buttons; -BC1.2 fast charge; -Built-in DSP; -Wired & Wireless Android Auto and CarPlay; -Screen mirroring; -Bluetooth 5.0; -Support radio app; – Support flash drive and MicroSD card; -Support 720P AHD backup camera; -Support front camera; -Support video input & video output; -Support AUX audio input; -Support changing the color of the buttons; -Support steering wheel controls; -Support changing the wallpaper;

Radio : 30 preset radio stations (18FM, 12AM)

USB/MicroSD : 1 USB slot (USB2.0), 1 MicroSD card slot; Support USB flash drive and MicroSD card.; Video formats: Support AVI, MKV, MP4, WMV, RMVB, MPG, etc. Support 1080P videos.;

Audio formats: Support MP3, WMA, WAV, OGG, FLAC, etc.; Picture formats: Support JPEG, BMP, PNG, etc.

Parameter : Operating voltage: DC12V; Maximum operating current: Less than or equal to10A; Gross weight: 1.3kg; Net weight: 0.8kg; Installation size: 178mm(Width) * 95mm(Depth) * 100mm(Height); Panel size: 178mm(Width) * 100mm(Height) / 172mm(Width) * 97mm(Height)

Installation Tips :

1. Change the language : Setup—> System —> Language; 2. Change the wallpaper : Setup—> System—>Wallpaper

3. Adjust the brightness of the screen : Setup—> System —> Panel—>Dimmer; 4. Set the Date and Time : Setup—> Date&Time

5. Reset the machine : Setup—>system —>Factory Reset

6. Check system info : Setup—> system —> About

7. Select the radio zone : Setup—> system —>Radio Area

8. Adjust the reversing volume : Setup—> Reverse —>Reversing Mute

9. Adjust the reversing Guidance Line : setup—> system —>Develoer options PIN 1234 —>option–>Reversing Guidance Line

10. Change Button Light Color: Setup—> system —>Keylight

11. Turn on the Button Light : Setup—> system —>Developer—PIN 1234–>Option—>ILL by LED

12. Factory set password : 1234
