Multimeter Kit – Digital Multimeter Voltage Current

With Bonus Items

This Digital Multimeter comes with the following added items:

• ✓ Mini Wire Stripper Tool
• ✓ Mini Screwdriver “-”
• ✓ Mini Screwdriver “+”
• ✓ Insulating Tape (Black）
• ✓ Mini Crocodile Cable 30 cm (Black)
• ✓ Mini Crocodile Cable 30 cm (Red)

This Digital Multimeter is Capable of:

• measuring resistance from 0 ohms to 2 M ohms with the following resistance measuring scales of 200 ohms, 2 k ohms, 20 k ohms, 200k ohms, 2 M ohms
• measuring DCvoltages from 0 to 600 V with the following DCvoltage measurement scales of 200 mV, 2 V, 20 V, 200 V, 600 V
• measuring ACvoltages from 0 to 600 V with its 2 ACvoltage measurement scales of 200 V and 600 V
• measuring DCcurrent from 0 to 10 A with the current measurement scales of 2 mA, 20 mA, 200 mA, 10 A

• ✓ Max display: 1999, 3 1/2 digits, automatic polarity display
• ✓ Sampling rate: about 3 times per second
• ✓ Overload display: “1”
• ✓ Low battery indicator
• ✓ Working environment: (0~40) °C, relative humidity < 80%
• ✓ Power: 3 V (batteries are included)
• ✓ Accuracy: ± (reading % + the least significant digits)
• ✓ Ambient temperature: (23±5) °C, relative humidity < 75%

Battery Quality Test

• This multimeter is capable of measuring battery quality for 1.5V and 9V batteries by measuring the amount of current it can provide.

Continuity Test

• Connect the test leads to two points on the circuit being tested.

Voltage Measurement

1. Insert the black probe to “COM” and the red probe to “V/Ω”
2. For ACVoltage measurement, put the range switch to the corresponding ACV range and then put the test probes to the source to be measured. e polarity will be shown on the display.
3. For DCVoltage measurement, put the range switch to the corresponding DCV range and then put the test probes to the source to be measured.

Resistance Measurement

• Put the range switch to the corresponding resistor range and connect the two test probes to the element you want to measure.

ACcurrent and DCcurrent

1. Insert the black probe to “COM”. The red probe can be inserted to “V/Ω” for measuring up to 200 mA, or insert the red probe to “10 A” for a maximum 10 A measurement
2. Put the range switch to the corresponding DCA range and then put the multimeter (the 2 probes) in series with the part of the circuit that you want to measure how much current it draws.

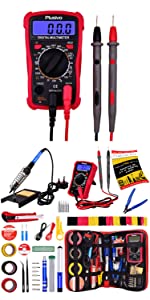

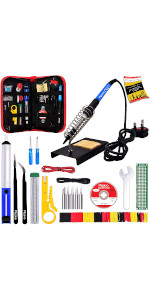

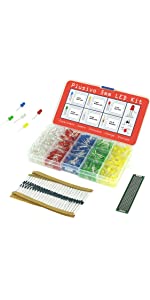

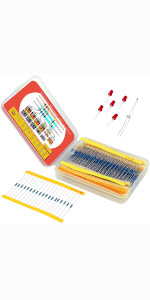

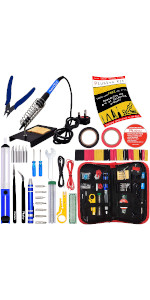

Soldering Iron With Stand and Soldering Iron Tip Set	Soldering iron with mini stand and soldering iron tip set (2 pieces)	✓	✓	✓	500 pcs. 5mm Red, green, yellow, blue and white LEDs	30 commonly used resistance values, 20 pieces each value:
Tin Wire Solder Tube,Tweezers,Mini Wire Stripper,Desoldering Pump, Wires, Mini PCB, screwdrivers	Soldering frame made of tin wire, curved tweezers, mini wire stripper, desoldering pump, wires, mini screwdriver	✓	✓	✓	100 pieces. 220 Ω resistors and 1 piece. 2x8cm prototype board.	Bonus 5 red LEDs for DIY light projects, A photoresistor that can measure light intensity, A thermistor that changes resistance with temperature
Multimeter			✓
Diagonal Cutter			✓	✓
Soldering Wick		✓	✓
Heatshrink Tubes	✓		✓	✓
Soldering Paste			✓	✓
Multi-purpose screwdriver			✓	✓
Cutter			✓
Ebook (downloadable) : Mastering the art of soldering		✓	✓	✓

Heatshrink Tubes	✓	✓	✓	✓	✓	✓
Strand Diameter	0.08 mm	0.08 mm	0.08 mm	0.08 mm	0.08 mm	0.08 mm

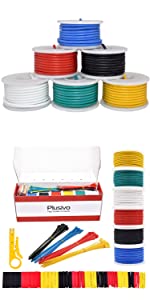

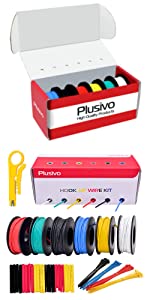

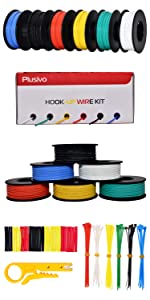

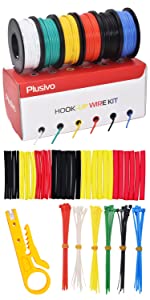

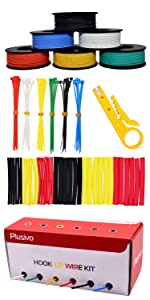

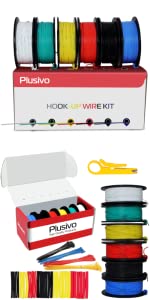

Conductor Size / Number	18AWG / 150 strands	24AWG / 40 pcs	20AWG / 100 pcs	20AWG / fixed 1 × 0.65 ± 0.008mm2	22AWG / 60 pcs	22AWG / Solid 1×0.65±0.008mm²
Rated Voltage	600V	600V	600V	600V	600V	600V
Packaging	6 different colored 5-meter (16 feet) spools	6 different colored 9-meter (30 feet) spools	6 different colored 7-meter (23 feet) spools	6 different colored 7-meter (23 feet) spools	6 different colored 7-meter (23 feet) spools	6 different colored 10-meter (33 feet) spools
Insulation Material	Silicone	Silicone	Silicone	PVC (Polyvinylchloride)	Silicone	PVC (Polyvinylchloride)
Application	Model airplanes, RC toys, Remote Control, Electronic, Battery Cable, drones, DIY, etc	Model airplanes, RC toys, Remote Control, Electronic, Battery Cable, drones, DIY, etc	Model airplanes, RC toys, Remote Control, Electronic, Battery Cable, drones, DIY, etc	Ideal for frequent movements, such as B. the wiring of robot arms.	Model airplanes, RC toys, Remote Control, Electronic, Battery Cable, drones, DIY, etc	Ideal for frequent movements, such as B. the wiring of robot arms.
